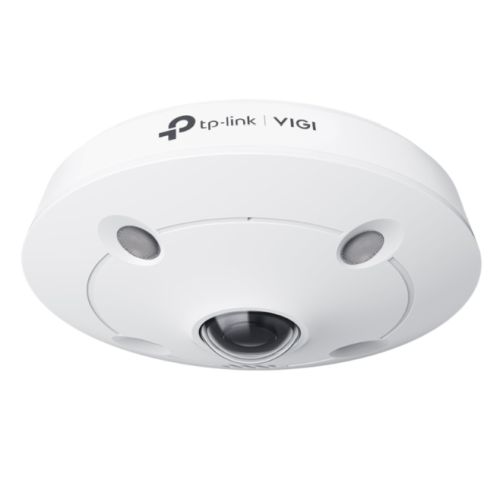

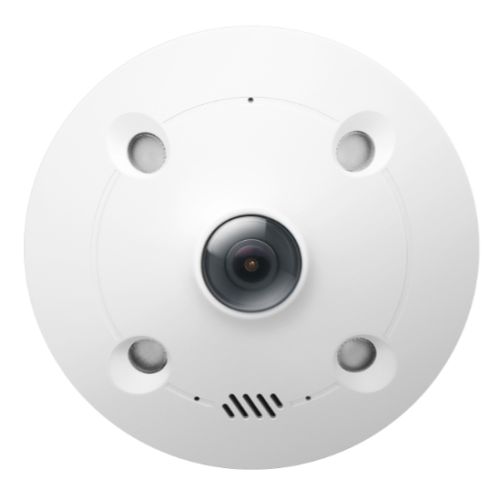

TP-LINK (InSight S655I) IR Fisheye Network Camera, 360° Coverage, Multiple Display Modes and ePTZ, Smart Detection, IP67, Two-Way Audio

+ click images to enlarge

Stock Code

WCA-INSIGHTTPS655I

Manufacturer

TP-LINK

Manufacturer Code

INSIGHT S655I

EAN Number

1210002610209

Printable Version

15 Available

You must be logged in to view pricing and place orders

Suitable for Outdoor

Yes

Wired/Wireless

Wired

Interface(s)

1 x RJ45 10/100M Self-Adaptive Ethernet Port, PoE
DC Power Port

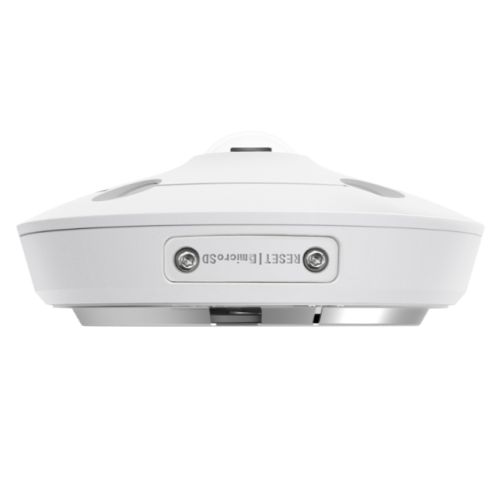

Built-In Memory Card Slot, Support MicroSD Card, up to 512GB

Image Sensor

1/2.7" Progressive Scan CMOS

Resolution

Main Stream:
2560x1920, 2256x1696, 2048x1536, 1280x960

Sub-Stream:
640x480, 320x240

Frame Rate

Main Stream:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Sub-Stream:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If WDR is on, the frame rate only supports up to 15fps.

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264

Lens

Type: Fixed Focal Lens

Focal Length: 1.44 mm

Aperture: F2.0

Lens Mount: M12*P0.5

DORI Distance:
Detect: 28.8 m (94 ft)
Observe:12 m (39 ft)
Recognize: 5.7 m (19 ft)
Identify: 2.8 m (9 ft)

Viewing Angle

Horizontal FOV: 180°
Vertical FOV: 180°
Diagonal FOV:180°

Pan/Tilt/Rotation

Day/Night Mechanism

IR Cut Filter
Day/Night Switch: Unified/ Scheduled/ Auto

IR LED:
Quantity: 4
Range: 10 m
Wavelength: 850 nm

Minimum Illumination

Colour: 0.01 Lux; 0 Lux with IR light

Image Settings

Brightness
Contrast
Saturation
Sharpness
Exposure
WDR,
White Balance
Prevent Overexposure to Infrared Light
HLC Adjustable by Client Software

Audio Features

Audio Communication: Two-Way Audio
Audio Input: Yes
Audio Output: Yes
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps (G.711 alaw)

Alarm & Event Management

Smart Event Detection:
Intrusion, Line-Crossing, Region Entering, Region Exiting, Abnormal Sound

Basic Event:
Motion Detection, Video Tampering Detection, Exception (Illegal Login)

Alarm Linkage:
Memory Card Video Recording, Message Push, Audible Warning, Email Alarm, Upload Capture to FTP

Network

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

ONVIF: Yes

API: Open Network Video Interface (Profile S/T/G)

Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

Client: Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS

Cloud: Yes

Wireless Features

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Management

VIGI App

Power Supply

12V DC ± 5%, Max. 11.76 W, 5.5mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 12.14W

Additional Features

Multiple Display Modes and ePTZ
Ceiling Mount; Wall Mount; Pendant Mount
IK10 Vandal Proof
Material: Metal

See Overview for more features

Weight/Dimensions

0.44 Kg ( without Mounting Accessories)
0.48 Kg ( with Mounting Accessories)
132 x 132 x 56 mm

Environment

IP67 Weatherproof
Operating Temperature: -30–60 °C
Storage Temperature: -40–60 °C
Storage Humidity: 95% or Less (Non-Condensing)
Operating Humidity: 95% or Less (Non-Condensing)

Package Contents

VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories

Package Weight

1.4600 kg

Warranty

5 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
