TP-LINK (InSight S345-4G) VIGI 4MP Outdoor Full-Colour 4G Bullet Network Camera w/ 4mm Lens, 4G Mobile Networking, 3x LAN, AI Detection/Classification, Two-Way Audio

+ click images to enlarge

Stock Code

WCA-INSIGHTTPS345-4G-4MM

Manufacturer

TP-LINK

Manufacturer Code

INSIGHT S345-4G(4MM)

EAN Number

1210002619516

Printable Version

4 Available

You must be logged in to view pricing and place orders

Suitable for Outdoor

Yes

Wired/Wireless

Interface(s)

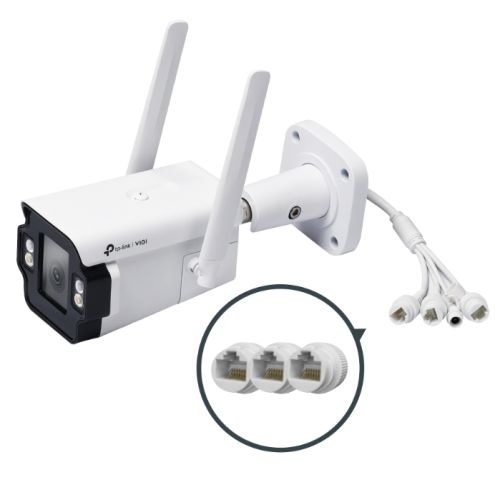

3 x RJ45 10/100M LAN Ports
DC Power Port
Memory Card Slot (MicroSD Card up to 512GB)

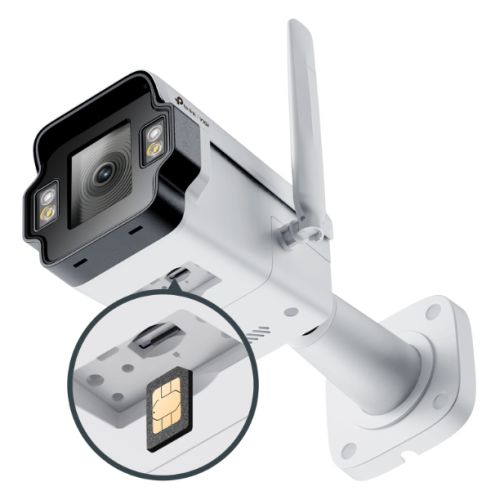

Built-in Nano-SIM Card Slot

Image Sensor

1/2.7” Progressive Scan CMOS

Resolution

Main Stream:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Stream:
848x480, 704x576, 640x480, 640x360, 352x288, 320x240

Frame Rate

Main Stream:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Sub-Stream:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps

Video Compression

Main Stream:
H.265+/H.265/H.264+/H.264

Sub-Stream:
H.265/H.264

Lens

4mm Fixed Focal Lens
Lens Mount: M12
Aperture: F1.6

DORI Distance:
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

Viewing Angle

Horizontal FOV: 80.4°
Vertical FOV: 41.8°
Diagonal FOV: 98.7°

Pan/Tilt/Rotation

Pan: 0° to 360°
Tilt: 0° to 90°
Rotation: 0° to 360°

Day/Night Mechanism

IR Cut Filter
Day/Night Switch: Unified/ Scheduled/ Auto

IR Working Distance

IR LED Quantity: 2
Range: 50m
Wavelength: 850nm

Minimum Illumination

0.005 Lux; 0 Lux with IR/White Light

Video Streaming

Main Stream
Sub-Stream

Image Settings

Mirror
Brightness
Contrast
Saturation
Sharpness
Exposure
WDR
White Balance
Prevent Overexposure to Infrared Light

Audio Features

Two-Way Audio
Built-in Microphone
Built-in Speaker
Audio Compression
Audio Sampling Rate: 8KHz
Environment Noise Filtering
Audio Bit Rate: 64 Kbps(G.711 alaw)

Alarm & Event Management

Smart Event Detection:
Intrusion, Line-Crossing, Region Entering, Region Exiting, Object Abandoned, Object Removal, Loitering, People, Vehicle, Abnormal Sound, Scene Change

Basic Event:
Motion
Video Tampering
Exception (Illegal Login)

Alarm Linkage:
Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing, Upload to FTP, Send to Alarm Server, Email Alarm

Network

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP

ONVIF: Yes

API: Open Network Video Interface (Profile S/G/T)

Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

Cloud: Yes

Wireless Features

4G:
Standard: LTE-TDD/LTE-FDD/WCDMA
Nano SIM
Category: 4
Uplink: 50 Mbps, Downlink: 150 Mbps

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Management

VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client

Power Supply

12V DC/1 A, 5.5 mm Coaxial Power Plug

Additional Features

See Overview

Weight/Dimensions

1.09 kg

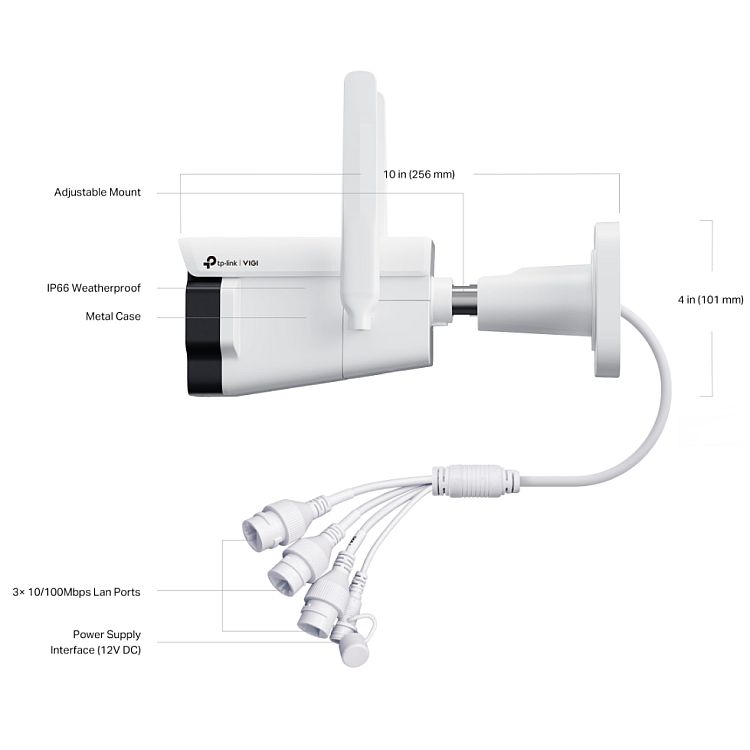

(LxWxH) 256 x 122 x 101 mm (excluding antennas)

Environment

IP66 Waterproof
Operating Temperature: -30–60 °C
Storage Temperature: -40–60 °C
Operating Humidity: 95% or Less (Non-Condensing)
Storage Humidity: 95% or Less (Non-Condensing)

Package Contents

VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Power Adapter

Package Weight

1.5800 kg

Warranty

5 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
