CCTV / Security > NVRs
TP-LINK (VIGI NVR4064H) 64-Channel NVR, No HDD (Max 64TB), 64-Channel Live View, 4K HDMI Video Output, Remote Monitoring, H.265+
+ click images to enlarge
Stock Code
VID-VIGITPNVR4064H
Manufacturer
Manufacturer Code
VIGI NVR4064H
EAN Number
1210002608763
Out of Stock: Pre-Order Only
You must be logged in to view pricing and place orders
Access Camera Number
64
Incoming/Outgoing Bandwidth
Incoming Bandwidth:
Default: 260Mbps
Extended Bandwidth Mode: 320Mbps
Outgoing Bandwidth:
Default: 180Mbps
Extended Bandwidth Mode: 320Mbps
Default: 260Mbps
Extended Bandwidth Mode: 320Mbps
Outgoing Bandwidth:
Default: 180Mbps
Extended Bandwidth Mode: 320Mbps
Network
Protocol: UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access: Android, iOS
Web Browser: Chrome (57+), Firefox (52+), Edge (91+)
Interoperability: ONVIF Profile S, CGI
Mobile Phone Access: Android, iOS
Web Browser: Chrome (57+), Firefox (52+), Edge (91+)
Interoperability: ONVIF Profile S, CGI

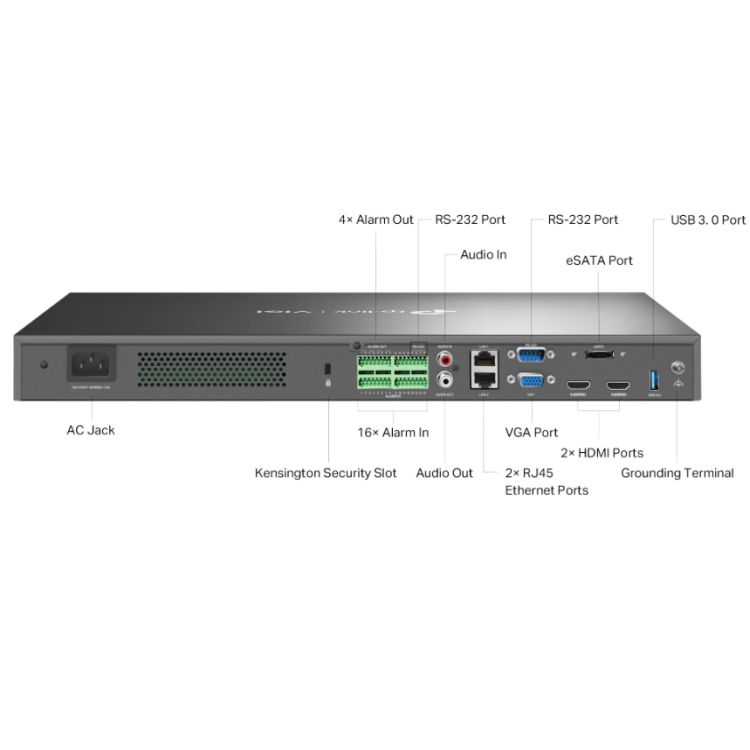

Interface(s)
2 x RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
2 x Front USB 2.0, 1 x Rear USB 3.0
Audio Interface: 1-ch RCA Input; 1-ch RCA Output
Alarm In/Out: 16/4
1 x Serial RS232
Power: 1 x AC Jack
1 x eSATA
2 x HDMI
1 x VGA
2 x Front USB 2.0, 1 x Rear USB 3.0
Audio Interface: 1-ch RCA Input; 1-ch RCA Output
Alarm In/Out: 16/4
1 x Serial RS232
Power: 1 x AC Jack
1 x eSATA
2 x HDMI
1 x VGA
Video Input/Output
IP Video Input:
64-Channel
Video Output:
HDMI1/HDMI2 Independent output
HDMI1/VGA Independent output
64-Channel
Video Output:
HDMI1/HDMI2 Independent output
HDMI1/VGA Independent output
Decoding
Audio Compression:
G.711A/G.711U/G.726
Video Compression:
H.265+/H.265/ H.264+/H.264
Record Resolution:
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback:
16-Channel
Capability:
25fps: 16-ch@2MP, 32-ch@720P, 64-ch@D1
30fps: 4-ch@8MP, 6-ch@5MP, 8-ch@4MP
G.711A/G.711U/G.726
Video Compression:
H.265+/H.265/ H.264+/H.264
Record Resolution:
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback:
16-Channel
Capability:
25fps: 16-ch@2MP, 32-ch@720P, 64-ch@D1
30fps: 4-ch@8MP, 6-ch@5MP, 8-ch@4MP

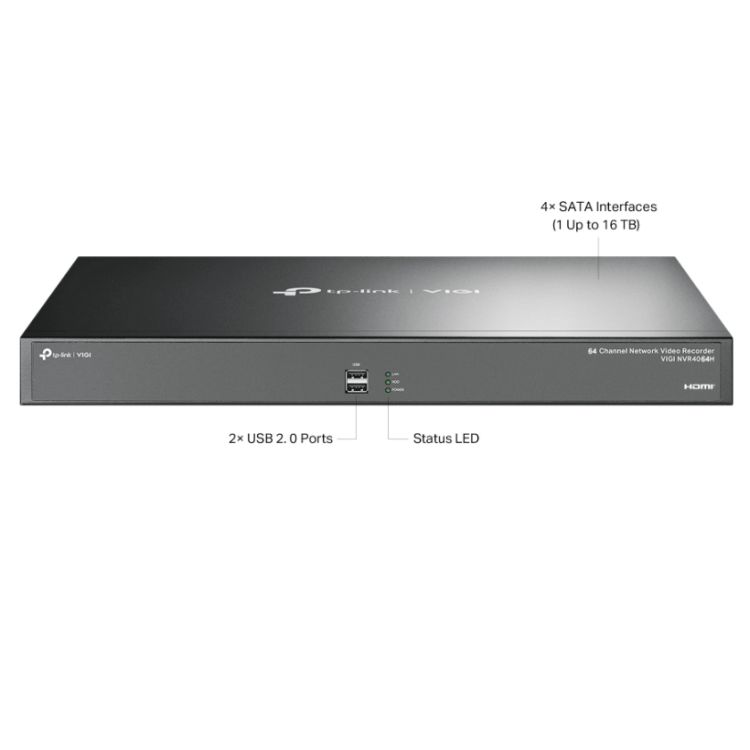

HDD
4 x SATA Interfaces
Up to 16 TB Capacity for Each HDD
Up to 16 TB Capacity for Each HDD
PoE
-
Power Supply
100-240 VAC, 50 to 60Hz, 1.5A
Power Consumption
6.95 W (Without Disk)
48.38 W (With Disk)
48.38 W (With Disk)
Record Management
Record Mode:
Manual Recording, Scheduling Recording, Motion Detection Recording
Playback Mode:
Instant Playback, Regular Playback, Tag Playback, Event Playback
Backup Mode:
Regular Backup, Video Clip Backup
Playback Function:
Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
Manual Recording, Scheduling Recording, Motion Detection Recording
Playback Mode:
Instant Playback, Regular Playback, Tag Playback, Event Playback
Backup Mode:
Regular Backup, Video Clip Backup
Playback Function:
Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
Alarm
General Alarm:
Motion, Video Tampering, Scene Change, Line-Crossing, Intrusion, Region Entering, Region Exiting, Loitering, Object Abandoned/Removal, Vehicle, Human, Abnormal Sound, Smart Frame
Anomaly Alarm:
Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception
Alarm Linkage:
Recording, White Light Alarm, Buzzer, Log, Audible Alarm
Motion, Video Tampering, Scene Change, Line-Crossing, Intrusion, Region Entering, Region Exiting, Loitering, Object Abandoned/Removal, Vehicle, Human, Abnormal Sound, Smart Frame
Anomaly Alarm:
Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception
Alarm Linkage:
Recording, White Light Alarm, Buzzer, Log, Audible Alarm
Weight/Dimensions
4.0 kg
(WxDxH) 440 x 330 x 44 mm
(WxDxH) 440 x 330 x 44 mm
Environment
Storage Temperature: -40–70 °C
Storage Humidity: 10%~90% RH Non-Condensing
Working Temperature: NVR: -10–55 °C
Working Humidity: 10%~90% RH Non-Condensing
Storage Humidity: 10%~90% RH Non-Condensing
Working Temperature: NVR: -10–55 °C
Working Humidity: 10%~90% RH Non-Condensing
Package Contents
VIGI Network Video Recorder
Mouse
Installation Guide
Power Cord
HDD Power Cables
HDD Data Cables
Terminal Blocks
Mounting Brackets
Screws
Rubber Feet
Mouse
Installation Guide
Power Cord
HDD Power Cables
HDD Data Cables
Terminal Blocks
Mounting Brackets
Screws
Rubber Feet
Additional Features
See Overview
Package Weight
5.6500 kg
Warranty
5 Years
Full Box Quantity
2
Manufacturer Link
