Peripherals > UPS

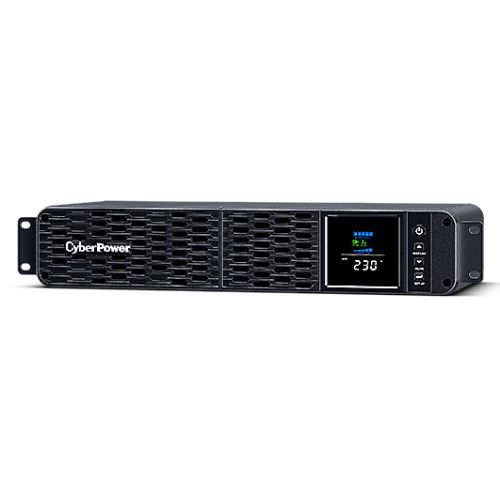

CyberPower Advanced PFC Sinewave 2U Rackmount 1600VA UPS, 1000W, Colour LCD, 8x IEC C13, USB, Hot-swappable Batteries

+ click images to enlarge

Stock Code

UPS1600VAPFCS2URACKCP

Manufacturer

CYBERPOWER

Manufacturer Code

CP1600EIPFCRM2U

EAN Number

4711027798240

Printable Version

Out of Stock: ETA 04/09/2025

You must be logged in to view pricing and place orders

Type

Rackmountable UPS

UPS Topology

Line-interactive

Maximum Capacity

1600VA / 1000W

Battery Type

Sealed Lead-acid

Typical Protection

Surge Suppression: 900 Joules
EMI/RFI Filtration
Network Protection RJ45: 1-in, 1-out

Inversion

Pure Sine Wave

Battery Protection

Automatic Voltage Regulation (AVR): Single Boost
Overload Protection: Internal Current Limiting, Circuit Breaker

Input Voltage

Nominal Input Voltage: 230 Vac
Input Voltage Range: 169 ~ 271 Vac

Output Voltage

230 ± 5% Vac

Recharge Time

8 Hours (Recover to 90% after full load discharge)

Runtime

at Half Load: 10.4 minutes
at Full Load: 2.5 minutes

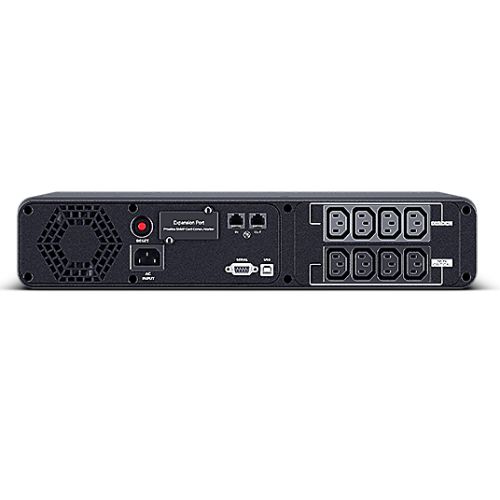

Interfaces

8 x IEC C13
RJ45
Serial Port
USB

Visual Indicators

Colour LCD Panel:

LCD Information Display:
Power Status, Battery Status, Load Status, Fault & Warning

LCD Setting & Control:
Alarm Setting, Input & Output

LED Indicators:
Power On

Audible Indicators

Alarms:
Battery Mode, Low Battery, Overload, UPS Fault

Environment

Operating Temperature: 32 ~ 104 °F
Operating Temperature: 0 ~ 40 °C
Operating Relative Humidity (Non-condensing): 0 ~ 95 %
Operating Elevation: 0-9,843 feet (0-3,000 meters)
Storage Temperature: 5 ~ 113 °F
Storage Temperature: -15 ~ 45 °C
Storage Relative Humidity (Non-condensing): 0 ~ 95%
Storage Elevation: 0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation: 17.1 BTU/hr

Dimensions

(WxHxD) 433 x 86 x 274 mm

Weight

12.56 kg

Software

PowerPanel Business (Recommended)

Additional Features

See Overview

Accessories

Rackmount Ears
Power Cord
USB Cable
User Manual
Function Setup Guide

Package Type

Retail

Package Weight

13.9200 kg

Warranty

2 Years - direct with CyberPower

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
