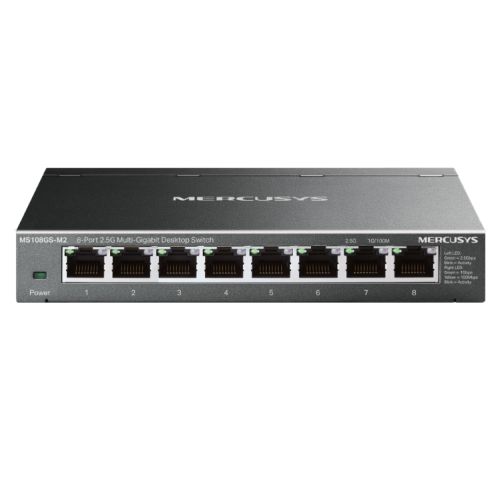

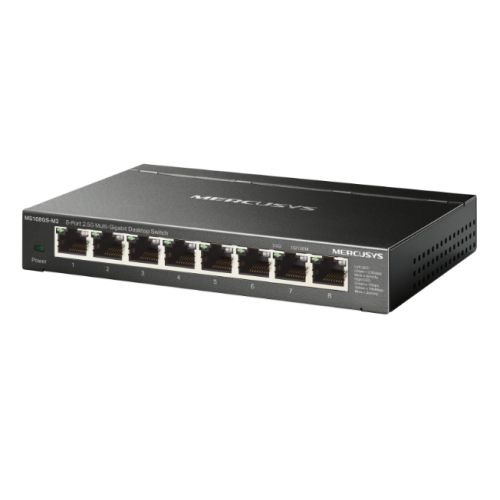

Mercusys (MS108GS-M2) 8-Port 2.5G Multi-Gigabit Desktop Switch, 8x 2.5G Ports, Fanless, Metal Casing
+ click images to enlarge


Stock Code
SWI-8MER2.5G-MGB
Manufacturer
MERCUSYS
Manufacturer Code
MS108GS-M2
EAN Number
6957939004880
Printable Version
Out of Stock: call for information
You must be logged in to view pricing and place orders
Rackmountable
No
Managed
No
Number of Ports
8
Max RJ45 Transfer Rate
2.5 Gbps
Interface(s)
8 x 100Mbps/1Gbps/2.5Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
PoE Ports (RJ45)
-
Standards and Protocols
IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
Switching Capacity
40 Gbps
LED
Power
Link/Act Indicators
Power Supply
External Power Adapter (Output: 12 VDC / 1.0 A)
Max Power Consumption: 8.87 W
Dimensions
158 x 101 x 25.4 mm
Transfer Method
Store and Forward
Mac Address Table
4K
Packet Forwarding Rate
29.8 Mpps
Jumbo Frame
12KB
Additional Features
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping
Fanless
Metal Casing
Environment
Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Package Contents
8-Port 2.5G Multi-Gigabit Desktop Switch MS108GS-M2
Power Adapter
Installation Guide
Rubber Feet
Package Type
Retail
Package Weight
0.7900 kg
Warranty
3 Years
Full Box Quantity
16
Manufacturer Link
Click here for more details from the manufacturer
