Networking > Switches

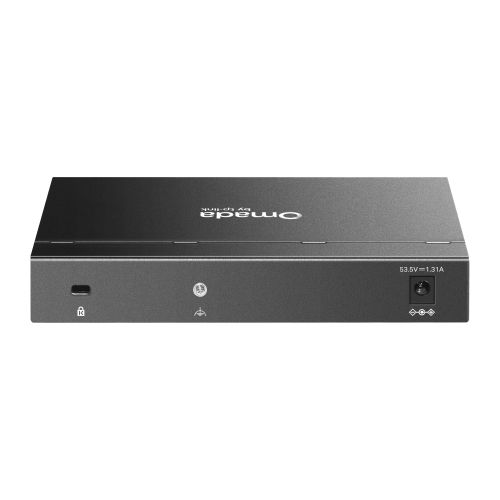

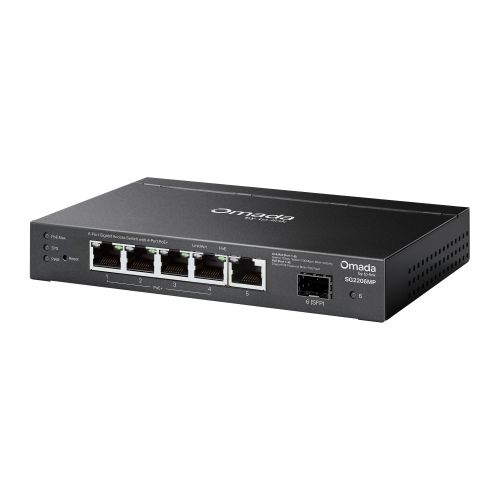

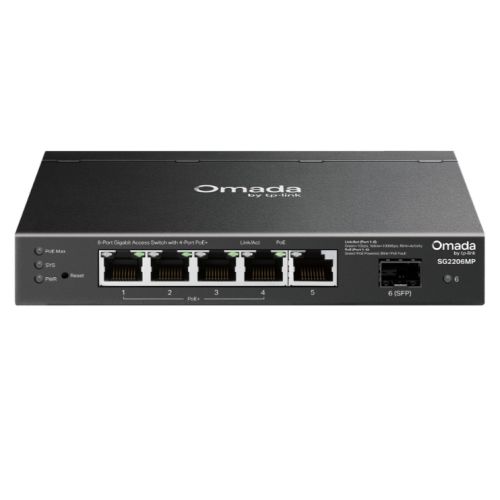

TP-LINK (SG2206MP) Omada Access 6-Port Gigabit Switch with 4-Port PoE+, 5x GB RJ45, 1x GB SFP, Centralized Management, Metal Casing
+ click images to enlarge
Stock Code
SWI-6TPOMAAGBSMAPOE
Manufacturer
Manufacturer Code
SG2206MP
EAN Number
1210002602419
Out of Stock: call for information
You must be logged in to view pricing and place orders
Rackmountable
No
Managed
Smart
Number of Ports
6
Max RJ45 Transfer Rate
10/100/1000 Mbps
Interface(s)
4 x10/100/1000 Mbps PoE+ RJ45
1 x 10/100/1000 Mbps RJ45
1 x Gigabit SFP
1 x 10/100/1000 Mbps RJ45
1 x Gigabit SFP
PoE Ports (RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 4 Ports
PoE Power Budget: 63 W*
Fast PoE
Perpetual PoE
PoE+ Ports: 4 Ports
PoE Power Budget: 63 W*
Fast PoE
Perpetual PoE
Switching Capacity
12 Gbps
Power Supply
53.5 VDC / 1.31 A
Dimensions
158 x 100.7 x 25.4 mm
Mac Address Table
8K
Packet Forwarding Rate
8.93 Mpps
Jumbo Frame
9 KB
Additional Features
Durable metal casing
Desktop/wall mounting design
Physical security lock
Desktop/wall mounting design
Physical security lock
Quality of Service
802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Storm Control
8 priority queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Storm Control
Layer Features
L2 and L2+ Features:
16 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 32 IPv4/IPv6 Static Routes
DHCP Server
DHCP Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED
Spanning Tree
16 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 32 IPv4/IPv6 Static Routes
DHCP Server
DHCP Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED
Spanning Tree
L2 Multicast:
511 IPv4, IPv6 shared multicast groups
IGMP Snooping
Multicast VLAN Registration (MVR)
Multicast Filtering
Limited IP Multicast (256 profiles and 16 entries per profile)
511 IPv4, IPv6 shared multicast groups
IGMP Snooping
Multicast VLAN Registration (MVR)
Multicast Filtering
Limited IP Multicast (256 profiles and 16 entries per profile)
VLAN
VLAN Group
802.1Q tag VLAN
MAC VLAN: 16 Entries
Protocol VLAN
GVRP
Voice VLAN
802.1Q tag VLAN
MAC VLAN: 16 Entries
Protocol VLAN
GVRP
Voice VLAN
Access Control
Support up to 230 entries
Time-Range
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation: Permit/Deny
Policy Action
ACL Rules Binding
Time-Range
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation: Permit/Deny
Policy Action
ACL Rules Binding
Security
IP-MAC-Port Binding
AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
DHCP Filter
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control
AAA
802.1X
IP/IPv6-MAC Binding
IP Source Guard
IPv6 Source Guard
DoS Defend
DHCP Filter
Static/Dynamic/Permanent Port Security
Broadcast/Multicast/Unicast Storm Control
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control
Management
Omada App
Centralized Management
Cloud Access
Zero-Touch Provisioning
Management Features:
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
IEEE 802.1az Energy Efficient Ethernet
SNTP
System Log
DDM
OAM
Centralized Management
Cloud Access
Zero-Touch Provisioning
Management Features:
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
IEEE 802.1az Energy Efficient Ethernet
SNTP
System Log
DDM
OAM
Environment
Operating Temperature: -5°C ~40°C
Storage Temperature: -40°C ~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Storage Temperature: -40°C ~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Contents
SG2206MP
Power Adapter
Power Cord
Rackmount Kit
Rubber Feet
Installation Guide
Power Adapter
Power Cord
Rackmount Kit
Rubber Feet
Installation Guide
Package Type
Retail
Package Weight
1.0200 kg
Warranty
Limited Lifetime
Full Box Quantity
6
Manufacturer Link
