TP-LINK (SG5452XMPP) Omada 48-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4x 10G Slots, Rackmountable

+ click images to enlarge

Stock Code

SWI-48TPOMAL3XPOEP-GB

Manufacturer

TP-LINK

Manufacturer Code

SG5452XMPP

EAN Number

1210002611169

Printable Version

1 Available

You must be logged in to view pricing and place orders

Rackmountable

Yes

Managed

Yes

Number of Ports

Max RJ45 Transfer Rate

10/100/1000 Mbps

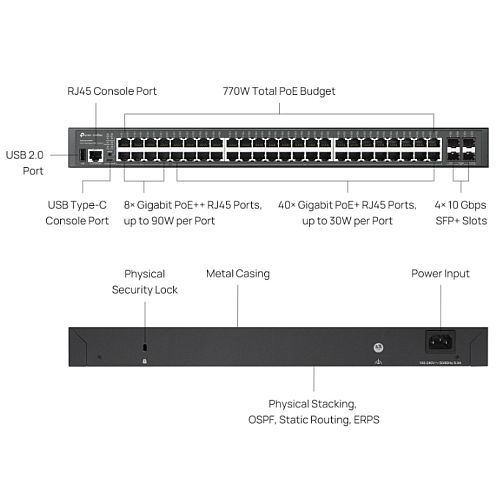

Interface(s)

48 x 10/100/1000 Mbps RJ45 Ports (8x PoE++, 40× PoE+)
4 x 1/10 Gbps SFP+ Slots
1 x USB 2.0 Port
1 x RJ45 Console Port
1 x USB Type-C Console Port

PoE Ports (RJ45)

Standard: 802.3af/at/bt compliant
PoE++ Ports: Ports 1~8 (up to 90W per Port)
PoE+ Ports: Ports 9~48 (up to 30W per Port)
Power Budget: 770W
Fast PoE
Perpetual PoE

Switching Capacity

176 Gbps per Unit

Power Supply

100-240 V~ 50/60 Hz

Max. Power Consumption:
893.6 W (220V/50Hz) ( with 770 W PD connected @ 25 °C)
942.7 W (110V/60Hz) ( with 770 W PD connected @ 25 °C)

Dimensions

(WxDxH) 440 x 330 x 44 mm

Mac Address Table

16 K

Packet Forwarding Rate

130.94 Mpps

Jumbo Frame

9 KB

Additional Features

Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule

ISP Features:
802.3ah Ethernet Link OAM
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
DDM
sFlow

Quality of Service

Class of Service
Bandwidth Control
Voice VLAN
User-Defined OUI
Smoother Performance
Action for Flows

Layer Features

L3 Features:
IPv4: Max 128, IPv6: Max 128
Static Routing
Host Route Table: Max 1,024 entries
RIP: Version v1/v2, Max 1,796
OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450
Static ARP: 512 static entries
Dynamic ARP: 2,000 dynamic entries
Proxy ARP
DHCP Server
DHCP Relay

L2 and L2+ Features:
Link Aggregation
Spanning Tree Protocol
Port-based and VLAN-based Loopback Detection
802.3x Flow Control
ERPS
Mirroring
RSPAN
MAC Address Table
Multicast

VLAN

Max 4K VLAN Group (802.1q VLAN)
802.1Q Tagged VLAN
MAC VLAN Entries: 60
Multicast VLAN
Management VLAN
VLAN VPN (QinQ): Max 256 entries
GVRP
Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
Voice VLAN
Private VLAN

Security

Port Isolation
CPU-Defend
ARP Inspection (Dynamic ARP Inspection)
DoS Defend
IP-MAC-Port Binding
IPv6-MAC
DHCP Filter
Static/Dynamic Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
802.1X
AAA (including TACACS+)
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv2
IP/Port/MAC-based access control

Management

Omada App
Centralized Management
Cloud Access
Zero-Touch Provisioning

Management Features:
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP Auto Install
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
Password Recovery
SNTP
System Log
IEEE 802.3az Energy Efficient Ethernet (EEE)

Environment

Operating Temperature: -5–40°C
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents

SG5452XMPP Switch
Power Cord
Console Cable
Rackmount Kits
Rubber Feet
Quick Installation Guide

Package Type

Retail

Package Weight

6.8700 kg

Warranty

Limited Lifetime
