Networking > Switches

TP-LINK (ES228GMP) Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+, 2x GB SFP Ports, 384W Power Budget, Rackmountable

+ click images to enlarge

Stock Code

SWI-28TPOMAGBEASYPOE

Manufacturer

TP-LINK

Manufacturer Code

ES228GMP

EAN Number

1210002600996

Printable Version

4 Available

You must be logged in to view pricing and place orders

Rackmountable

Yes

Managed

Yes

Number of Ports

Max RJ45 Transfer Rate

10/100/1000 Mbps

Interface(s)

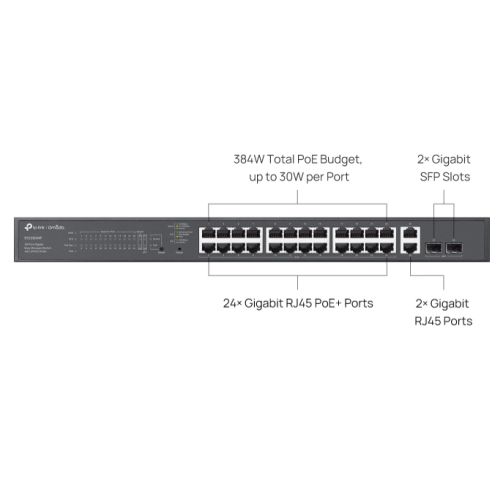

24 x10/100/1000 Mbps PoE+ RJ45 (802.3af PoE and 802.3at PoE+)
2 x10/100/1000 Mbps RJ45
2 x Gigabit SFP
Auto-Negotiation/Auto MDI/MDIX

PoE Ports (RJ45)

Standard: 802.3af PoE and 802.3at PoE+ compliant
PoE Ports: 24 ports
PoE Budget: 384W available for all PoE+ ports, 30W max per port
Fast PoE & Perpetual PoE
PoE Auto Recovery
Up to 250m PoE transmission distance

Switching Capacity

56 Gbps

Power Supply

100–240V AC, 50/60Hz

Dimensions

440 x 330 x 44 mm

Transfer Method

Store-And-Forward

Mac Address Table

Packet Forwarding Rate

41.67 Mpps
Packet Buffer Memory: 4 Mbit

Jumbo Frame

15 KB

Additional Features

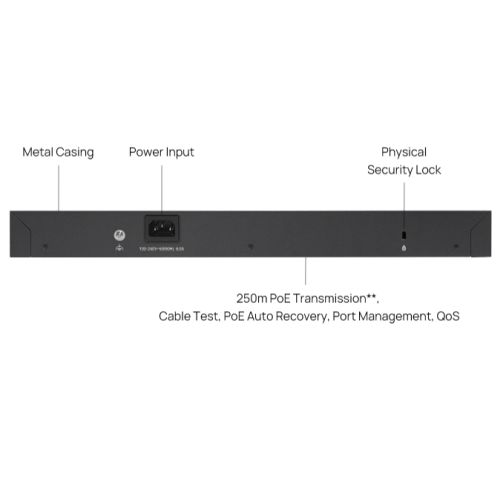

Durable Metal Casing
Fan Quantity: 2
Physical Security Lock
Surge Protection: 6kV
Supports plug-and-play

Quality of Service

Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Storm Control

Layer Features

L2 Features:
Static Link Aggregation
Loop Prevention / Loopback Detection
802.3x Flow Control
Mirroring
Port Statistics
802.1ab LLDP

L2 Multicast:
IGMP Snooping

VLAN

MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN

Management

Omada App:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller

Cloud Access:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning:
Requires the use of Omada Cloud-Based Controller

Management Features:
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Unified Configuration

Environment

Operating Temperature: -5°C ~ 45°C
Storage Temperature: -40°C ~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

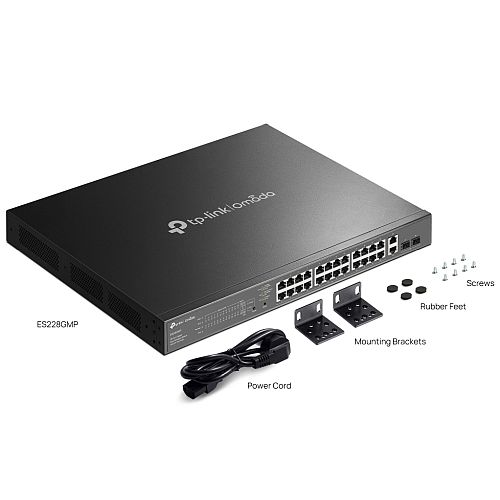

Package Contents

ES228GMP
Power Cord
Mounting Brackets
Rubber Feet
Screws
Installation Guide

Package Type

Retail

Package Weight

5.9200 kg

Warranty

Limited Lifetime

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
