Storage > Internal SSD Drives

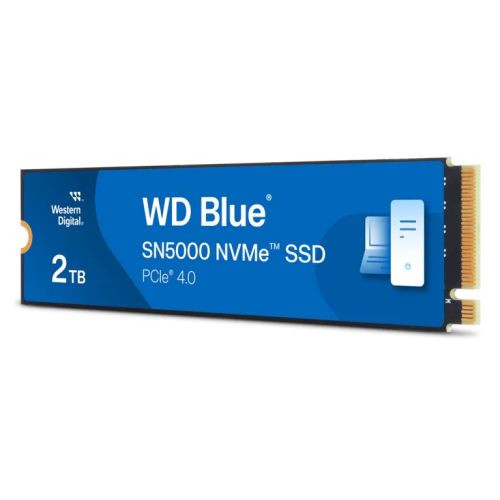

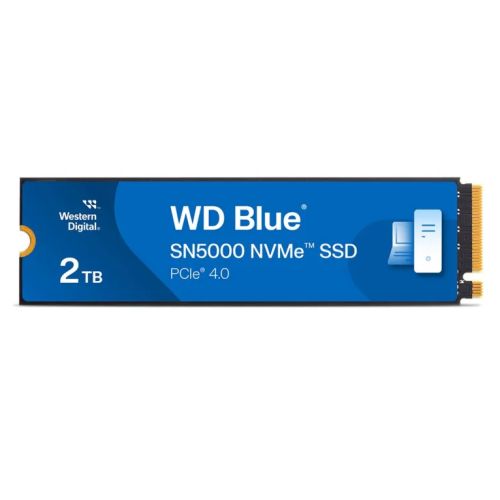

WD 2TB Blue SN5000 M.2 NVMe Gen4 SSD, M.2 2280, PCIe4, 3D NAND TLC, R/W 5150/4850 MB/s, 650K/770K IOPS

+ click images to enlarge

Stock Code

SSD-2TBWDSN5000BLUE

Manufacturer

Manufacturer Code

WDS200T4B0E

EAN Number

718037893228

Printable Version

29 Available

You must be logged in to view pricing and place orders

Series

WD Blue SN5000

Capacity

2 TB

Form Factor

M.2 2280

Interface

PCIe 4.0 x4

Read

Up to 5150 MB/s

Write

Up to 4850 MB/s

Max Random 4K R/W

650K / 770K IOPS

Power Consumption

Average Active Power: 75mW
Sleep (PS5): 5mW
Max Average Power: 6.3mW

Weight/Dimensions

5.7g
80 x 22 x 2.38 mm

Operating Temperatures

0°C to 85°C

Storage Temperatures

-40°C to 85°C

Shock Resistance

1,500 G @ 0.5 msec half sine

Vibration Operating

5.0 gRMS, 10–2000 Hz, 3 axes

Vibration Non-operating

4.9 gRMS, 7–800 Hz, 3 axes

MTBF

1.75 Million Hours

Total Bytes Written (TBW)

900 TBW

Additional Features

WD nCache 4.0 for fast file copies
Acronis True Image for WD Data Migration Software

Package Type

Retail

Package Weight

0.0500 kg

Warranty

5 Years or if the drive exceeds Total Bytes Written (see above)

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
