Networking > Routers / Mesh Systems

TP-LINK (DR3220v-4G) Omada 4G+ Cat6 Gigabit Rackmount DSL Gateway, 4G+ Cat6 up to 300Mbps, VDSL2 35b, USB, VoIP Support, Centralized Management, Desktop / Rack-Mounting

+ click images to enlarge

Stock Code

ROU-TPOMAVADSL4GRACK-GB

Manufacturer

TP-LINK

Manufacturer Code

DR3220V-4G

EAN Number

1210002608411

Printable Version

6 Available

You must be logged in to view pricing and place orders

Type

VDSL2/ADSL2 Router

Connectivity

Wired

Max Wired Transfer Rate

10/100/1000 Mbps

Signal Rate

Support 4G+ Cat6 up to 300 Mbps
Super VDSL (VDSL2 35b): Supports 350Mbps DSL Access

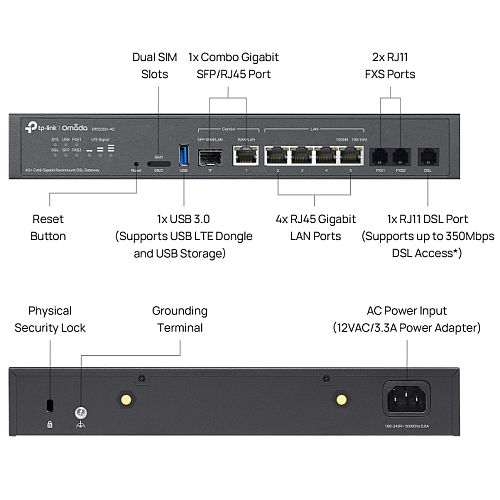

Interface(s)

1 x Combo Gigabit SFP/RJ45 (1 SFP WAN/LAN + 1 WAN/LAN )
4 x RJ45 Gigabit LAN
1 x DSL Port
2 x FXS Ports
1 x Dual-SIM Nano SIM slot (4G+ Cat6)

Button(s)

Reset Button

Power Supply

100-240V/50-60Hz 0.6A

Max Power Consumption:
8.55 W (No Link)
24.4 W (Full load + USB)

Antenna(s)

LTE: Two 3dBi Omnidirectional Detachable Antennas

Dimensions

(WxDxH) 294 x 180 x 44 mm (Antenna dimensions not
included)

Wireless Features

Security

Access Control:
Source/Destination IP Based Access Control

Filtering:
Web Group Filtering
URL Filtering
Web Security

ARP Inspection:
Sending GARP Packets
ARP Scanning

IP-MAC Binding:
Attack Defense
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/X

DHCP

DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP

Port/NAT Forwarding

66 Byte Packet Forwarding Rate:
1,453,489 pps / 1,453,488 pps

1,518 Byte Packet Forwarding Rate:
81274 pps/ 91275 pps

VPN Support

GRE:
Only in Standalone Mode

SSL VPN:
50 Tunnels

IPsec VPN:
100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)

PPTP VPN:
PPTP VPN Server
PPTP VPN Client (10)
50 Tunnels
PPTP with MPPE Encryption

L2TP VPN:
L2TP VPN Server
L2TP VPN Client (10)
50 Tunnels
L2TP over IPSec

OpenVPN:
OpenVPN Server
OpenVPN Client (5)
55 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode

WireGuard VPN:
Yes

Management

Omada App
Centralized Management
Cloud Access
Zero-Touch Provisioning

Maintenance:
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)
NTP Synchronize1
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support
TR-069 (data models of TR-098 and TR-181 are supported)

Management Features:
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration

Dynamic DNS

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

USB Application

Supports USB LTE dongle and USB Storage

Additional Features

Flash: 256 MB NAND
DRAM: 512 MB DDR4
Desktop / Rack-mounting
IP-based Bandwidth Control
Load Balance
IP-based Session Limit

Environment

Operating Temperature: 0C°~40°C (32°F ~104°F)
Storage Temperature: -40°C to 70°C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

Package Contents

DR3220v-4G
Power Cord
Ethernet Cable
Phone Cable
Rubber Feet
SIM Card Eject Pin
Rackmount Kit
Antenna Extension Base
Quick Installation Guide

Package Type

Retail

Package Weight

2.3600 kg

Warranty

Limited Lifetime

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
