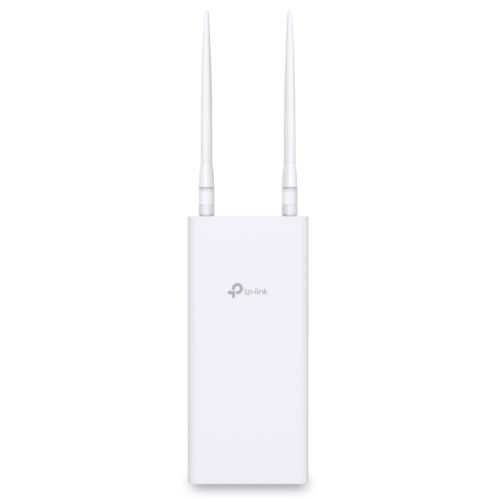

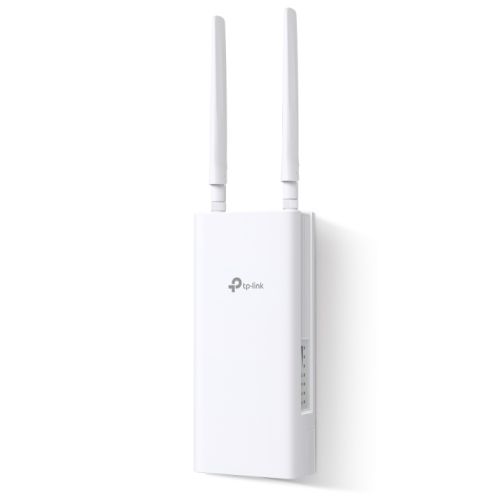

TP-LINK (TL-MR100-OUTDOOR) 300Mbps Wireless N 4G LTE Outdoor Router, PoE/DC Power, Pole/Wall/Window Mounting

+ click images to enlarge

Stock Code

ROU-N300TP4GLTEOUTDOOR

Manufacturer

TP-LINK

Manufacturer Code

TL-MR100-OUTDOOR

EAN Number

1210002601658

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Type

4G Router

Connectivity

Wireless

Wi-Fi Rating

N300

Max Single Band Wi-Fi Rate

300 Mbps

Max Wired Transfer Rate

10/100 Mbps

Bands

Single Band

Signal Rate

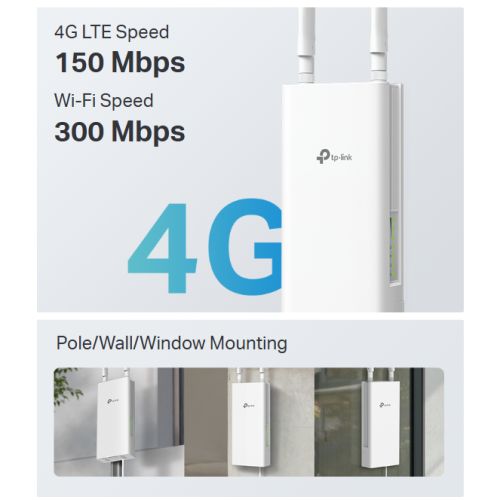

4G LTE: DL 150Mbps / UL 50Mbps
Wireless 2.4GHz: 300Mbps

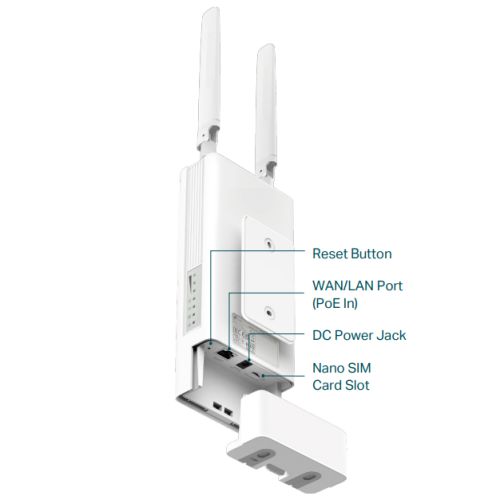

Interface(s)

1 x 100 Mbps WAN/LAN Port (PoE In)
1 x Nano SIM Card Slot
1 x DC Port

Standards

IEEE 802.11b/g/n
IPv4, IPv6

Frequency

2.4 GHz

Button(s)

Reset Button

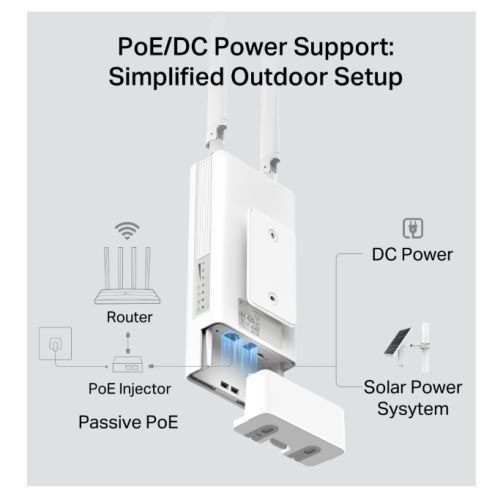

Power Supply

12V/1A DC
48V/0.375A Passive PoE
44-57V/0.35A 802.3af

Antenna(s)

2 x Detachable LTE Antennas

Dimensions

226.6 x 100x 54.7 mm

Wireless Features

Enable/Disable Wireless Radio
Wireless Schedule
WMM
Wireless Statistics

Security

Wireless Security: WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Software Security: DoS, IPv4 SPI Firewall, IP and MAC Address Binding

DHCP

Server, DHCP Client List, Address Reservation

Port/NAT Forwarding

Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ

Management

Local Management, Remote Management

Dynamic DNS

TP-Link, DynDns, NO-IP

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

USB Application

Additional Features

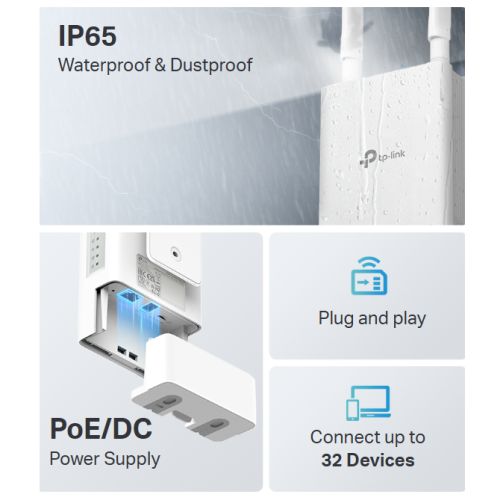

IP65 Weatherproof Protection
6kV Lightning Protection & 15kV ESD Protection
Pole/Wall/Window Mounting
Plug and Play

Environment

Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 5% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

Package Contents

1 x TL-MR100-Outdoor Unit
1 x 10-meter RJ45 Ethernet Cable
1 x PoE Adapter
1 x AC Power Cord
1 x Quick Installation Guide
Window/Pole/Wall Mounting Kits

Package Type

Retail

Package Weight

1.1200 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
