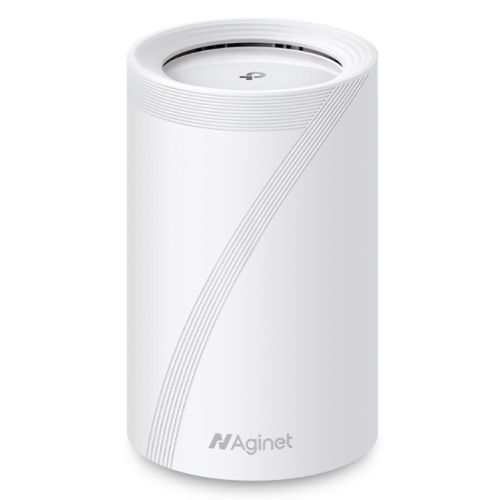

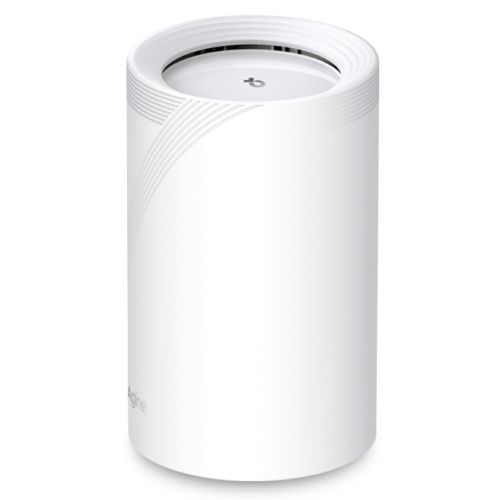

TP-LINK Aginet (HB610) BE9300 Tri-Band Whole Home Mesh Wi-Fi 7 System, 2.5G Ports, MLO, OFDMA, MU-MIMO, WPA3 , Remote Management

+ click images to enlarge

Stock Code

ROU-BE9300TPHB610

Manufacturer

TP-LINK

Manufacturer Code

HB610(1-PACK)

EAN Number

8885020623192

Printable Version

3 Available

You must be logged in to view pricing and place orders

Type

Mesh Wi-Fi System/Router

Connectivity

Wireless

Wi-Fi Rating

BE9300

Max Single Band Wi-Fi Rate

5760 Mbps

Max Wired Transfer Rate

2.5 Gbps

Bands

Tri Band

Signal Rate

6GHz: up to 5760 Mbps
5GHz: up to 2880 Mbps
2.4GHz: up to 574 Mbps

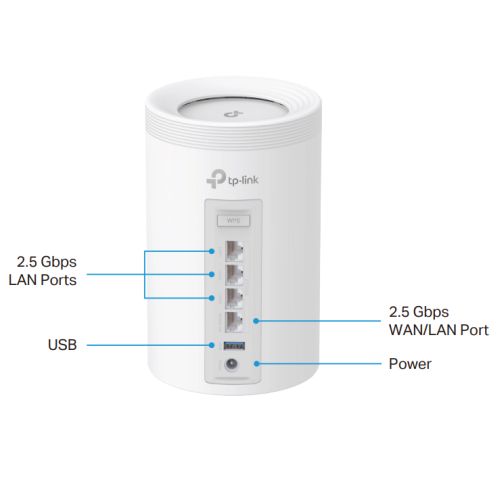

Interface(s)

1 x 2.5 GbE WAN/LAN
3 x 2.5 GbE LAN
1 x USB 3.0

Standards

IEEE 802.11be/ax 6 GHz
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/g/b 2.4 GHz
IPv4
IPv6

Frequency

2.4 GHz / 5 GHz / 6GHz

Button(s)

WPS Button
Reset Button

Power Supply

12V/2.5A

Antenna(s)

Internal Antennas High-performance

Dimensions

(WxDxH) 107.5 x 107.5 x 176 mm

Wireless Features

EasyMesh compatible and supports 802.11k/v/r
Multi-Link Operation (MLO)
320 MHz Bandwidth
4K-QAM
Multi-RU
OFDMA
MU-MIMO
Beamforming
BSS Color
Router Mode
Access Point Mode

Security

Wireless Security: WPA/WPA2/WPA3-Personal
Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding

Port/NAT Forwarding

Port Forwarding

VPN Support

PPTP, OpenVPN, IPSec

Management

Local Management:
WebGUI, Aginet app (for end users)

Remote Management:
TR-069, TR-098, TR-181, TR-369, TR-111,TR-143 for service providers
Aginet App for end users (need to log in wtih TP-Link ID and bind your device to it)

Cloud Management:
TP-Link Aginet Unified Cloud (TAUC)

Additional Features

Multi-SSID
QoS (Quality of Service)
CWMP
Parental Controls
WiFi Schedule
Wireless Statistics
Guest Network
Band Steering
Airtime Fairness
Network Diagnostic
Traffic Statistic
Dynamic IP/Static IP/PPPoE/PPTP/L2TP

Environment

Operating Temperature: 0°C–40°C (32°F –104°F)
Storage Temperature: -40°C–60°C (-40°F –140°F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing

Package Contents

1 x HB610 Unit
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x Quick Installation Guide

Package Type

Retail

Package Weight

1.3000 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
