Networking > Routers / Mesh Systems

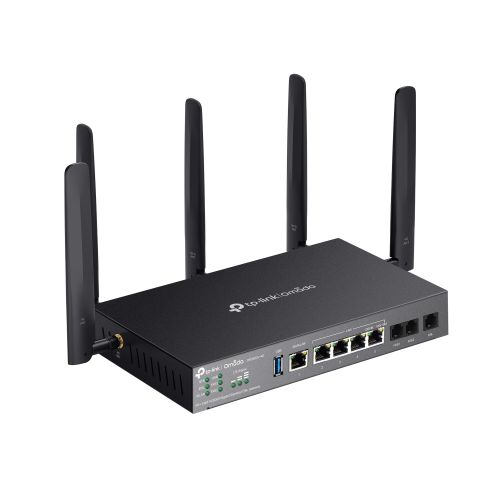

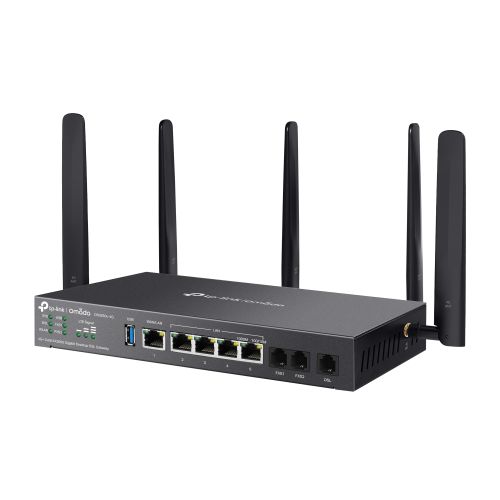

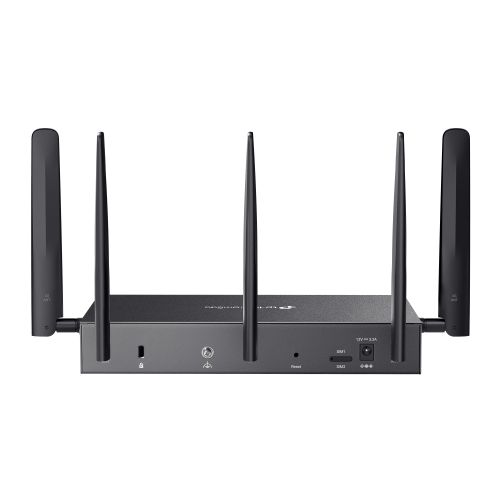

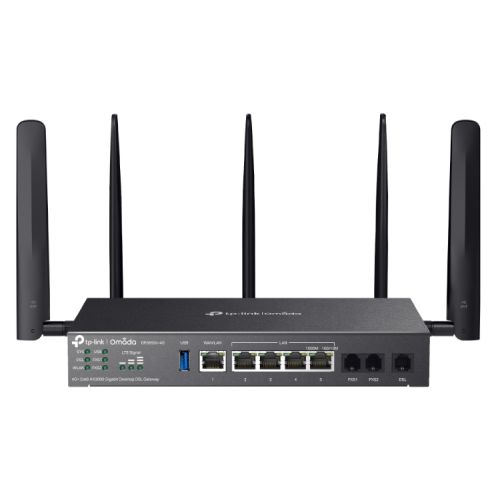

TP-LINK (DR3650v-4G) Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway, 4G+ Cat6 up to 300Mbps, VDSL2 35b, USB, VoIP Support, Centralized Management, Mesh Tech
+ click images to enlarge
Stock Code
ROU-AX3000TPOMAVADSL4G-GB
Manufacturer
Manufacturer Code
DR3650V-4G
EAN Number
1210002608404
24 Available
You must be logged in to view pricing and place orders
Type
VDSL2/ADSL2 Router
Connectivity
Wireless
Wi-Fi Rating
AX3000
Max Single Band Wi-Fi Rate
2402 Mbps
Max Wired Transfer Rate
10/100/1000 Mbps
Bands
Dual Band
Signal Rate
5 GHz: 2402 Mbps
2.4 GHz: 574 Mbps
4G+ Cat6 up to 300Mbps
2.4 GHz: 574 Mbps
4G+ Cat6 up to 300Mbps

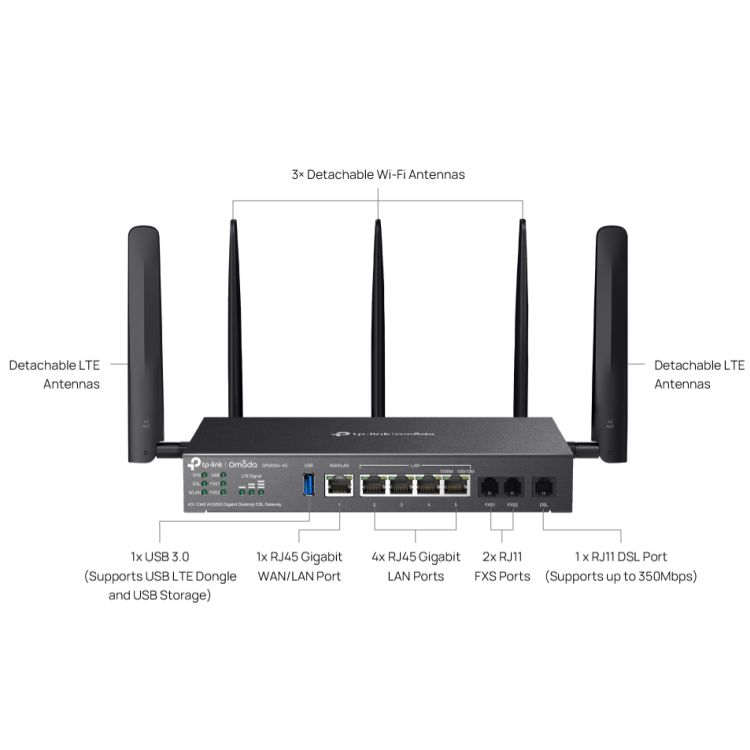

Interface(s)
1 x Gigabit WAN/LAN Port
4 x Gigabit LAN Ports
1 x DSL Port
2 x FXS Ports
1 x USB 3.0 (supports USB LTE dongle and USB Storage)
Dual Nano SIM Slot (4G+ Cat6)
4 x Gigabit LAN Ports
1 x DSL Port
2 x FXS Ports
1 x USB 3.0 (supports USB LTE dongle and USB Storage)
Dual Nano SIM Slot (4G+ Cat6)
Frequency
2.4 GHz & 5 GHz

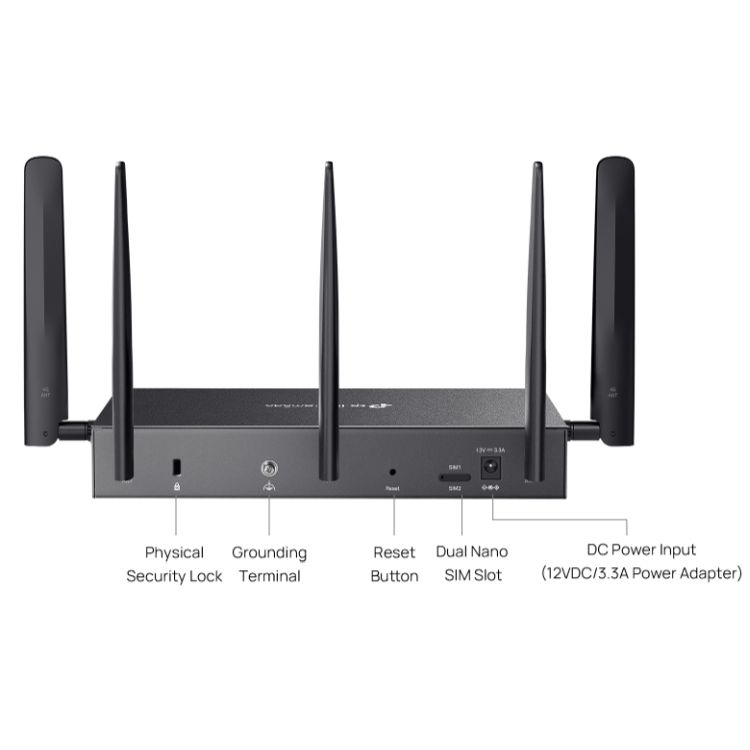

Button(s)
Reset Button
Power Supply
12V DC / 3.3A Power Adapter
Max Power Consumption:
Power adapter not included: 28.482 W (Full load + USB)
Power adapter included: 31.42 W (Full load + USB)
Max Power Consumption:
Power adapter not included: 28.482 W (Full load + USB)
Power adapter included: 31.42 W (Full load + USB)
Antenna(s)
Wi-Fi: 3x 5GHz 5dBi & 2.4GHz 3.5dBi dual-band detachable antennas
LTE: 2x 4.0dBi omnidirectional detachable antennas
LTE: 2x 4.0dBi omnidirectional detachable antennas
Dimensions
(WxDxH) 226 x 131 x 35 mm) (Antenna dimensions are not
included)
included)
Wireless Functions
Seamless Roaming
Mesh (with EAP that supports Mesh)
OFDMA
Beamforming
Enable/Disable SSID Broadcast
Enable/Disable Wireless Radio
MU-MIMO
Load Balance
Automatic Channel Selection Algorithm
Airtime Fairness
Rate Limit: Based on SSID/Client
Transmit Power Control: Adjust transmit Power on dBm
Multiple SSIDs: 16 in total (8 per radio)
Guest Network
Mesh (with EAP that supports Mesh)
OFDMA
Beamforming
Enable/Disable SSID Broadcast
Enable/Disable Wireless Radio
MU-MIMO
Load Balance
Automatic Channel Selection Algorithm
Airtime Fairness
Rate Limit: Based on SSID/Client
Transmit Power Control: Adjust transmit Power on dBm
Multiple SSIDs: 16 in total (8 per radio)
Guest Network
Security
WiFi Encryption:
WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Access Control:
Source/Destination IP Based Access Control
Filtering:
Web Group Filtering
URL Filtering
Web Security
ARP Inspection:
Sending GARP Packets
ARP Scanning
IP-MAC Binding
Attack Defense:
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Access Control:
Source/Destination IP Based Access Control
Filtering:
Web Group Filtering
URL Filtering
Web Security
ARP Inspection:
Sending GARP Packets
ARP Scanning
IP-MAC Binding
Attack Defense:
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
DHCP
DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
Port/NAT Forwarding
66 Byte Packet Forwarding Rate:
1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate:
81,274 pps / 91,275 pps
1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate:
81,274 pps / 91,275 pps
VPN Support
GRE:
Only in Standalone Mode
SSL VPN:
50 Tunnels
IPsec VPN:
100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
Only in Standalone Mode
SSL VPN:
50 Tunnels
IPsec VPN:
100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
PPTP VPN:
PPTP VPN Server
PPTP VPN Client (10)
50 Tunnels
PPTP with MPPE Encryption
L2TP VPN:
L2TP VPN Server
L2TP VPN Client (10)
50 Tunnels
L2TP over IPSec
OpenVPN:
OpenVPN Server
OpenVPN Client (5)
55 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode
WireGuard VPN:
Yes
PPTP VPN Server
PPTP VPN Client (10)
50 Tunnels
PPTP with MPPE Encryption
L2TP VPN:
L2TP VPN Server
L2TP VPN Client (10)
50 Tunnels
L2TP over IPSec
OpenVPN:
OpenVPN Server
OpenVPN Client (5)
55 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode
WireGuard VPN:
Yes
Management
Omada App
Centralized Management
Cloud Access
Zero-Touch Provisioning
Maintenance:
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)
NTP Synchronize
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support
TR-069 (data models of TR-098 and TR181 are supported)
Centralized Management
Cloud Access
Zero-Touch Provisioning
Maintenance:
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)
NTP Synchronize
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support
TR-069 (data models of TR-098 and TR181 are supported)
Management Features:
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
Dynamic DNS
Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization
USB Application
Supports USB LTE dongle and USB Storage
Additional Features
Flash: 256 MB NAND
DRAM: 512 MB DDR4

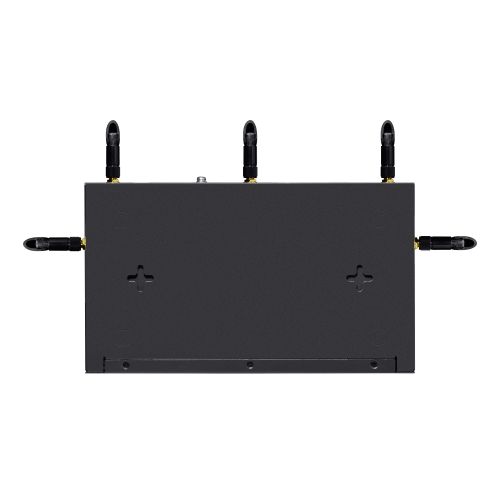

Desktop/Wall-mounting (Purchase Rackmount Kit Separately)
DRAM: 512 MB DDR4
Desktop/Wall-mounting (Purchase Rackmount Kit Separately)
Environment
Operating Temperature: 0C°~40°C (32°F ~104°F)
Storage Temperature: -40°C to 70°C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
Storage Temperature: -40°C to 70°C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

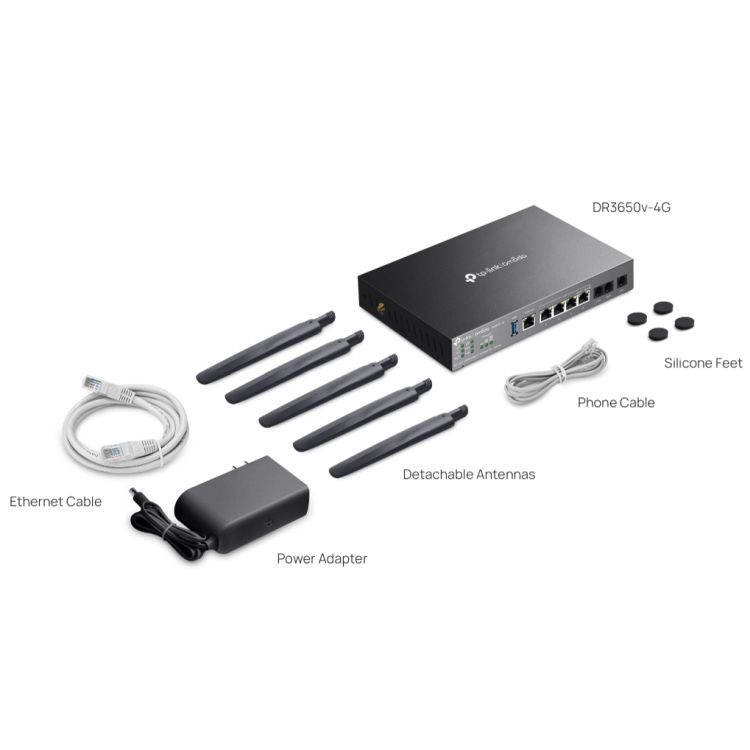

Package Contents
DR3650v-4G
Power Adapter
Ethernet Cable
Phone Cable
Rubber Feet,
SIM Card Eject Pin
Quick Installation Guide
Power Adapter
Ethernet Cable
Phone Cable
Rubber Feet,
SIM Card Eject Pin
Quick Installation Guide
Package Type
Retail
Package Weight
1.6500 kg
Warranty
Limited Lifetime
Full Box Quantity
6
Manufacturer Link
