Networking > Routers / Mesh Systems

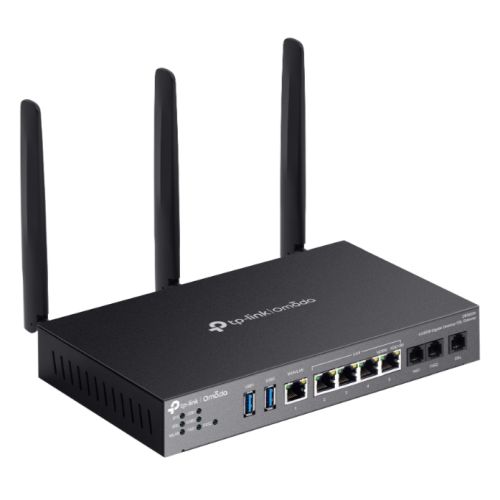

TP-LINK (DR3650v) Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway, Dual Band, VDSL2 35b, USB 3.0, VoIP Support, Centralized Management, Mesh Technology

+ click images to enlarge

Stock Code

ROU-AX3000TPOMAVADSL-GB

Manufacturer

TP-LINK

Manufacturer Code

DR3650V

EAN Number

8885020626766

Printable Version

6 Available

You must be logged in to view pricing and place orders

Type

VDSL2/ADSL2 Router

Connectivity

Wireless

Wi-Fi Rating

AX3000

Max Single Band Wi-Fi Rate

2402 Mbps

Max Wired Transfer Rate

10/100/1000 Mbps

Bands

Dual Band

Signal Rate

5 GHz: 2402 Mbps
2.4 GHz: 574 Mbps

Interface(s)

3 x RJ11 Ports (2 x FXS, 1 x DSL)
5 x RJ45 Gigabit Ports (1 x WAN/LAN, 4 × LAN)
2 x USB 3.0

Frequency

2.4 GHz & 5 GHz

Button(s)

Reset Button

Power Supply

12VDC / 3.3A Power Adapter
Max Power Consumption: EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)

Antenna(s)

2.4 GHz: 2x 3 dBi dual-band detachable antennas
5 GHz: 3x 4.5 dBi dual-band detachable antennas

Dimensions

(WxDxH) 226 x 131 x 35 mm) (Antenna dimensions are not
included)

Wireless Functions

Seamless Roaming
Mesh (with EAP that supports Mesh)
OFDMA
Beamforming
MU-MIMO

Security

WiFi Encryption:
WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise

Filtering:
Web Group Filtering
URL Filtering
Web Security

ARP Inspection:
Sending GARP Packets
ARP Scanning
IP-MAC Binding

Attack Defense:
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN

Access Control:
Source/Destination IP Based Access Control

DHCP

DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP

Port/NAT Forwarding

66 Byte Packet forwarding rate:
1,453,489 pps / 1,453,488 pps

1,518 Byte Packet forwarding rate:
81,274 pps / 91,275 pps

VPN Support

SSL VPN:
50 Tunnels

IPsec VPN:
100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)

PPTP VPN:
PPTP VPN Server
PPTP VPN Client (10)
50 Tunnels
PPTP with MPPE Encryption

L2TP VPN:
L2TP VPN Server
L2TP VPN Client (10)
50 Tunnels
L2TP over IPSec

OpenVPN:
OpenVPN Server
OpenVPN Client (5)
55 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode

WireGuard VPN:
20 Tunnels

Management

Omada App
Centralized Management
Cloud Access
Zero-Touch Provisioning

Maintenance:
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)
NTP Synchronize
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support
TR-069 (data models of TR-098 and TR181 are supported)

Management Features:
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration

Dynamic DNS

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

USB Application

Supports 4G/3G dongles

Additional Features

Flash: 256 MB NAND
DRAM: 512 MB DDR4
Desktop/Wall-mounting
Guest Network

Environment

Operating Temperature: 0C°~40°C (32°F ~104°F)
Storage Temperature: -40°C to 70°C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

Package Contents

DR3650v
Power Adapter
Ethernet Cable
Phone Cable
Quick Installation Guide

Package Type

Retail

Package Weight

1.7900 kg

Warranty

Limited Lifetime

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
