Components > Graphics Cards

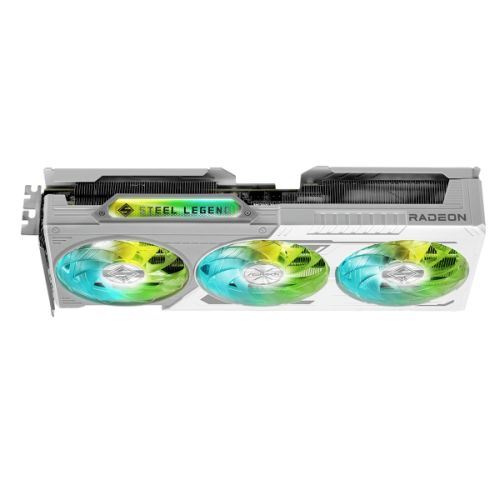

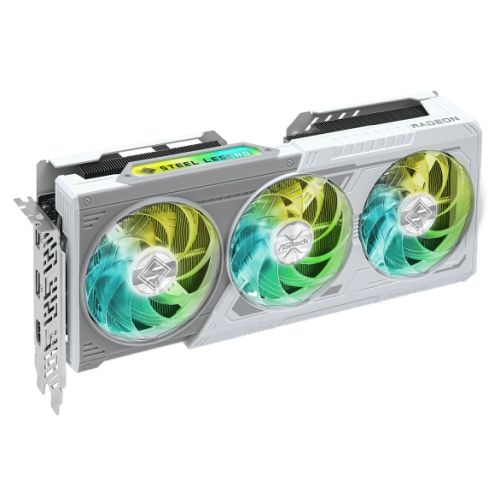

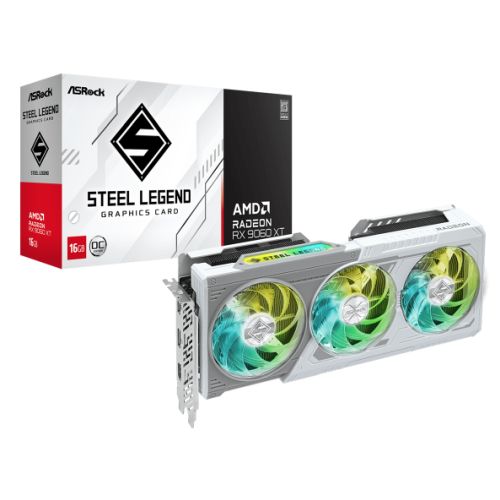

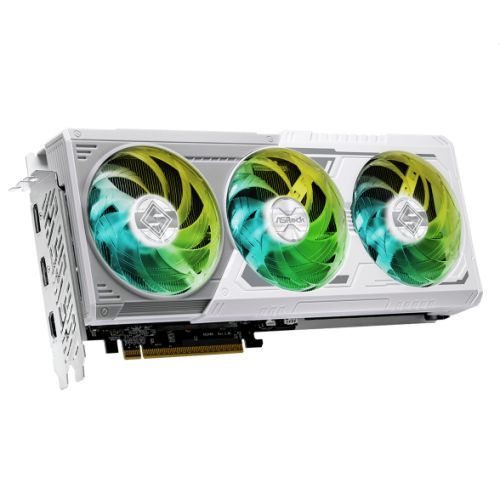

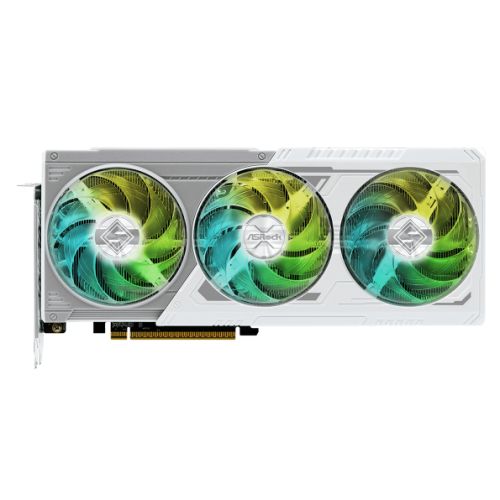

Asrock RX9060 XT Steel Legend 16GB OC, PCIe5, 16GB DDR6, HDMI, 2 DP, 3320MHz Clock, RGB Lighting, Overclocked, White

+ click images to enlarge

Stock Code

RADRX906XT16ASSL16OC

Manufacturer

ASROCK

Manufacturer Code

90-GA5JZZ-00UANF

EAN Number

4711581490857

Printable Version

28 Available

You must be logged in to view pricing and place orders

Chipset Manufacturer

AMD

Interface

PCI Express 5.0

Graphics Chipset

AMD RX 9060 XT

Memory Size

16GB

Memory Type

DDR6

Memory Interface

128-bit

Engine Clock

Boost Clock: Up to 3320 MHz
Game Clock: 2780 MHz

Memory Clock

20 Gbps

CUDA Cores / Stream Processors

2048 Stream Processors

Outputs

1 x HDMI 2.1b
2 x DisplayPort 2.1a

HDCP Support

Yes

Resolution

Digital Max Resolution 7680 x 4320

Multi-GPU Support

None

Max Display Support

Cooling

Triple Fan Design
Striped Ring Fans
Air Deflecting Fins
0dB Tech
Ultra-fit Heatpipes
Nickel-plated Copper Base
High-density Metal Welding

PSU Requirements

550W or greater recommended

Connectors Required

1 x 8-pin

Software

AMD Software: Adrenalin Edition

Additional Features

See Overview

Dimensions

298 x 131 x 51 mm

Slot Size

2.55 Slot

Accessories

1 x Quick Installation Guide

Package Type

Retail

Package Weight

1.4000 kg

Warranty

2 Year Replacement Warranty

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer

AMD Radeon™ RX 9060 XT Steel Legend 16GB OC

Boost Clock: Up to 3320 MHz / 20 Gbps
Game Clock: 2780 MHz / 20 Gbps
AMD Radeon™ RX 9060 XT GPU
16GB GDDR6 on 128-Bit Memory Bus
AMD RDNA™ 4 Architecture
32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
Microsoft® DirectX® 12 Ultimate
PCI® Express 5.0 Support
1 x 8-pin Power Connector
2 x DisplayPort™ 2.1a, 1 x HDMI™ 2.1b
Polychrome SYNC
Triple Fan Design
Striped Ring Fan
Stylish Metal Backplate
Ultra-fit Heatpipe
Air Deflecting Fin
0dB Silent Cooling
Super Alloy Graphics Card

Polychrome SYNC

Create your own unique colorful light effects.

With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

LED Switch

You can quickly and easily switch on/off the ARGB LEDs that are equipped with not only your graphics card but also the connected ARGB devices.

ARGB Header

With the ARGB Header, it can connect extra ARGB strips/devices to make the lighting effects more rich and vivid.

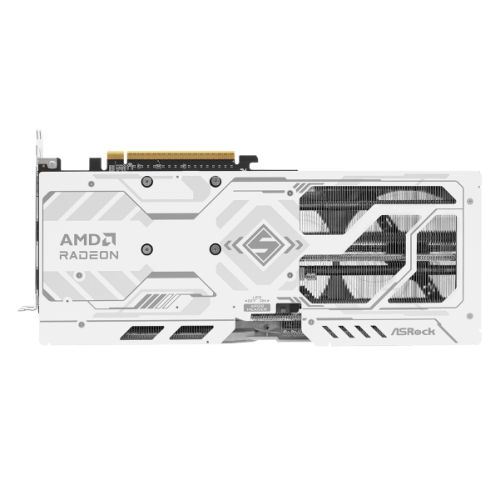

Stylish Metal Backplate

Triple Fan Design

Triple fan design helps to optimize system cooling to reduce the operating temperature.

Solid, Fancy, Cool.

Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

Striped Ring Fan

Designed For Enhanced Airflow

ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.

0dB Silent Cooling

Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Air Deflecting Fin

Guide Airflow to Go Through Regularly & Quickly.

Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Ultra-fit Heatpipe

Consolidated to Maximize the Contact.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-plated Copper Base

Maximize GPU Contact Area.

With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding

Improve Heat Dissipation.

Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current, thus providing improved thermal result and superior performance.

Premium Power Choke

Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.

2oz Copper PCB

Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

Matte Black PCB

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

Designed for Lightning-Fast Gaming, Powered by AMD RDNA™ 4

Experience the next level of 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced raytracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology1 and AMD HYPR-RX2 for ultra-smooth, ultra-responsive gameplay that makes every play count.

Powerful AI Enhanced Visuals

Enjoy gaming like never before with immersive, lifelike visuals driven by next-gen raytracing, supercharged with AMD FidelityFX™ Super Resolution 41 ML-powered upscaling, and elevated streaming clarity by Enhanced Media Engine.

Performance Made Easy

The AMD Radeon™ RX 9000 Series puts powerful performance at your fingertips with intuitive AMD Software: Adrenaline Edition. Experience dependable feature rich drivers, real-time AI-powered assistance, and one-click optimization with AMD HYPR-RX2. Elevate your gaming with increased frame rates, reduced lag, and sharper visuals.

Future-Ready Tech

Built for longevity, AMD Radeon™ RX 9060 XT graphics cards feature up to 16GB VRAM, PCI Express® Gen 5 support, AMD Smart Access Memory™ technology3, AI-enabled technologies, and seamless pairing with AMD Ryzen™ 9000 Series processors to unlock the full potential of your AM5 platform. An updated Radiance Display™ Engine featuring DisplayPort™ 2.1a and HDMI 2.1b is ready for the latest ultra-high refresh displays.
