Components > Power Supplies

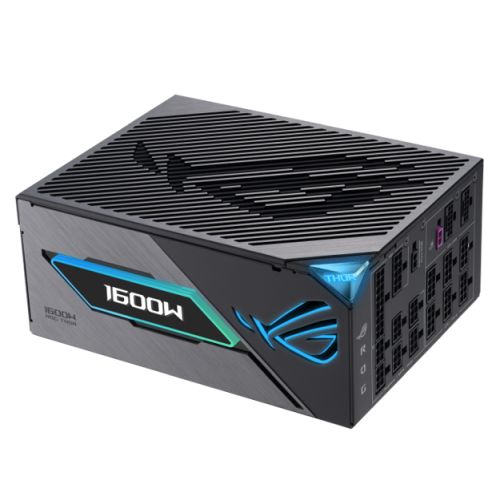

Asus 1600W ROG Thor Titanium III PSU, ATX 3.1, Fully Modular, 80+ Titanium, RGB Lighting, OLED Display, GaN MOSFET, GPU-First, Lambda A+
+ click images to enlarge
Stock Code
PSU-1600ASTHORT3
Manufacturer
ASUS
Manufacturer Code
90YE00V1-B0NA00
EAN Number
4711387610299
Printable Version
Out of Stock: call for information
You must be logged in to view pricing and place orders
Form Factor
ATX
Series
Asus ROG Thor
Wattage
1600 W
Modular
Fully Modular
Compatibility
ATX 3.1
PCIe 5.1

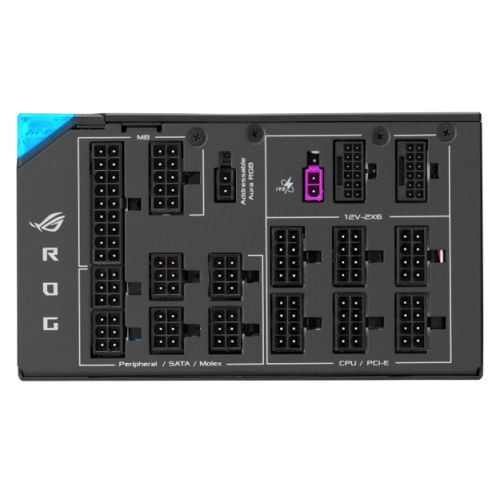

Connectors
1 x MB 24/20-pin
2 x CPU 4+4-pin
4 x PCI-E 6+2-pin
2 x PCI-E 16-pin
10 x SATA
9 x Peripheral
AC Input
100-240Vac
PFC
Active PFC
Fan Type
Dual Ball Bearing
0dB Technology
Fan Bearing
Ball Bearing
Noise
Cybenetics Lambda A+ Certification
0dB Fan Button
Max Certification
Titanium
Efficiency
80+ Titanium
GaN MOSFET delivers up to 30% more power efficiency
MTBF
>120,000 hours
Protection
OPP / OVP / UVP / SCP / OCP / OTP
Additional Features
GaN MOSFET
GPU-First intelligent voltage stabilizer
Turbo Mode
Magnetic OLED display
ROG heatsinks
Fully aluminium enclosure
Etched modular cables
High-performance copper pins
Aura Sync RGB lighting
DIY-friendly CPU Power Connector

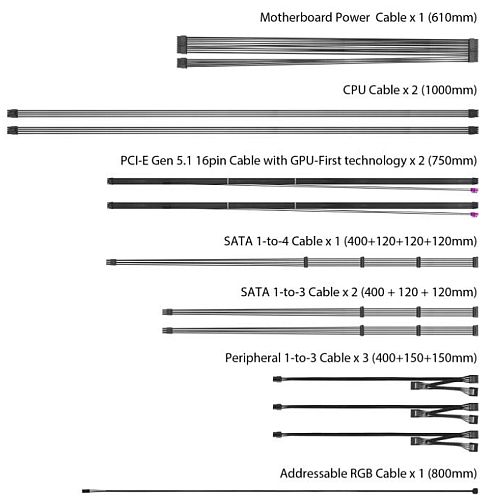

Package Contents
1 x Power Cord
1 x Motherboard Power Cable (610mm)
2 x CPU Cable (1000mm)
2 x PCI-E Gen 5.1 16-pin Cable (750mm)
4 x PCI-E Cable 1-to-1 (750mm)
1 x SATA Cable 1-to-4 (400+120+120+120mm)
2 x SATA Cable 1-to-3 (400+120+120mm)
3 x Peripheral 1-to-3 (400+150+150mm)
1 x Addressable RGB Cable (800mm)
1 x ROG sticker
6 x ROG cable tie
1 x Chassis Screws Package
12 x Cable Ties
1 x User Manual
Weight/Dimensions
2.8 kg
200 x 150 x 86 mm
Package Weight
5.4000 kg
Warranty
Core product :10 Years
OLED panel and RGB LEDs: 3 Years
Full Box Quantity
4
Manufacturer Link
Click here for more details from the manufacturer
