Components > Power Supplies

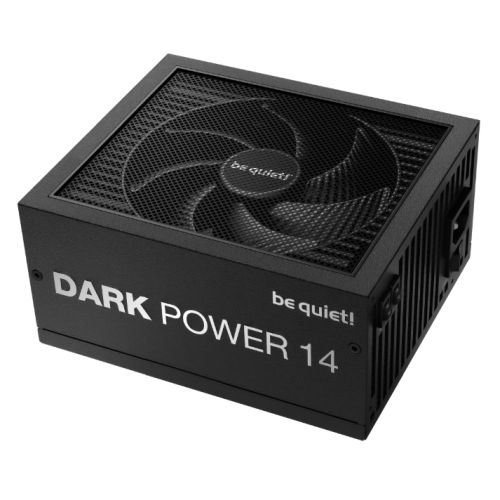

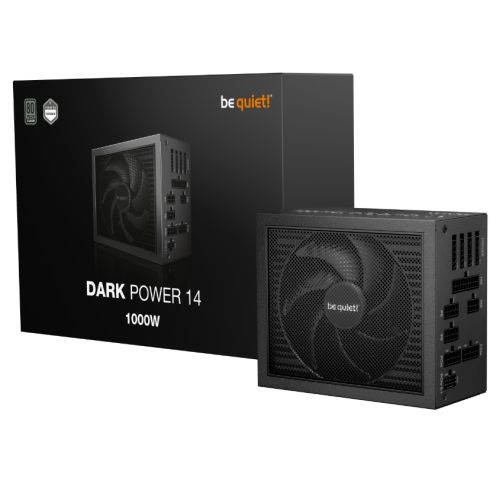

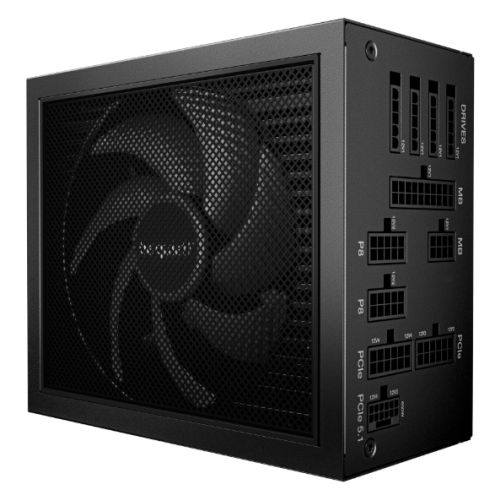

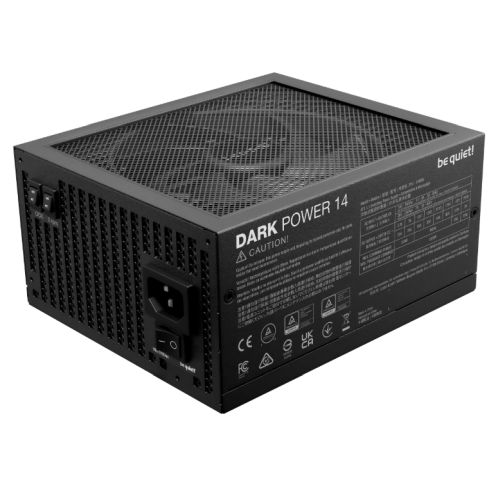

Be Quiet! 1000W Dark Power 14 PSU, Fully Modular, 80+/Cybenetics Titanium, Active/Semi-Passive Cooling, LLC Full-Bridge, ATX 3.1, PCIe 5.1
+ click images to enlarge
Stock Code
PSU-1000BQDP14
Manufacturer
Manufacturer Code
BP020EU
EAN Number
4260052192023
8 Available
You must be logged in to view pricing and place orders
Form Factor
ATX
Series
Be Quiet! Dark Power 14
Wattage
1000 W
Modular
Fully Modular
Compatibility
ATX 3.1
PCIe 5.1
EPS 12V Version 2.92
PCIe 5.1
EPS 12V Version 2.92

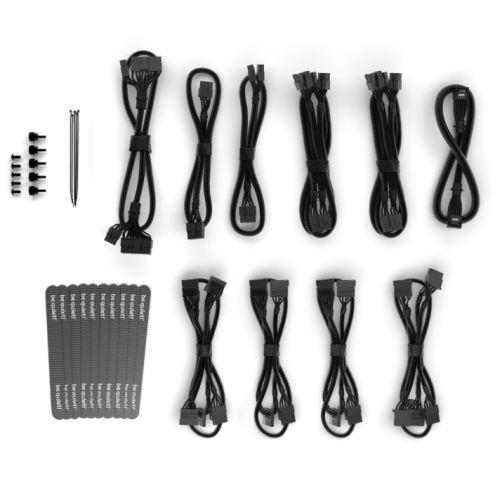

Connectors
1 x ATX-Motherboard (20+4-pin)
1 x P4+4 (CPU)
1 x P8 (CPU)
1 x 12V-2x6 cables
4 x PCI-e 6+2-pin (GPU)
13 x SATA
2 x PATA
1 x P4+4 (CPU)
1 x P8 (CPU)
1 x 12V-2x6 cables
4 x PCI-e 6+2-pin (GPU)
13 x SATA
2 x PATA
Rail Design
Multi-rail Operation: 4 12V Rails
Manually switch between multi-rail and single-rail mode
Manually switch between multi-rail and single-rail mode
AC Input
AC 100-240 V
Fan Type
135mm Silent Wings Fan
Fan Bearing
Fluid / Hydraulic Bearing
Noise
Cybenetics Noise Rating: Titanium
dB(A) at 10% load: 8
dB(A) at 20% load: 8
dB(A) at 50% load: 8
dB(A) at 100% load: 18.2
dB(A) at 10% load: 8
dB(A) at 20% load: 8
dB(A) at 50% load: 8
dB(A) at 100% load: 18.2
Max Certification
Titanium
Efficiency
Up to 95.5%
80 PLUS and Cybenetics Titanium
230V, 2% load: 73.6%
230V, 10% load: 91.7%
230V, 20% load: 94.6%
230V, 50% load: 95.5%
230V, 100% load: 93.8%
80 PLUS and Cybenetics Titanium
230V, 2% load: 73.6%
230V, 10% load: 91.7%
230V, 20% load: 94.6%
230V, 50% load: 95.5%
230V, 100% load: 93.8%
MTBF
>100,000 Hours
Protection
OTP (over temperature protection)
OCP (over current protection)
OPP (over power protection)
SCP (short circuit protection)
OVP (over Voltage protection)
UVP (under Voltage protection)
SIP (Surge & Inrush protection)
OCP (over current protection)
OPP (over power protection)
SCP (short circuit protection)
OVP (over Voltage protection)
UVP (under Voltage protection)
SIP (Surge & Inrush protection)
Colour
Black
Additional Features
See Overview
Package Contents
Screws
Cable ties
User manual
Cable ties
User manual
Weight/Dimensions
2.2 kg
(LxWxH) 175 x 150 x 86 mm
(LxWxH) 175 x 150 x 86 mm
Package Weight
To be confirmed
Warranty
10 Years
Full Box Quantity
4
