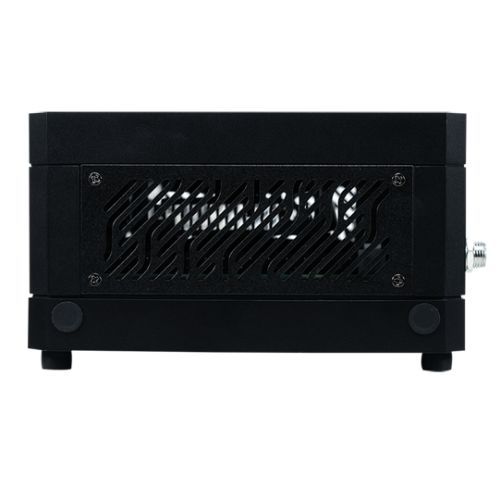

Palit Pandora NVIDIA Jetson Orin NX 16GB Super Mini AI Computer, 8-Core Arm CPU, 16GB DDR5, 128G SSD, 1024-Core Ampere GPU, Ubuntu

+ click images to enlarge

Data Sheet >

Stock Code

PCPALPAND16GB

Manufacturer

PALIT

Manufacturer Code

A002FV1P1

EAN Number

TBC

Printable Version

8 Available

You must be logged in to view pricing and place orders

Tower / Small Form Factor

Small Form Factor

Processor

Arm Cortex-A78AE (8-Core)

Processor Details

8-Core v8.2 64-Bit CPU
2MB L2 + 4MB L3

Graphics

1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores

Memory

16GB

Memory Details

128-bit LPDDR5
Total 102.4 GB/s bandwidth

Hard Drive

None

SSD Drive

128GB SSD

Drive Details

M.2 2280 PCIe Gen4

Optical Drive

None

Supported Drives

1 x M.2 2280 PCIe Gen4x2 Slot (Pre-Installed 128GB SSD)
1 x M.2 2280/3080 PCIe Gen4x4, Support SSD or Video Capture Cards

Operating System

Ubuntu

Front/Top I/O

1 x HDMI 2.0
2 x GB LAN DHCP Client
2 x USB3.2 Gen2 Type-A
1 x USB3.2 Gen2 Type-C (OTG)
2 x USB 2.0 Type-A
1 x Line In (3.5mm Phone Jack)
1 x Line Out (3.5mm Phone Jack)

LAN

GB LAN (x2)

Wireless

1 x M.2 2230 E Key PCIe Gen4x1+USB2.0 , Support WiFi Module.
1 x M.2 3042/3052 B Key USB3.2 Gen1, Support 5G/4G Wireless Module

Expansion

1 x Nano SIM Card Slot
8-Lane MIPI CSI-2

40 Pin Header:
1 x I2S
2 x I2C
2 x SPI
1 x UART
3 x GPIO

14 Pin Header:
1 x CAN Bus
1 x UART with CTS/RTS
1 x UART for Debug

Power Unit

DC input:12~36V

Keyboard and Mouse

Dimensions

145 x 123 x 66 mm
Main Board: 115 x 115 mm

Additional Features

NVIDIA Jetson Orin NX Super Ready
AI Performance: 157 / 78 TOPS (Sparse / Dense)
Supports External NVMe
JetPack: 6.2 or Higher
Operating Temperature: Standard Version: 0~60°C with Airflow
Storage Temperature: -20~80°C

See Overview for more details

Package Weight

1.9000 kg

Package Type

Retail

Warranty

2 Year Repair Warranty

Full Box Quantity
