Components > Graphics Cards

Palit RTX5060 Ti White OC, PCIe5, 8GB DDR7, HDMI, 3 DP, 2602MHz Clock, RGB Lighting, Overclocked, Compact Design

+ click images to enlarge

Stock Code

NVRTX5060TI8PALWHITEOC

Manufacturer

PALIT

Manufacturer Code

NE7506TU19P1-GB2062M

EAN Number

4710562245660

Printable Version

6 Available

You must be logged in to view pricing and place orders

Chipset Manufacturer

Nvidia

Interface

PCI Express 5.0

Graphics Chipset

Nvidia RTX 5060 Ti

Memory Size

8GB

Memory Type

DDR7

Memory Interface

128-bit

Engine Clock

Core Clock: 2407 MHz
Boost Clock: 2602 MHz

Memory Clock

28 Gbps

CUDA Cores / Stream Processors

4608 CUDA Cores

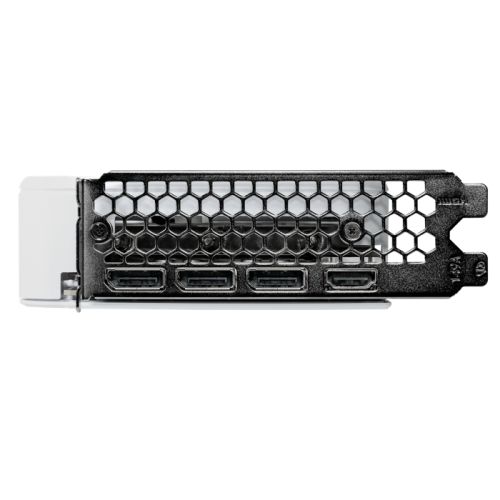

Outputs

1 x HDMI 2.1b
3 x DisplayPort 2.1b

HDCP Support

Yes

Resolution

Max Digital Resolution: 4K at 480Hz or 8K at 120Hz with DSC

DirectX Support

DirectX 12 Ultimate

Max Display Support

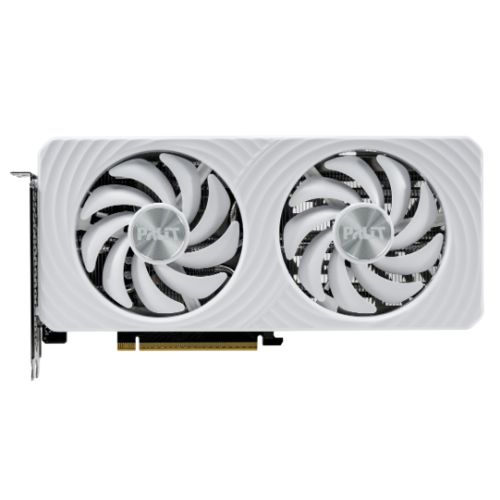

Cooling

Twin 95mm Fans
Composite Heat Pipe
0-dB Tech

PSU Requirements

600W or greater recommended

Connectors Required

1 x 8-pin power

Software

ThunderMaster

Lighting Effects

Yes

Dimensions

262.1 x 126.3 x 40.1 mm

Slot Size

2 Slot

Additional Features

See Overview

Package Type

Retail

Package Weight

2.2000 kg

Warranty

2 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
