Nanoleaf Multicolour Permanent ARGB Outdoor Lights Smarter Kit, 15 Metre, 16+ Million Colours, Trimmable, Reacts to Sound & Music, Built-In Controller

+ click images to enlarge

Stock Code

N7401K01-15POL

Manufacturer

NANOLEAF

Manufacturer Code

N7401K01-15POL

EAN Number

4895263600427

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Type

Smart Outdoor Lighting

LED Colour

RGB

Connectivity

Wi-Fi (2.4 GHz b/g/n), Bluetooth (BLE), Matter over WIFI

Features

30 Addressable LED Pucks
16+ Million Colours & Ultra Bright Tunable Whites
Use with Wi-Fi, Bluetooth, or Matter over Wi-Fi
Trimmable & Extendable Up to 147ft (45m) with Expansions
No. of Pucks / Light String Segment: 10
Trimmable: Yes
Addressability: Each LED puck is individually addressable
Lumen output of 1 LED Puck: 50 lumens
Colour Channel Configuration: Multicolor RGBCW
Colour Temperature: 2200 - 6500K

LED Configuration in the Puck: 3 Warm White + 3 Cool White + 1 RGB
Mic: Located on the Controller
Dimming Range: 1% - 100%
Control with Attached Controller, App or through a Smart Home Ecosystem

Compatibility

Nanoleaf App:
Control via Nanoleaf App (Android & iOS) on mobile/tablet or with the Nanoleaf Desktop App via Wi-Fi.

Voice Control & Smart Home Ecosystems:
Apple Home, Google Home, Amazon Alexa, Samsung SmartThings

Note:
Matter compatible smart home hub required to connect to a smart home ecosystem.

Dimensions

3 x 16.4ft (5m) Light Strings
Distance Between Pucks: 44cm
Size of Puck: 35 x 32mm
Wire Length (Power Supply Unit to Controller): 1m
Wire Length (Controller to Light String Connector): 4m
Click here for optional Expansion Pack

Buttons

Physical Controller
4 Physical Buttons:
Power
Scene
Brightness +
Brightness -

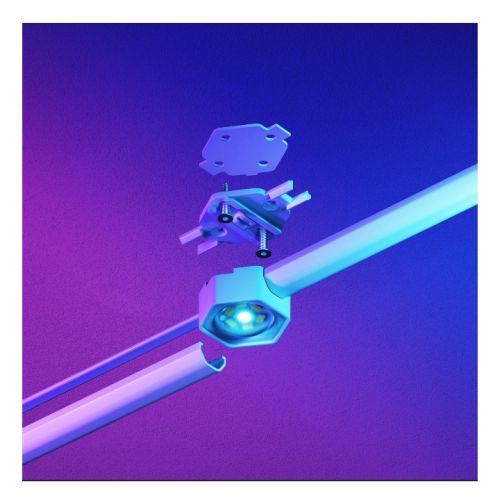

Mounting

Unique sliding mounting method (screwed)
Cable covers included
NOTE: Cutting and joining of the wires should only be done by a qualified professional.

Power

Rated Input: AC 100V-240V
Rated Output: DC 36V
Rated Power: 72W
Frequency: 50/60Hz
Rated Current: 2A

Suitable for Outdoor

Yes

Environment

Usability Environment: Outdoor
Working Temperature: -15°C to +40°C
UV Protective: Yes
Used in Humid Environment: Yes

IP Ratings:
IP67 : Controller
IP67 : LED Pucks
IP65 : Light String Connectors
IP67 : Power Supply Unit

Lifetime

25,000 hours

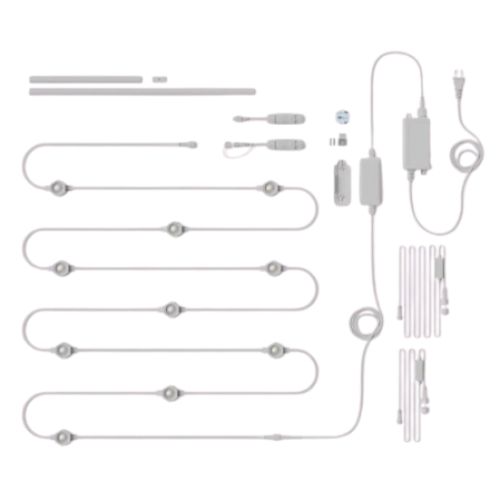

Package Contents

3 x Light Strings with Pucks 16.4ft (5m)
1 x Extension Cable 3.94ft (1.2m)
1 x Extension Cable 9.84ft (3m)
2 x Waterproof End Cap
1 x Female & Male Splicer
1 x H2 Drill Bit
1 x Installation Tool
1 x Controller
1 x Controller Mount
1 x Power Supply Unit

Long Cable Covers
Short Cable Covers
Counter Sunk Screws
Button Head Screws
Cable Clips & Cable Clip Covers
Spare Puck Mounts
Spare Mounting Tape

Click here for Add-On Kits

Package Type

Retail

Package Weight

3.1500 kg

Warranty

2 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
