Components > Motherboards

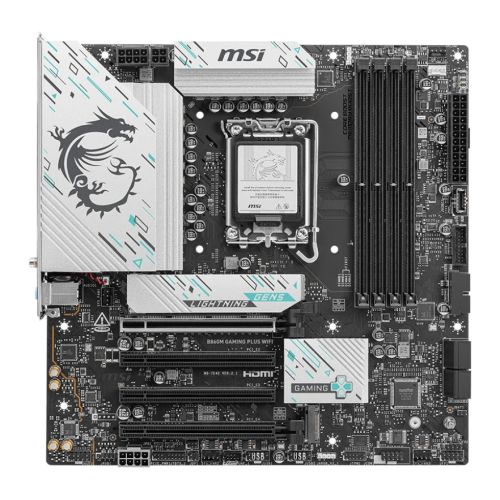

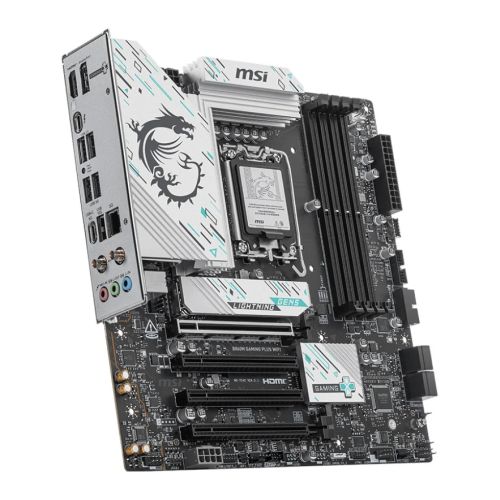

MSI B860M GAMING PLUS WIFI, Intel B860, 1851, Micro ATX, 4 DDR5, HDMI, DP, TB4, Wi-Fi 7, 5G LAN, 3x M.2

+ click images to enlarge

Stock Code

MSIMBB860MGAMINGPLUSWIFI

Manufacturer

MSI

Manufacturer Code

B860M GAMING PLUS WIFI

EAN Number

4711377286558

Printable Version

12 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1851

Chipset

Intel B860

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
Supports Non-ECC, Un-buffered memory
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports CUDIMM

RAM Slots

4 x DIMM

RAM Speeds

Up to 8800MT/s (OC)

Maximum Memory

256GB

Graphics

Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort
1 x Thunderbolt 4 supports DisplayPort and Thunderbolt video outputs

PCI/PCI Express

1 x PCIe 5.0 x16
1 x PCIe 4.0 x16
2 x PCIe 4.0 x1

Storage

4 x SATA III
3 x M.2

M.2_1 (2280/2260/2242) - PCIe 5.0 x4
M.2_2 (2280/2260) - PCIe 4.0 x4
M.2_3 (2280) - PCIe 4.0 x2

RAID

Supports RAID 0, 1, 5 and 10 for SATA storage devices

Wireless

Intel Killer BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4, MLO, 4KQAM

LAN

5GB LAN

Audio

Realtek ALC897 Codec
7.1-Channel High Definition Audio

USB Ports Supported

Rear:
1 x Thunderbolt 4 (USB Type-C)
1 x USB 10Gbps Type-A
1 x USB 5Gbps Type-C
2 x USB 5Gbps Type- A
2 x USB 2.0

Front:
1 x USB 10Gbps Type-C
4 x USB 5Gbps Type- A
4 x USB 2.0

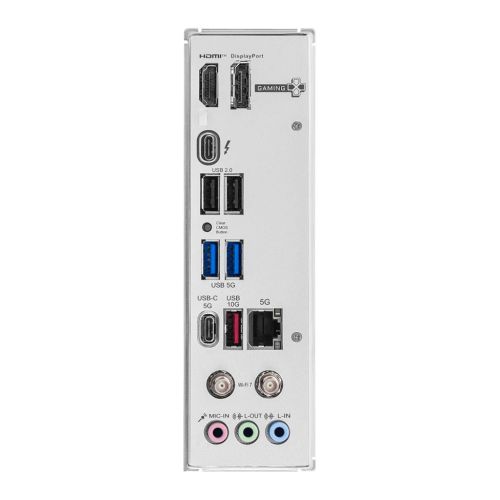

Back Panel I/O Ports

1 x Thunderbolt 4 (USB Type-C)
1 x USB 10Gbps Type-A
1 x USB 5Gbps Type-C
2 x USB 5Gbps Type- A
2 x USB 2.0
1 x DisplayPort 2.1
1 x HDMI 2.1
1 x RJ-45
1 x Audio Line In
1 x Audio Line Out
1 x Microphone In
2 x SMA Antenna

Internal I/O Connectors

1 x Thunderbolt5 card (JTBT5, support RTD3)
1 x Power (ATX_PWR)
2 x Power (CPU_PWR)
1 x Power (PCIE_PWR 8pin)
1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
3 x System Fan
1 x EZ Conn-header (JAF_1)
2 x Front Panel
1 x Chassis Intrusion
1 x Front Audio
1 x Com Port

1 x Tuning Controller (JDASH)
2 x Addressable V2 RGB LED
1 x RGB LED
1 x TPM pin TPM 2.0
4 x USB 2.0
4 x USB 5Gbps Type-A
1 x USB 10Gbps Type-C

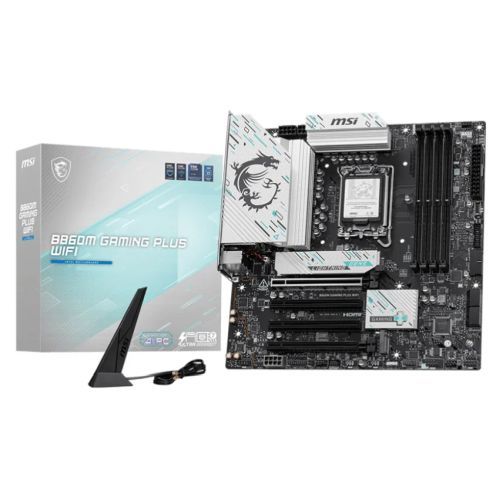

Accessories

Quick Installation Guide
EU Regulatory Notice
EZ Wi-Fi Antenna
1 to 2 EZ Conn-Cable (V1)
SATA Cable
EZ M.2 Clip II
EZ M.2 Clip II Remover
2 x M.2 Screw and Standoff Sets

Additional Features

See Overview

Package Type

Retail

Package Weight

To be confirmed

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
