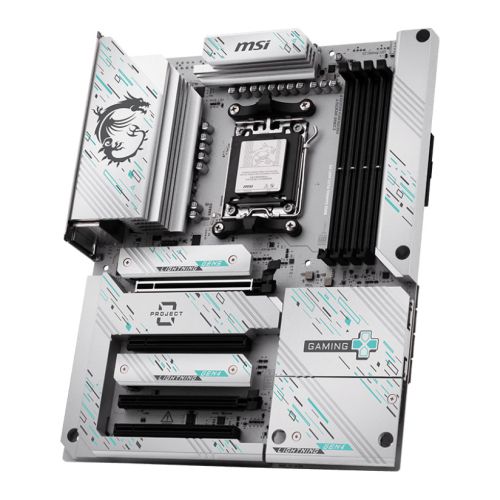

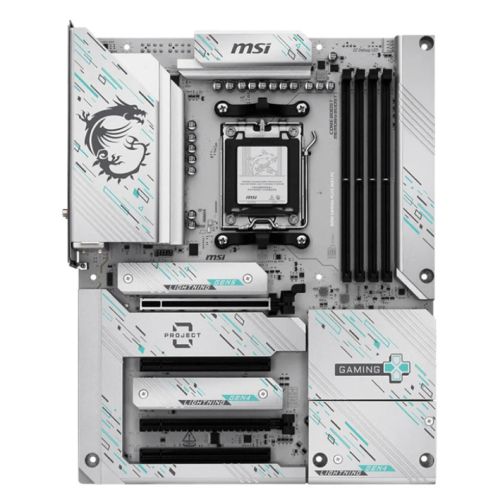

MSI B850 GAMING PLUS WIFI PZ, AMD B850, AM5, ATX, 4 DDR5, DP, Wi-Fi 7, 5G LAN, 3x M.2, Back-Connect Design

+ click images to enlarge

Stock Code

MSIMBB850GAMPLUSWIFIPZ

Manufacturer

MSI

Manufacturer Code

B850 GAMING PLUS WIFI PZ

EAN Number

4711377365284

Printable Version

30 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

ATX

Socket

AMD AM5

Chipset

AMD B850

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
Supports Non-ECC, Un-buffered memory
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO
Supports CUDIMM, Clock Driver bypass mode only

RAM Slots

4 x DIMM

RAM Speeds

Up to 8200+MT/s (OC)

Maximum Memory

256GB

Graphics

Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports

1 x DisplayPort

PCI/PCI Express

1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
2 x PCIe 3.0 x1
*Specifications may vary between CPU types

Storage

4 x SATA III
3 x M.2

Ryzen 9000 & 7000 Series CPUs:
M.2_1 (2280/2260) - PCIe 5.0 x4
M.2_2 (2280/2260) - PCIe 4.0 x4

Ryzen 8000 Series CPUs:
M.2_1 (2280/2260) - PCIe 4.0 x4
M.2_2 (2280/2260) - PCIe 4.0 x4/x2

Chipset:
M.2_3 (2280/2260) - PCIe 4.0 x2

RAID

Supports RAID 0, 1 and 10 for SATA storage devices
Supports RAID 0, 1 and 5 for M.2 NVMe storage devices

Wireless

Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4, MLO, 4KQAM

LAN

5GB LAN

Audio

Realtek ALC897
7.1-Channel High Definition Audio

USB Ports Supported

Rear:
2 x USB 10Gbps Type-C
1 x USB 10Gbps Type-A
1 x USB 5Gbps Type-A
4 x USB 2.0

Front:
1 x USB 5Gbps Type-C
4 x USB 5Gbps Type-A
4 x USB 2.0

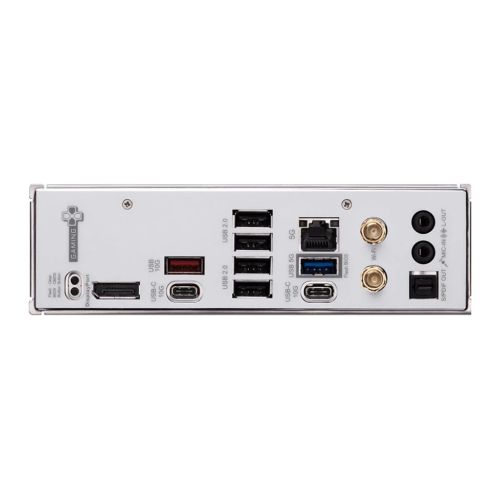

Back Panel I/O Ports

2 x USB 10Gbps Type-C
1 x USB 10Gbps Type-A
1 x USB 5Gbps Type-A
4 x USB 2.0
1 x DisplayPort 1.2
1 x RJ-45
1 x Audio Line Out
1 x Microphone In
1 x S/PDIF Optical Out
2 x SMA Antenna

Internal I/O Connectors

1 x Power (ATX_PWR)
2 x Power (CPU_PWR)
1 x Power (PCIE_PWR 8pin)
1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
4 x System Fan
1 x EZ Conn-header (JAF_1)
2 x Front Panel
1 x Chassis Intrusion
1 x Front Audio
1 x Com Port
1 x Tuning Controller

3 x Addressable V2 RGB LED
1 x RGB LED
1 x TPM pin TPM 2.0
4 x USB 2.0
4 x USB 5Gbps Type-A
1 x USB 5Gbps Type-C

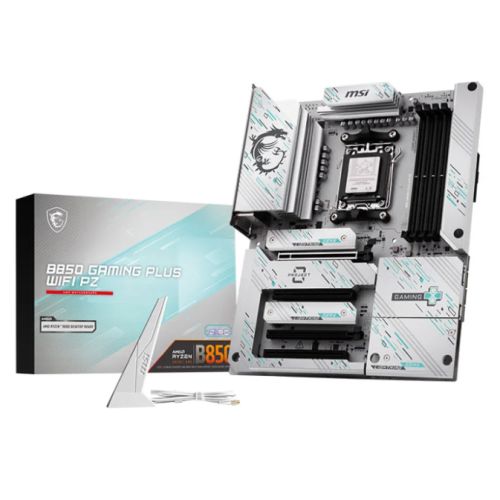

Accessories

Quick Installation Guide
EU Regulatory Notice
EZ Wi-Fi Antenna
SATA Cable
3 x EZ M.2 Clip II
EZ M.2 Clip II Remover
1 to 2 EZ Conn-Cable (V1)

Additional Features

See Overview

Package Type

Retail

Package Weight

To be confirmed

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
