Networking > Media Converters / Racks

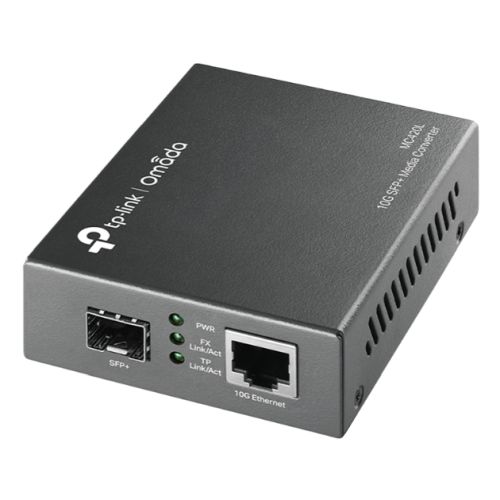

TP-LINK (MC420L) Omada 10G Multi-Gigabit SFP Media Converter, Auto-negotiation of Half-Duplex / Full-Duplex
Stock Code
CON-MC420L
Manufacturer
Manufacturer Code
MC420L
EAN Number
1210002607834
24 Available
You must be logged in to view pricing and place orders
Type
SFP Media Converter
Enclosure Type
External
Basic Functions
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Maximum transmission distance depends on the inserting SFP module
Maximum transmission distance depends on the inserting SFP module
Ports
1 x SFP+ port
1 x 1G/2.5G/5G/10Gbps RJ45 port
1 x 1G/2.5G/5G/10Gbps RJ45 port
Standards and Protocols
IEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x
Wave Length
SFP module dependant
Network Media 10GBASE-R
Multi-mode/Single-mode SFP+ module
Network Media 10BASE-T
1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m);
10GBASE-T: UTP cat.6(max. 55m), STP Cat. 6 or above(max. 100m)
10GBASE-T: UTP cat.6(max. 55m), STP Cat. 6 or above(max. 100m)
Network Media 1000BASE-T
UTP category 5, 5e cable (maxium 100m)
EIA/TIA-568 100Ohm STP (maximum 100m)
EIA/TIA-568 100Ohm STP (maximum 100m)
Network Media 1000BASE-X
Multi-mode/Single-mode SFP module
LED Indicators
PWR, Link/Act
Dimensions (WxDxH)
94.5 x 73.0 x 27.0 mm
Power Supply
External Power Adapter
Max Power Consumption: 4.12W
Max Power Consumption: 4.12W
Environment
Operating Temperature: 0°C~50°C
Storage Temperature: -40°C~70°C(-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Storage Temperature: -40°C~70°C(-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Contents
MC420L
Power Adapter
Installation Guide
Power Adapter
Installation Guide
Package Type
Retail
Package Weight
0.4400 kg
Warranty
2 Years
Full Box Quantity
30
Manufacturer Link
