Components > Cases

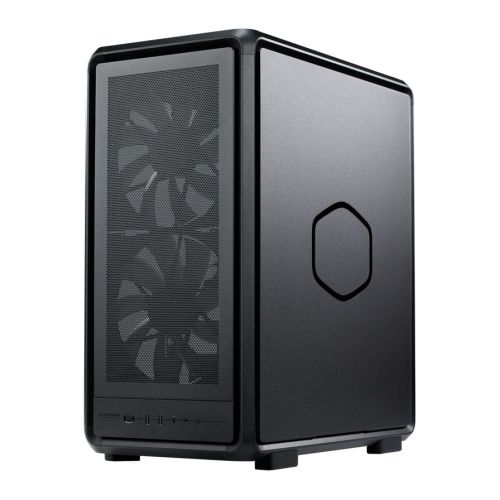

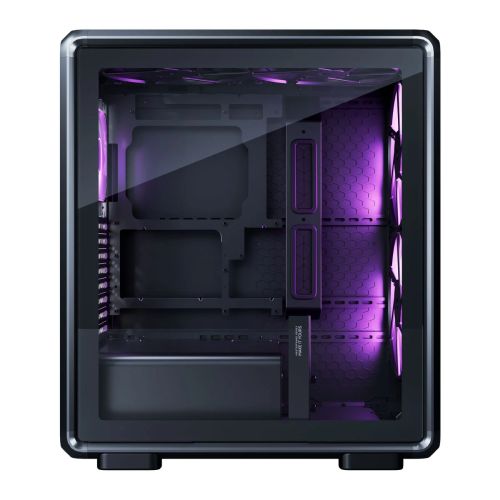

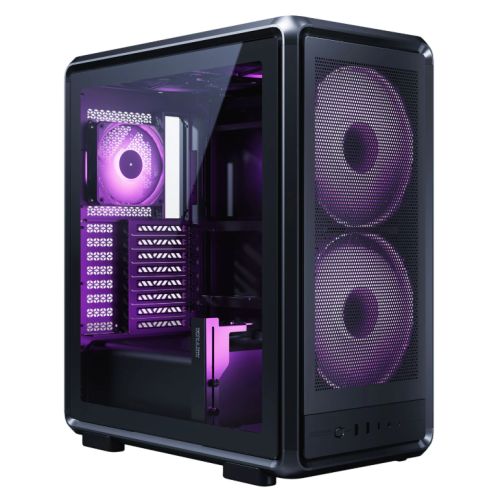

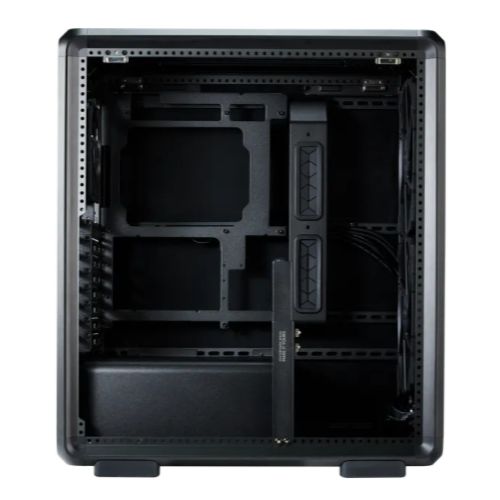

Cooler Master MasterFrame 500 Mesh ARGB Modular Open-Frame ATX Case w/ Glass Side, 3x ARGB Fans, FreeForm 2.0 Exo-Structure, USB-C 20Gbps, Black
+ click images to enlarge
Stock Code
CAA-CMMASTFRAM500ARGB
Manufacturer
Manufacturer Code
MF500M-KHNN-S01
EAN Number
4719512160954
8 Available
You must be logged in to view pricing and place orders
Form Factor
ATX
Power Supply Wattage
No PSU
Motherboard Support
Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* (*Conditional Support)
Connectors / Controls
1 x USB 3.2 Gen 2x2 Type C
2 x USB 3.2 Gen 1 Type A
1 x 3.5mm Headset Jack (Audio+Mic)
2 x USB 3.2 Gen 1 Type A
1 x 3.5mm Headset Jack (Audio+Mic)
Drive Bays
1 (Bottom) x 2.5" / 3.5" Drive Bays (or SSD)
1 x Preinstalled 3.5" / 2.5" Drive Bay (or SSD)
1 x Preinstalled 3.5" / 2.5" Drive Bay (or SSD)
Expansion Slots
8 Expansion Slots
Cooling System
Included:
Front: 2 x 200mm SickleFlow 200 ARGB PWM Fans
Rear: 1 x 120mm ARGB PWM Fan
Fan Mounts:
Front: 3 x 120 / 2 x 140 / 2 x 180 / 2 x 200 mm
Top: 3 x 120 / 2 x 140 / 2 x 180 / 2 x 200 mm
Rear: 1 x 120 mm
Bottom: 3 x 120 / 3 x 140 mm
Front: 2 x 200mm SickleFlow 200 ARGB PWM Fans
Rear: 1 x 120mm ARGB PWM Fan
Fan Mounts:
Front: 3 x 120 / 2 x 140 / 2 x 180 / 2 x 200 mm
Top: 3 x 120 / 2 x 140 / 2 x 180 / 2 x 200 mm
Rear: 1 x 120 mm
Bottom: 3 x 120 / 3 x 140 mm
Radiator Support:
Front: Up to 360 mm
Top: Up to 360 mm
Rear: 120 mm
Colour
Black
Material
Exterior: SGCC Steel, Aluminium
Side Panel (Right / Left): Tempered Glass
Side Panel (Right / Left): Tempered Glass
Compatibility
GPU Clearance: 390 mm
CPU Clearance: 190 mm
PSU Clearance: 235 mm
Cable Routing (Behind MB Tray): 43 mm
CPU Clearance: 190 mm
PSU Clearance: 235 mm
Cable Routing (Behind MB Tray): 43 mm
Weight/Dimensions
(LxWxH) 471 x 261 x 544 mm (Incl. Protrusions)
(LxWxH) 471 x 261 x 531 mm (Excl. Protrusions)
Volume (incl. Protrusions): 60.9 L
(LxWxH) 471 x 261 x 531 mm (Excl. Protrusions)
Volume (incl. Protrusions): 60.9 L
Additional Features
FreeForm 2.0 Exo-Structure for Flexible Configuration Options
GPU Support Bracket included
Tool-Free Panel Removal
See Overview for more details
GPU Support Bracket included
Tool-Free Panel Removal
See Overview for more details
Package Weight
15.2000 kg
Warranty
2 Years
Manufacturer Link
