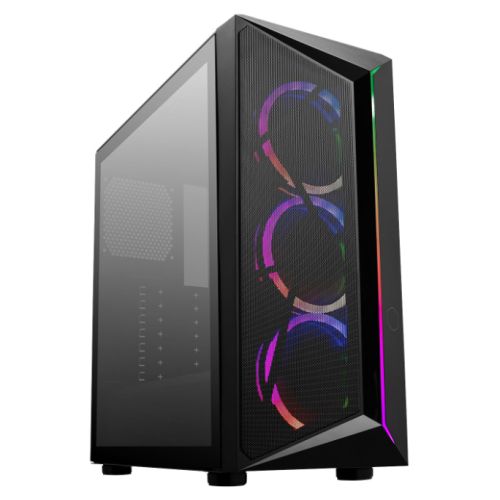

Cooler Master CMP 510 Gaming Case w/ Glass Side, ATX, 3x ARGB Fans, ARGB Strip, Mesh Front, Breathable PSU Shroud, Black

+ click images to enlarge

Stock Code

CAA-CMCP510-Z

Manufacturer

COOLER MASTER

Manufacturer Code

CP510-KGNN-S00

EAN Number

4719512118450

Printable Version

29 Available

799 more available - 2 to 3 day lead time

You must be logged in to view pricing and place orders

Form Factor

ATX

Power Supply Wattage

No PSU

Motherboard Support

ATX, Micro ATX, Mini ITX

Connectors / Controls

1 x USB 3.2 Gen 1 Type-A,
1 x USB 2.0
1 x 3.5mm Headset Jack (Audio+Mic)
1 x ARGB Controller

Drive Bays

2 x 2.5" / 3.5" Drive Bays (Combo)
2 x 2.5" Drive Bays

Expansion Slots

7 Expansion Slots

Cooling System

Included:
Front: 3 x 120mm ARGB Fans

Fan Mounts:
Front: 3 x 120 / 2 x 140 mm
Top: 2 x 120 / 2 x 140 mm
Rear: 1 x 120 mm

Radiator Options:
Front: Up to 280 mm
Top: Up to 240 mm (Memory bar height limit 35mm)
Rear: 120 mm

Colour

Black

Material

Steel, Plastic, Tempered Glass (Left Side Panel)

Compatibility

GPU Clearance:
350 mm (without front fans & radiator)

CPU Clearance:
161 mm

PSU Clearance:
160 mm (Bottom Mount, ATX)

Cable Routing:
18.5 mm

Weight/Dimensions

(LxWxH) 445 x 204 x 463 mm (Incl. Protrusions)
(LxWxH) 436 x 204 x 448 mm (Excl. Protrusions)
39.85L (exlc. Protrusions)

Additional Features

Large Filtered Intakes
Front ARGB Strip
Full Black Coating
Breathable Power Supply Shroud

See Overview for more details

Package Weight

7.1300 kg

Warranty

2 Years
