Components > Motherboards

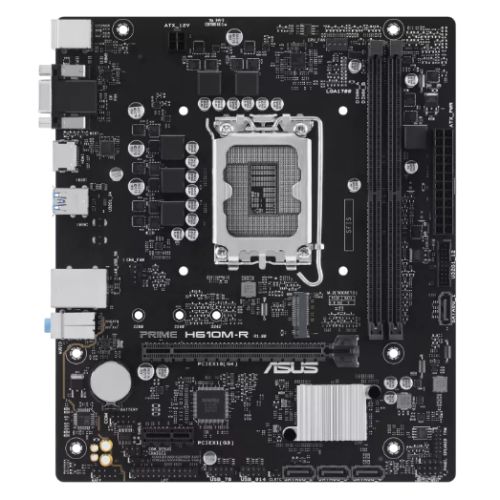

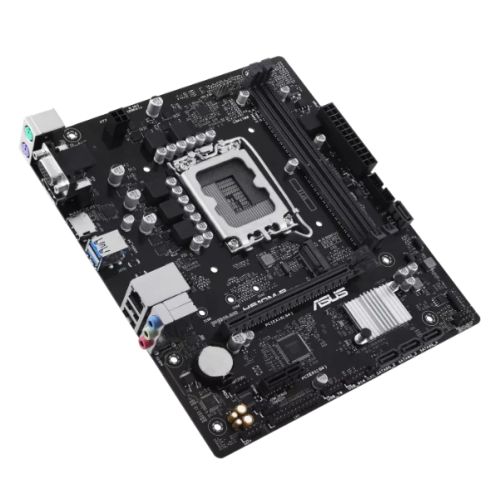

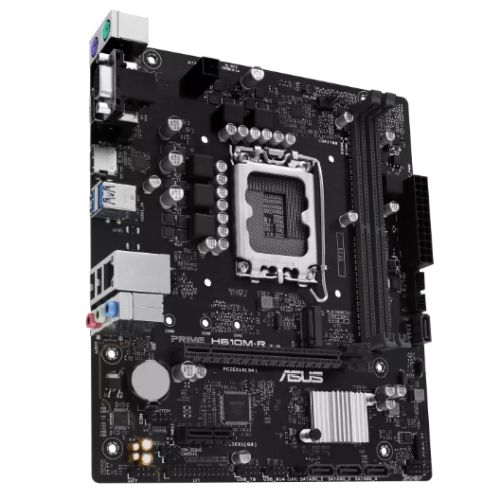

ASUS PRIME H610M-R-SI, Intel H610, 1700, Micro ATX, 2 DDR5, VGA, HDMI, DP, 1x M.2 - System Integrator Board, White Box

+ click images to enlarge

Stock Code

AUMBH610MRSI

Manufacturer

ASUS

Manufacturer Code

90MB1GL0-M0ECY0

EAN Number

4711387321515

Printable Version

3 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1700

Chipset

Intel H610

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
Non-ECC, Un-buffered Memory*
Supports Intel XMP

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM Slots

2 x DIMM

RAM Speeds

5600/5400/5200/5000/4800 MHz

Maximum Memory

96GB

Graphics

Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports

1 x VGA
1 x HDMI
1 x DisplayPort

Multi-GPU Support

PCI/PCI Express

1 x PCIe 4.0 x16
1 x PCIe 3.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 3.0 x4

Wireless

LAN

GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
2 x USB 5Gbps Type-A
4 x USB 2.0

Front:
2 x USB 5Gbps
4 x USB 2.0

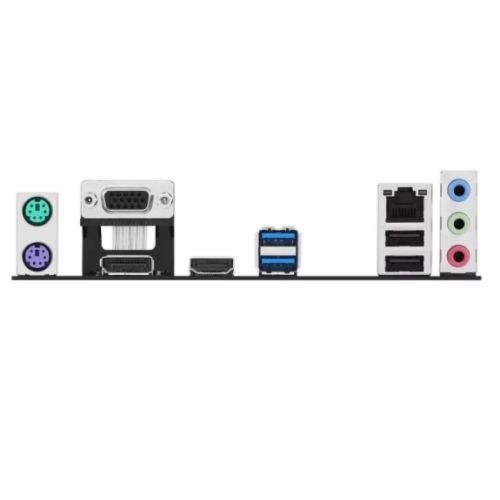

Back Panel I/O Ports

2 x USB 5Gbps Type-A
4 x USB 2.0
1 x DisplayPort
1 x VGA
1 x HDMI
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard
1 x PS/2 Mouse

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 4-pin +12V
1 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x Clear CMOS
1 x Chassis Intrusion
1 x COM Port
1 x Front Panel Audio

1 x LPT
1 x Speaker
1 x SPI TPM (14-1 pin)
1 x 10-1 pin System Panel

Accessories

2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 ANCHOR
1 x User guide

Additional Features

See Overview

Package Type

White Box

Package Weight

0.9000 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
