Components > Motherboards

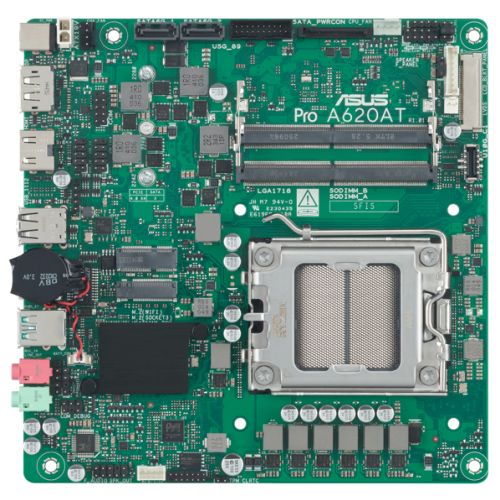

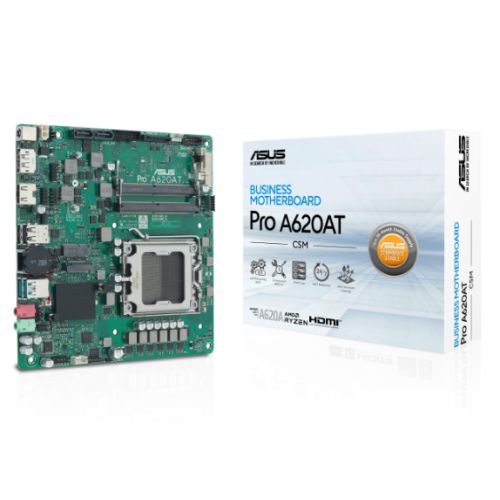

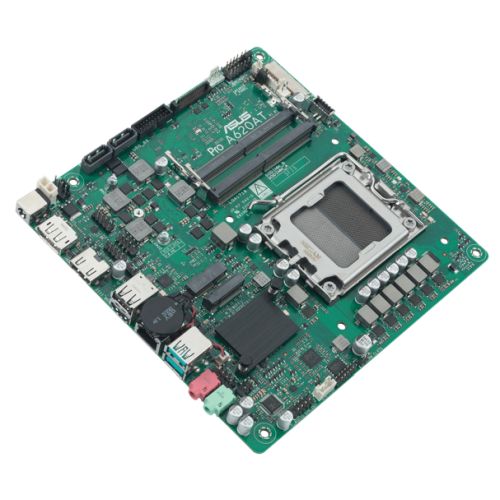

Asus PRO A620AT-CSM - Corporate Stable Model, AMD A620A, AM5, Thin Mini ITX, 2 DDR5, HDMI, DP, LVDS, 19v DC in, 1x M.2

+ click images to enlarge

Stock Code

AUMBA620ATPROCSM

Manufacturer

ASUS

Manufacturer Code

90MB1L5M-M0EAYC

EAN Number

4711636116053

Printable Version

18 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

Thin Mini ITX

Socket

AMD AM5

Chipset

AMD A620A

CPU Support

Click here for CPU support

RAM Technology

DDR5 SODIMM (Dual Channel)
CC and Non-ECC, Un-buffered Memory*
ASUS Enhanced Memory Profile (AEMP)

*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

RAM Slots

2 x SODIMM

Maximum Memory

128GB

Graphics

Integrated Graphics*
Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort
1 x LVDS

Storage

2 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4

Wireless

LAN

GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
2 x USB 10Gbps Type-A
2 x USB 2.0 x Type-A

Front:
1 x USB 10Gbps Type-C
2 x USB 5Gbps
5 x USB 2.0

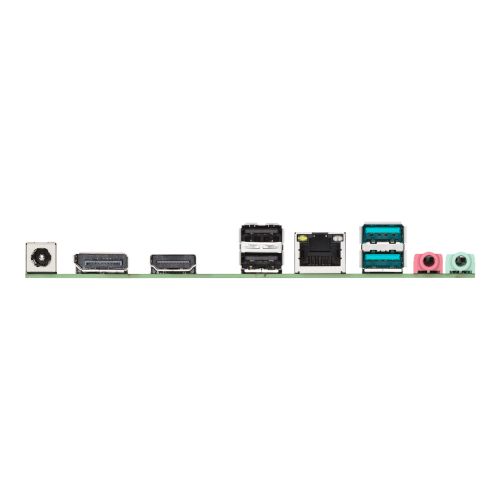

Back Panel I/O Ports

2 x USB 10Gbps Type-A
2 x USB 2.0 x Type-A
1 x DisplayPort
1 x HDMI
1 x RTL8111EPV-CG Ethernet (DASH LAN)
2 x Audio jacks
1 x DC power connector (supports 19V)

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin Chassis Fan
1 x 2-pin +19V
1 x SATA power
1 x M.2 (Key M)
2 x SATA 6Gb/s
1 x USB 10Gbps USB Type-C
1 x USB 5Gbps
2 x USB 2.0
1 x USB 2.0
1 x Stereo Speaker
1 x DMIC

1 x Backlight Inverter Voltage Selection
1 x FPD Brightness
1 x Panel Voltage Selection
1 x Panel Off
1 x Clear CMOS
1 x Chassis Intrusion
1 x COM Port
1 x Front Panel Audio
1 x COM Debug
1 x LVDS

1 x M.2 slot (Key E)
1 x Speaker
1 x SPI TPM (14-1 pin)
1 x 10-1 pin Front Panel System

Accessories

2 x SATA 6Gb/s cables
1 x SATA power cable
2 x I/O shields
1 x ACC Express activation key card
1 x Quick start guide

Additional Features

See Overview

Package Type

Retail

Package Weight

1.1000 kg

Warranty

3 Years

Full Box Quantity
