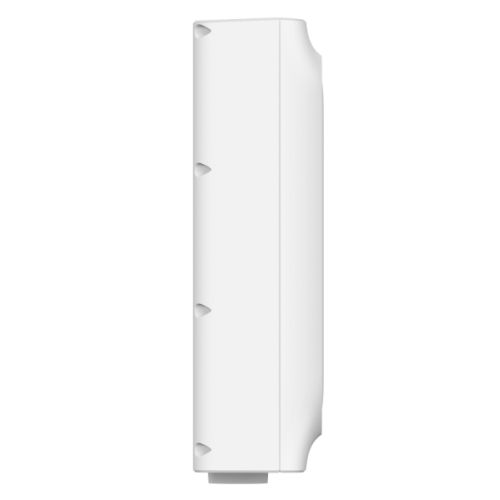

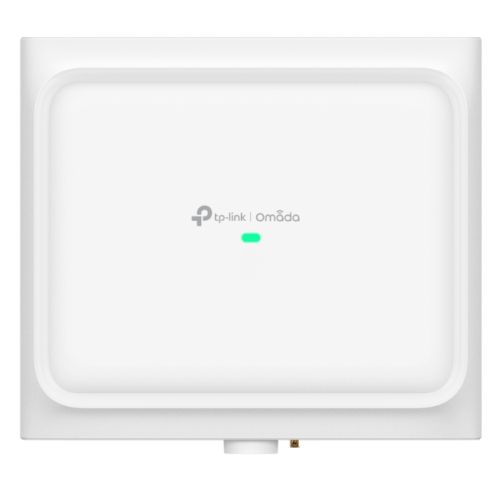

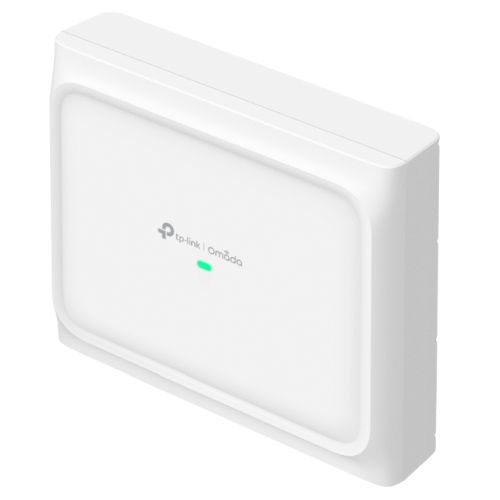

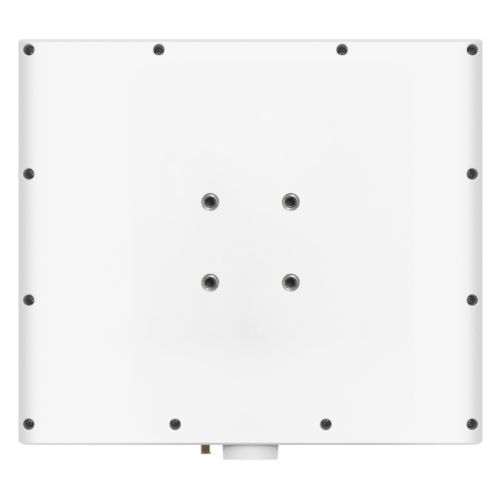

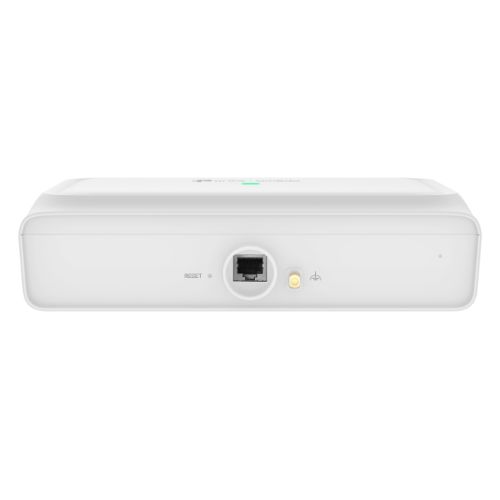

TP-LINK (EAP650 D30-OUTDOOR) Omada AX3000 Indoor/Outdoor Wi-Fi 6 Access Point, Directional Ultra-Range Coverage, PoE, Mesh Technology

+ click images to enlarge

Stock Code

AP-3000TPEAP650D30OUTDOOR

Manufacturer

TP-LINK

Manufacturer Code

EAP650 D30-OUTDOOR

EAN Number

1210002612739

Printable Version

6 Available

You must be logged in to view pricing and place orders

Primary Function

Access Point

Bands

Dual Band

Wi-Fi Rating

AX3000

Max Single Band Wi-Fi Rate

2402 Mbps

Max Wired Transfer Rate

10/100/1000 Mbps

Interface(s)

1 x Gigabit Ethernet (RJ-45)
supports 802.3at PoE or 48V Passive PoE

Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax

Antenna(s)

Built-in Directional Antennas:
2.4 GHz: 2x 12 dBi
5 GHz: 2x 15 dBi
Beamwidth: 30° Horizontal; 30° Vertical

Button(s)

Reset

Power Supply

802.3at PoE
48V Passive PoE

Power Consumption

12.5W (802.3at PoE or Passive PoE)

Dimensions

(WxDxH) 207.5 x 58 x 230 mm

Suitable for Outdoor

Yes (Outdoor)

Frequency

2.4GHz: Up to 574Mbps
5GHz: Up to 2402Mbps

EIRP

< 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP)

Wireless Functions

1024-QAM
DL/UL OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 on each band)
Enable/Disable Wireless Radio
Enable/Disable SSID Broadcast
Guest Network
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
2 x 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO
Omada Mesh§
Seamless Roaming(802.11k/v/r)
Band Steering
Load Balance
Airtime Fairness
Beamforming
RADIUS Accounting
MAC Authentication
Reboot Schedule

Wireless Schedule
Wireless Statistics
Static IP/Dynamic IP

Security

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Wireless Range

Directional Ultra-Range Coverage
2.4 GHz up to 1181 ft / 360 m
5 GHz up to 2953 ft / 900 m

Quality of Service

QoS (WMM)

Management

Omada App
Restore & Backup
NTP
Centralized Management - Omada controller
Cloud Access - requires Omada controller
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog
SSH
Web-based Management
Multi-site Management
Zero-Touch Provisioning - requires Omada Cloud-Based controller

Additional Features

See Overview

Environment

Operating Temperature: -30–70°C (-22–158°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents

Access Point EAP650 D30-Outdoor
Mounting Kits
Installation Guide

Package Type

Retail

Package Weight

2.1300 kg

Warranty

2 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
