Primary Function
Range Extender
Max Single Band Wi-Fi Rate
433 Mbps
Max Wired Transfer Rate
10/100 Mbps
Interface(s)
1 x 10/100M Ethernet Port (RJ45)
Wireless Standards
IEEE802.11ac,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Button(s)
RE (Range Extender) Button, Reset Button
Power Consumption
About 6.5W
Dimensions
110.0 x 65.8 x 75.2mm
Frequency
5GHz: Up to 433Mbps
2.4GHz: Up to 300Mpbs
Wireless Modes
Range Extender
Wireless Functions
WMM (Wi-Fi Multimedia)
Wireless Statistic
Domain Login Function
Security
64/128/152-bit WEP
WPA-PSK / WPA2-PSK
Environment
Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Contents
AC750 WiFi Range Extender RE200
RJ-45 Ethernet Cable
Resource CD
Quick Installation Guide

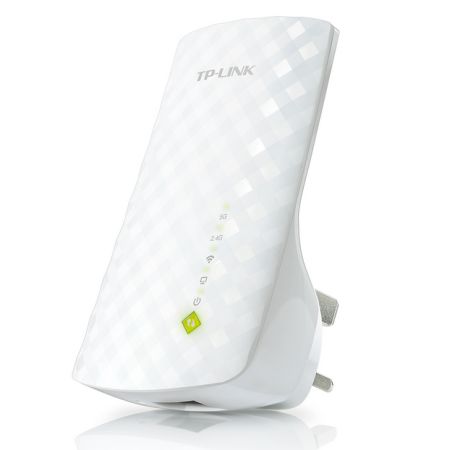

RE200
AC750 WiFi Range Extender
- Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
- Compatible with 802.11 b/g/n and 802.11ac WiFi devices
- Dual band speeds up to 750Mbps
- Miniature size and wall-mounted design make it easy to deploy and move flexibly
- Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
Boost Your Router Coverage to Expanded Dual Band WiFi
RE200 expands your existing WiFi coverage with next generation 11AC WiFi technology. It works with any standard WiFi router and creates stronger dual band connections in hard-to-reach areas, allowing you to enjoy seamless wireless coverage throughout your home or office.
Next Generation 11AC WiFi
Create faster access for 802.11 b/g/n and 802.11ac WiFi devices. RE200 delivers fast speeds of dual band WiFi up to 750Mbps and provides reliable connections for laptops, smartphones, tablets and other wireless-enabled devices.
*Actual WiFi speeds may vary due to different user environments.
Enjoy Super Speeds in High Speed Mode
With High-Speed technology, RE200 makes the best use of both WiFi bands to establish super speedy connections — ideal for HD video streaming, online gaming and other bandwidth-intensive tasks.
*In high speed mode, RE200 offers maximum performance but limits connection to one band (2.4GHz or 5GHz).
Easy Setup and Flexible Placement
Press the WPS button on your router and the Range Extender button on your RE200 within 2 minutes to easily connect to the network. Once connected with an existing router, you can simply unplug and plug the RE200 back in anywhere within the wireless range of the existing router, without needing to configure the extender again.
*The band used when connecting via the WPS buttons is sometimes indefinite and dependant on the settings on your router. If you want to establish a WPS connection in both 2.4GHz and 5GHz bands, please go to the RE200’s web configuration page to configure this.
Entertainment Adapter
The RE200's single Ethernet port allows the Extender to function as a wireless adapter to connect wired devices like Blu-ray® players, gaming consoles, DVRs and Internet TVs. At the same time, the device can share the wireless network as well.
