Networking > Routers / Mesh Systems

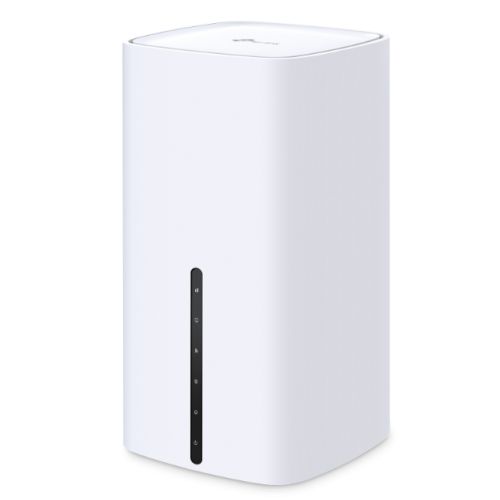

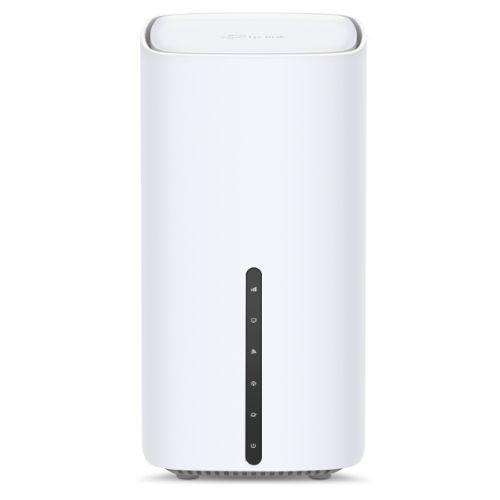

TP-LINK (Archer NX500) 5G AX3000 Wireless Dual Band Gigabit Router, EasyMesh Compatible, GB WAN/LAN
+ click images to enlarge
Promotional Pricing available
Contact your account manager for details
Contact your account manager for details
Ends 31/10/25
Stock Code
ROU-AX3000TP5GDUAL-GB
Manufacturer
Manufacturer Code
ARCHER NX500
EAN Number
1210002601634
Out of Stock: call for information
You must be logged in to view pricing and place orders
Type
5G Router
Connectivity
Wireless
Wi-Fi Rating
AX3000
Max Single Band Wi-Fi Rate
2402 Mbps
Max Wired Transfer Rate
10/100/1000 Mbps
Bands
Dual Band
Signal Rate
2.4GHz: 574 Mbps
5GHz: 2402 Mbps
5G: Download speeds up to 4.67Gbps
5GHz: 2402 Mbps
5G: Download speeds up to 4.67Gbps

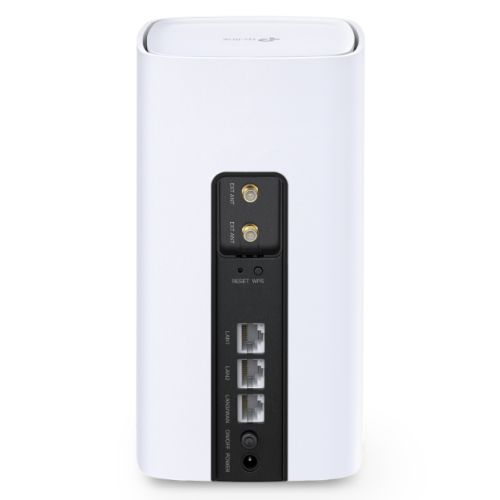

Interface(s)
1 x 10/100/1000 Mbps LAN/WAN Port
2 x 10/100/1000 Mbps LAN Ports
1 x Nano SIM Card Slot
2 x External SMA-F Antenna Interface
2 x 10/100/1000 Mbps LAN Ports
1 x Nano SIM Card Slot
2 x External SMA-F Antenna Interface
Standards
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
Frequency
2.4GHz and 5GHz
Button(s)
WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button
Power Supply
Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
Output parameter 12VDC 2A
Output parameter 12VDC 2A
Antenna(s)
8 x 5G/LTE Internal Antennas
3 x Wi-Fi Internal Antennas
3 x Wi-Fi Internal Antennas
Dimensions
99 x 99 x 190 mm
Wireless Features
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
Statistics
Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
DoS
IPv4 SPI Firewall
IPv6 Firewall
IP and MAC Address Binding
Access Control
DoS
IPv4 SPI Firewall
IPv6 Firewall
IP and MAC Address Binding
Access Control
DHCP
Server, DHCP Client List, Address Reservation
Port/NAT Forwarding
ALG, Virtual Server, Port Triggering, UPnP, DMZ
VPN Support
PPTP VPN, IPSec VPN , OpenVPN
Management
TP-Link Cloud, Local Management, Remote Management
Dynamic DNS
TP-Link, DynDns, NO-IP
USB Application
-
Additional Features
See Overview
Environment
Operating Temperature: 0°C~40°C
Storage Temperature: -40°C~70°C
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
Storage Temperature: -40°C~70°C
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Type
Retail
Package Weight
1.0700 kg
Warranty
3 Years
Full Box Quantity
8
Manufacturer Link
