Components > Graphics Cards

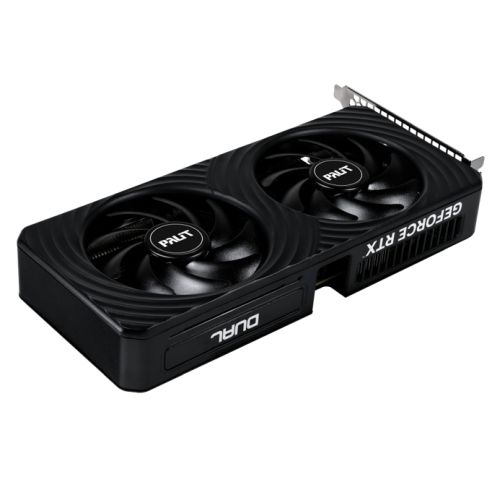

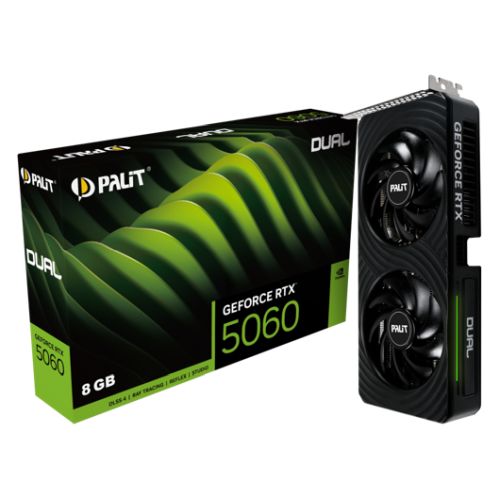

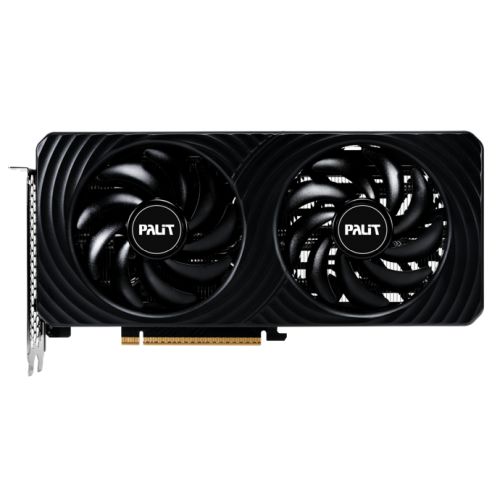

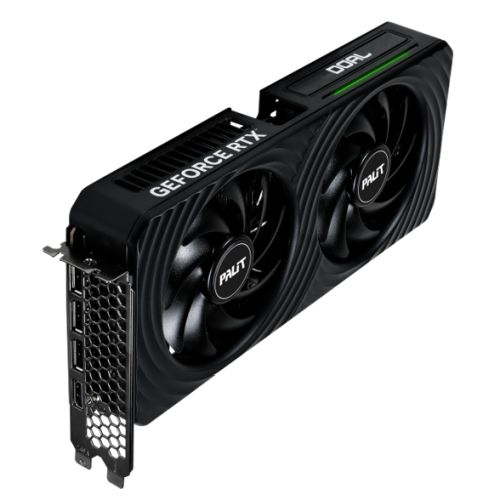

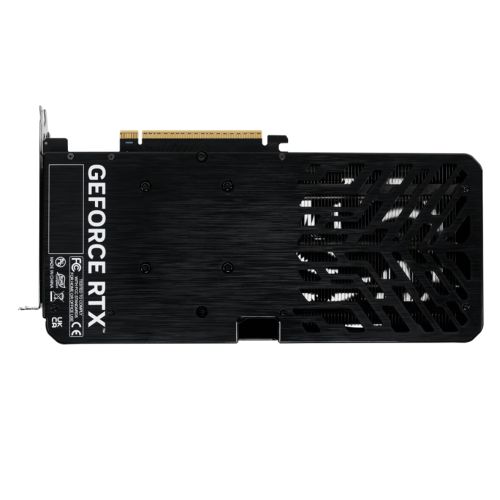

Palit RTX5060 DUAL, PCIe5, 8GB DDR7, HDMI, 3 DP, 2497MHz Clock, RGB Lighting

+ click images to enlarge

Stock Code

NVRTX50608PALDUAL

Manufacturer

PALIT

Manufacturer Code

NE75060019P1-GB2063D

EAN Number

4710562245363

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Chipset Manufacturer

Nvidia

Interface

PCI Express 5.0

Graphics Chipset

Nvidia RTX 5060

Memory Size

8GB

Memory Type

DDR7

Memory Interface

128-bit

Engine Clock

Graphics Clock: 2280 MHz
Boost Clock: 2497 MHz

Memory Clock

28 Gbps

CUDA Cores / Stream Processors

3840 CUDA Cores

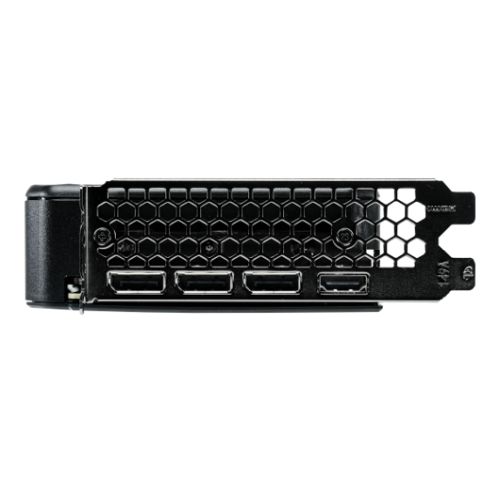

Outputs

1 x HDMI 2.1b
3 x DisplayPort 2.1b

HDCP Support

Yes

Resolution

Max Digital Resolution: 4K at 480Hz or 8K at 120Hz with DSC

DirectX Support

DirectX 12 Ultimate

Max Display Support

Cooling

Twin 95mm Fans
Composite Heat Pipe
0-dB Tech

PSU Requirements

550W or greater recommended

Connectors Required

1 x 8-pin power

Software

ThunderMaster

Additional Features

See Overview

Dimensions

262.1 x 126.3 x 40.1 mm

Slot Size

2 Slot

Package Type

Retail

Package Weight

2.2000 kg

Warranty

2 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
