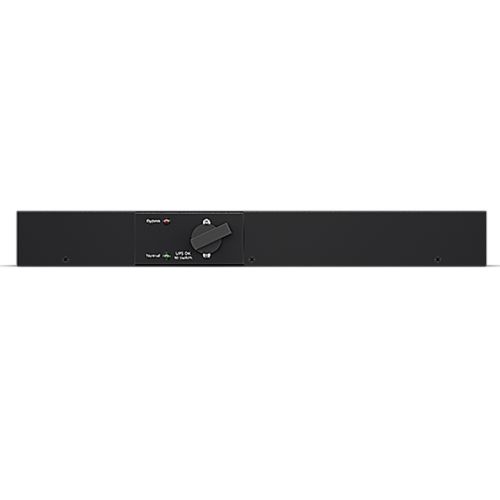

CyberPower Maintenance By-Pass IEC Outlet, Compatible with OL 1-3KVA Models, 1U Rackmount
+ click images to enlarge

Win a £500 Amazon Voucher!
Click here for details



Stock Code
UPSACC-MBP20HVIEC6A
Manufacturer
CYBERPOWER
Manufacturer Code
MBP20HVIEC6A
EAN Number
4711027799858
Printable Version
Out of Stock: call for information
You must be logged in to view pricing and place orders
Type
Maintenance Bypass PDU
Input
Input Voltage Range: 200 ~ 240 Vac
Rated Input Current: 16A
Utility Power: IEC C20
UPS Power Input: IEC C19
UPS Outlet: IEC C20
Output

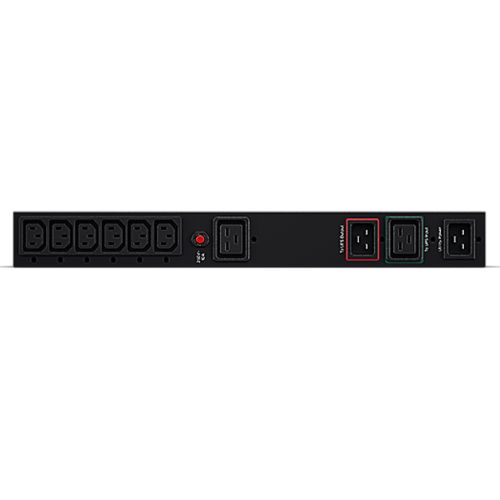

Outlet Type: IEC C19 x 1, IEC C13 x 6
Typical Transfer Time: <4 ms
Cascading: Yes, IEC 16A Output Socket
LCD Information Display
-
LED Indicators
Normal Status (Green Colour)
Bypass Status (Red Colour)
Form Factor
>1U Rackmount
Enclosure Construction
Steel
Weight/Dimensions
1.3 kg
(WxHxD) 433 x 51 x 76 mm
Environmental
Operating Temperature: 0 ~ 40 °C
Operating Relative Humidity (Non-condensing): 0 ~ 90%
Operating Elevation: 0-9,843 feet (0-3,000 meters)
Storage Temperature: -15 ~ 45 °C
Storage Relative Humidity (Non-condensing): 0 ~ 95 %
Storage Elevation: 0-49,213 feet (0-15,000 meters)
Certifications
CE, RoHS
Additional Features
Multiple Mounting Options
Rack Ears Included
Installation: Vertical Rackmount, Horizontal Rackmount
Installation Attached to Rack/Tower UPSs: Yes
Retaining Clips on the IEC Input and Output Sockets

Click here for compatible products

Package Weight
5.0000 kg
Warranty
2 Years - direct with CyberPower
Full Box Quantity
1
