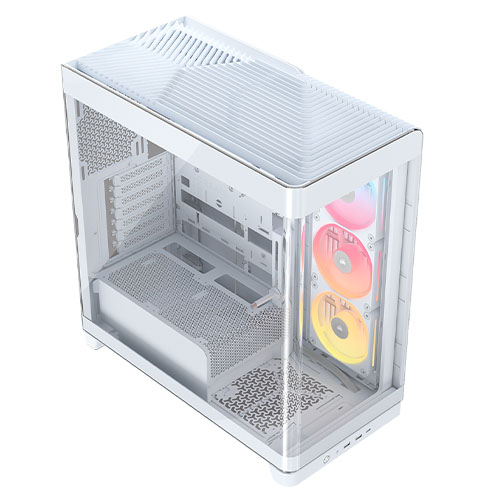

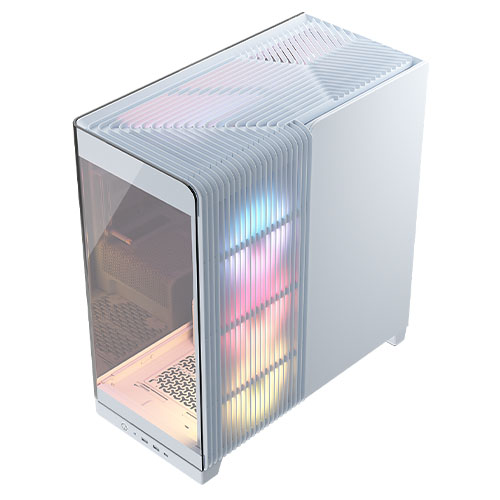

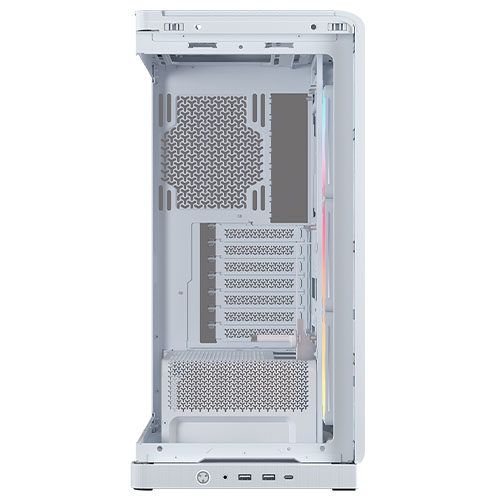

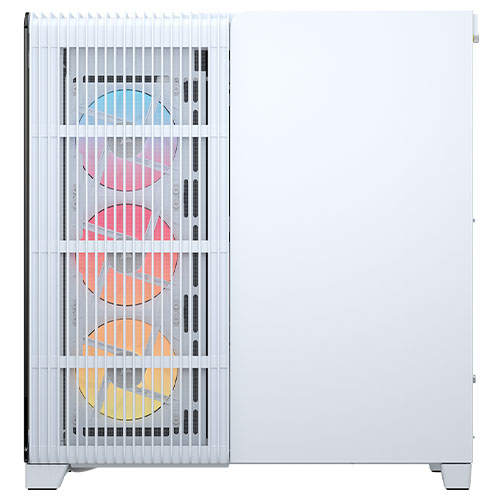

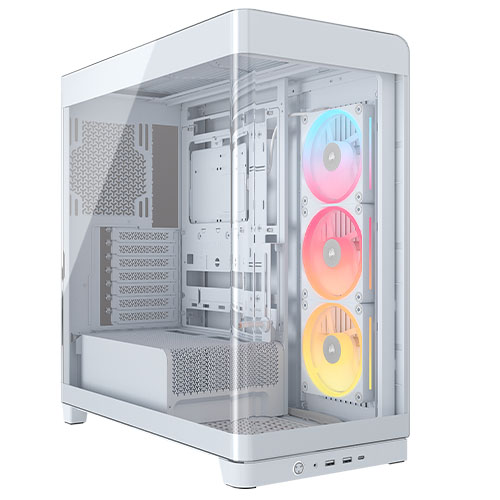

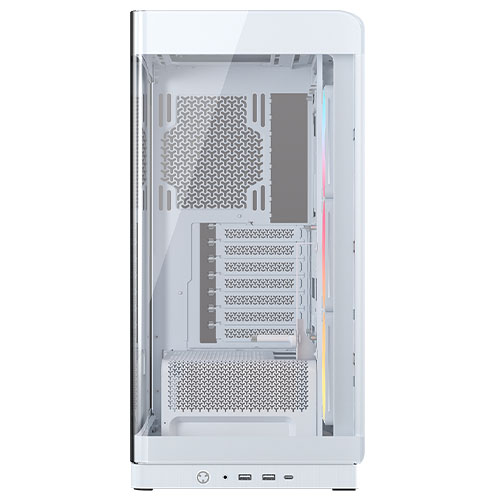

Corsair FRAME 4500X LX-R RGB LINK Gaming Case w/ Glass Side & Front, E-ATX, 3x LX120-R RGB Fans, InfiniRail Fan Mounting, USB-C, Asus BTF Compatible, White
+ click images to enlarge


Stock Code
CAA-CORFRAME4500XLX-R-WH
Manufacturer
CORSAIR
Manufacturer Code
CC-9011317-WW
EAN Number
840440402800
Printable Version
Out of Stock: call for information
You must be logged in to view pricing and place orders
Form Factor
E-ATX
Power Supply Wattage
No PSU
Motherboard Support
E-ATX (305mm x 277mm), ATX, Micro ATX, Mini ITX

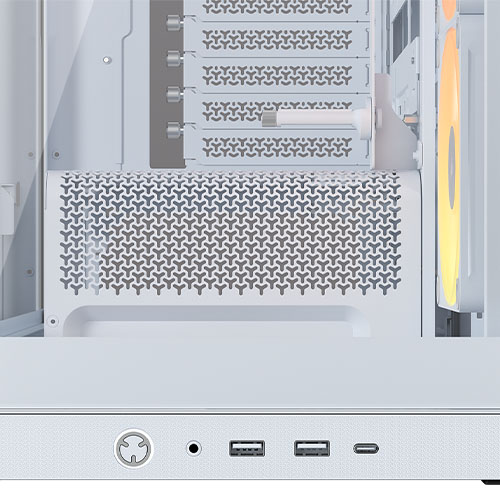

Connectors / Controls
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen1 Type-A
1 x Headphone/Microphone
Power Button
Drive Bays
2 x 2.5" SSDs
1 x 3.5" HDDs

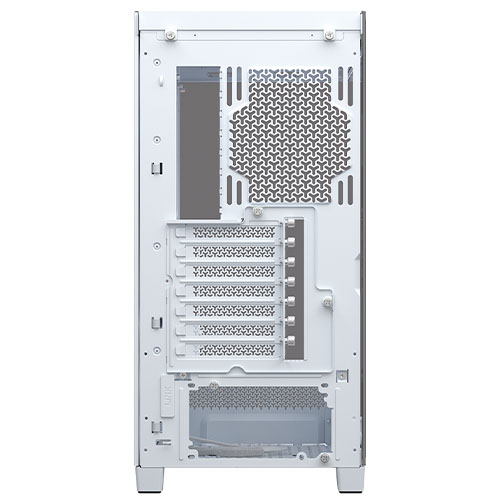

Expansion Slots
7 Horizontal / 3 Vertical
Cooling System
Included:

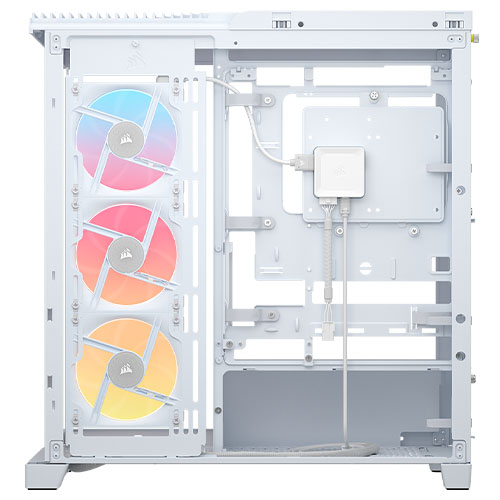

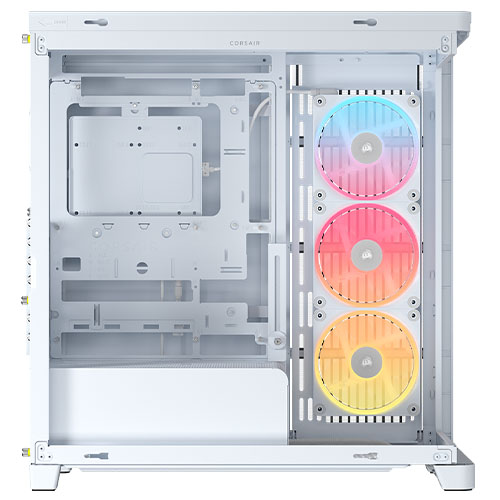

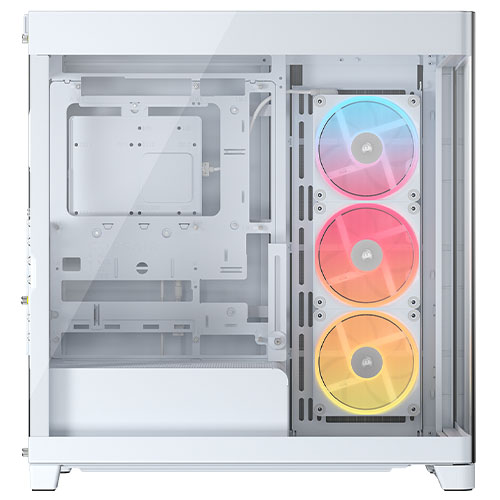

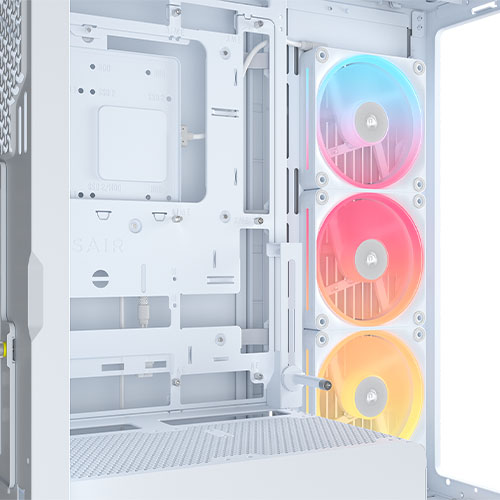

Side: 3 x LX120-R RGB LINK PWM Reverse-rotor Fans

Fan Mounts:
Front: None
Top: 3 x 120 / 3 x 140 mm
Side: 3 x 120 / 2 x 140 mm
PSU Shroud: 2 x 120 mm
Bottom:1 x 120 mm
Rear: 1 x 120 / 1 x 140 mm


Radiator Support:
Front: None
Top: Up to 360 mm
Side: Up to 360 mm
Bottom: None
PSU Shroud: None
Rear: Up to 140 mm
Back-Connect MB Support
Yes
Colour
White
Material
Steel, Tempered Glass, Plastic
Compatibility
GPU Clearance:
460 mm

CPU Clearance
185 mm

PSU Clearance:
250 mm
Weight/Dimensions
11.7 kg
(LxWxH) 499 x 246 x 478 mm
Additional Features

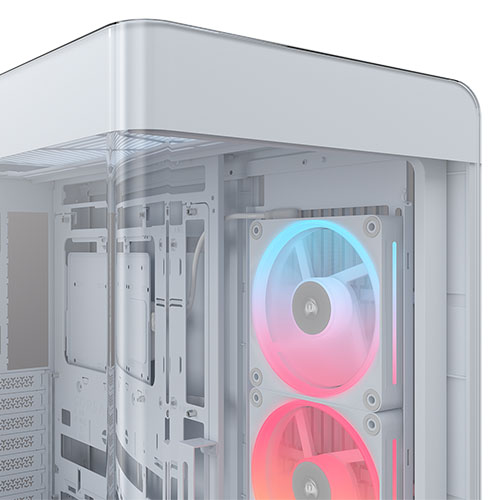

Single-Piece Curved Glass Panel

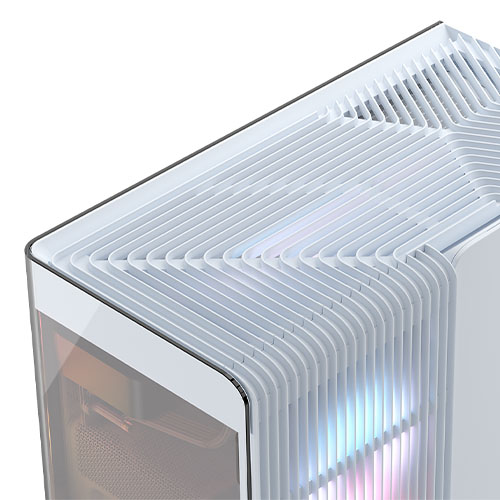

Cascading Industrial Design
Modular Case System

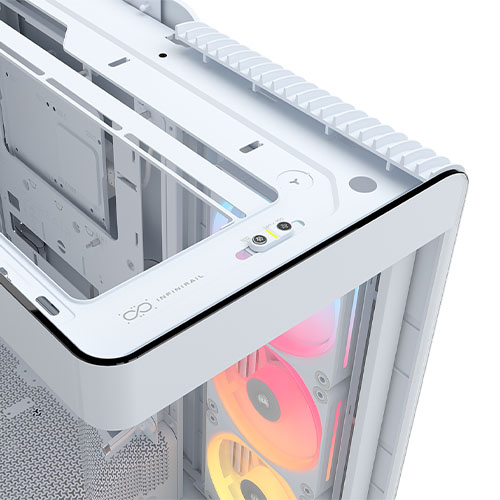

InfiniRail Fan Mounting System
GPU Anti-Sag Arm
Dust Filters: Bottom, Right Side
Asus BTF compatible
Accessories
3 x LX120R RGB LINK Fans
Case Accessory Box
Package Weight
11.7000 kg
Warranty
2 Years
Full Box Quantity
1
Manufacturer Link
Click here for more details from the manufacturer
