Components > Graphics Cards

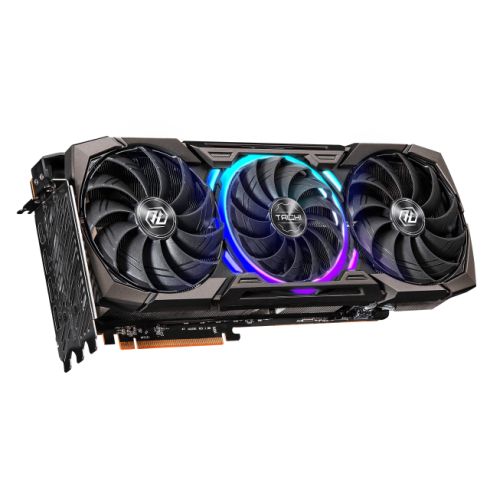

Asrock RX7900 XTX TAICHI OC, PCIe4, 24GB DDR6, HDMI, 3 DP, 2680MHz Clock, Overclocked, RGB

+ click images to enlarge

Stock Code

RADRX79XTX24ASRTCOC

Manufacturer

ASROCK

Manufacturer Code

90-GA3ZZZ-00UANF

EAN Number

4710483941771

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Chipset Manufacturer

AMD

Interface

PCI Express 4.0

Graphics Chipset

AMD RX 7900 XTX

Memory Size

24GB

Memory Type

DDR6

Memory Interface

384-bit

Core Clock

Boost Clock: Up to 2680 MHz
Game Clock: 2510 MHz

Memory Clock

20 Gbps

CUDA Cores / Stream Processors

6144 Stream Processors

Outputs

1 x HDMI 2.1
3 x DisplayPort 2.1

HDCP Support

Yes

Resolution

Digital Max Resolution: 7680 x 4320

DirectX Support

DirectX 12 Ultimate

Max Display Support

Cooling

Taichi 3X Cooling System
Striped Ring Fans
Air Deflecting Fins
Reverse Spin Cenre Fan
Ultra-fit Heatpipe
Memory Heatpipe
Nickel-plated Copper Base
High-density Metal Welding
0dB Silent Cooling

PSU Requirements

1000W or greater recommended

Connectors Required

3 x 8-pin PCIe Power

Software

AMD Adrenalin Edition

Additional Features

See Overview

Dimensions

345 x 140 x 61 mm

Slot Size

3 Slot

Accessories

1 x Quick Installation Guide
1 x Taichi Post Card
1 x Graphics Card Stand

Package Type

Retail

Package Weight

3.2000 kg

Warranty

2 Year Replacement Warranty

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer

AMD Radeon™ RX 7900 XTX Taichi 24GB OC

Boost Clock: Up to 2680 MHz / 20 Gbps
Game Clock: 2510 MHz / 20 Gbps
AMD Radeon™ RX 7900 XTX GPU
24GB GDDR6 on 384-Bit Memory Bus
96 AMD RDNA™ 3 Compute Units (With Rt+Ai Accelerators)
96MB AMD Infinity Cache™ Technology
PCI® Express 4.0 Support
3 x 8-pin Power Connectors
3 x DisplayPort™ 2.1 / 1 x HDMI™ 2.1
Polychrome SYNC
Taichi 3X Cooling System
ARGB Backplate
Reinforced Metal Frame
Dual BIOS
22 Power Phase Design
110/100/110mm Striped Ring Fans

Reverse Spin

The center fan spins reversely to lower turbulence and enhance air dispersion through the heatsink.

Taichi 3X Cooling System

Crafted for the best balance between the thermal efficiency and silence by all the details improved.

Striped Ring Fan

Designed For Enhanced Airflow

ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.

0dB Silent Cooling

Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Air Deflecting Fin

Guide Airflow to Go Through Regularly & Quickly.

Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Ultra-fit Heatpipe

Consolidated to Maximize the Contact.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Memory Heatpipe

Designed to enhance and balance the temperature and heat dissipation for the video memory.

Nickel-plated Copper Base

Maximize GPU Contact Area.

With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding

Improve Heat Dissipation.

Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Nano Thermal Paste

Perfect Thermal Teamwork.

Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad

Better Heat Transfer.

The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Precise Screw Torque

Optimized Mounting Pressure.

ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

Polychrome SYNC

Create your own unique colorful light effects.

With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

LED On/Off Switch

On or Off? Switch as You Want.

You can switch not only the built-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.

ARGB Pin-header

More ARGB, More Fancy.

With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.

Reinforced Metal Frame

Reinforced Metal Frame

Enhances the structure to prevent the PCB from being bent.

ARGB Backplate

Shining, Solid, Cool.

Designed for elegancy and to avoid PCB bending. The brand new ARGB light makes the graphic card more shining in visual.

Dual BIOS

Dual BIOS design allows users choose preferred setting by switching between the P(Performance) BIOS and Q(Quiet) BIOS.

22 Power Phase Design

More Power Phase Equipped to Deliver More Sufficient Power.

Featuring 22 power phases with sturdy components to raise maximum current to GPU and memory to offer enhanced performance.

Japanese SP-Cap

With a high conductive polymer as the electrolyte, it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that, it also has excellence in product operational life, reliability and heat resistance.

SPS (Smart Power Stage)

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the GPU with enhanced performance and OC capability.

Premium 100A Power Choke

Compared to traditional chokes, ASRock’s premium 100A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.

2oz Copper PCB

Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

Matte Black PCB

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

ASRock Tweak 2.0

Pro and Easy-to-Use Tuning Utility.

Provides the smart fan speed control and instant performance tweaking.

8K Resolution Support

Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.

PCI® Express 4.0 Support

This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.

Graphics Card Stand

The bundled stand helps to eliminate GPU sag by supporting your graphics card.
