Components > Cooling

Akasa AK-959CU Heatsink and Fan, Sockets 775, 1150, 1151, 1155, 1156, PWM Fan, Up to 115W

+ click images to enlarge
Stock Code
HEATAK-959CU
Manufacturer Link
Manufacturer Code
AK-959CU
EAN Number
4710614530195
37 Available
You must be logged in to view pricing and place orders
Product Description
Akasa AK-959CU Heatsink and Fan, Sockets 775, 1150, 1151, 1155, 1156, PWM Fan, Up to 115W
Type
Heatsink and Fan
AMD/Intel
Intel
Compatibility
775, 1150, 1151, 1155, 1156
TDP
115W
Fan Connector(s)
4-pin
Installation
Push pins
Colour
Black
Material

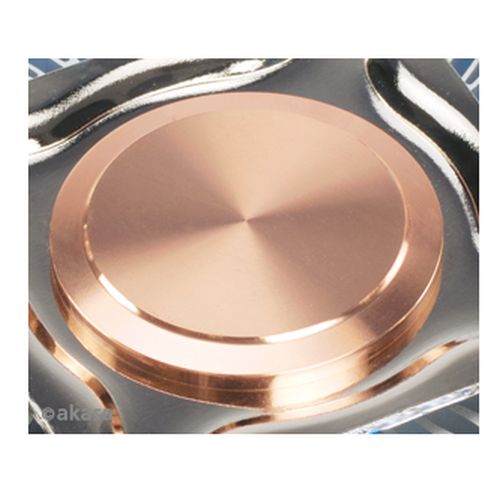

Aluminium fins and copper core
Weight
317g
Fan Dimensions
92 x 25 mm
Dimensions
95 x 95 x 62 mm
Fan Controller
PWM
Rotation Speed
600 - 3000 RPM (PWM controlled)
Fan Bearing
EBR
Air Flow
56.81 CFM
Noise level
17.2 - 30.54 dB(A)
Power
Current rating: 0.26A
Voltage rating: 12V DC
Additional Features
See Overview
MTBF
40,000 hours
Package Type
Retail
Package Weight
0.3600 kg
Warranty
1 Year
