Asus ROG STRIX Z890-I GAMING WIFI, Intel Z890, 1851, Mini ITX, 2 DDR5, HDMI, 2 TB4, Wi-Fi 7, 2.5G LAN, 2x M.2, Strix Hive II

+ click images to enlarge

Stock Code

AUMBZ890ISTWI

Manufacturer

ASUS

Manufacturer Code

90MB1IC0-M0EAY1

EAN Number

4711387755266

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

Mini ITX

Socket

Intel 1851

Chipset

Intel Z890

CPU Support

Support Intel Core Ultra Processors (Series 2)
Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Supports Intel XMP
Supports DIMM Flex
ASUS Enhanced Memory Profile III

*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

RAM Slots

2 x DIMM

RAM Speeds

Up to 8800+MT/s (OC)

Maximum Memory

128GB

Graphics

Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
2 x Thunderbolt 4 support DisplayPort and Thunderbolt video outputs

PCI/PCI Express

1 x PCIe 5.0 x16 slot (supports x16 mode)

Storage

2 x SATA III
2 x M.2

M.2_1 (2230/2242/2260/2280) - PCIe 5.0 x4
M.2_2 (2230/2242/2260/2280) - PCIe 5.0 x4

RAID

Intel Rapid Storage Technology supports PCIe RAID 0/1, SATA RAID 0/1

Wireless

Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth v5.4

LAN

2.5GB LAN

Audio

ROG Strix Hive II Audio Features:
ROG Hyper-Grounding Technology
ESS SABRE9260Q DAC
Silver-plated audio jacks
Dedicated audio PCB layers

USB Ports Supported

Rear:
2 x Thunderbolt 4 (USB Type-C)
1 x USB 20Gbps Type-C
3 x USB 10Gbps Type-A
1 x USB 5Gbps Type-A
2 x USB 2.0

Front:
1 x USB 20Gbps Type-C
2 x USB 5Gbps

ROG STRIX HIVE II:
2 x USB 10Gbps (1 Type-C + 1 Type-A)

ROG FPS Card:
2 x USB 2.0 headers support additional 3 x USB 2.0 ports

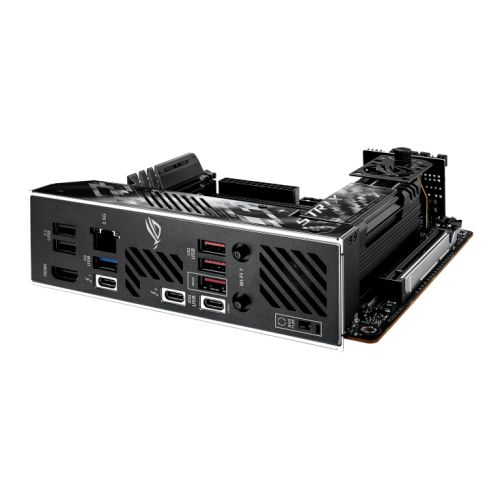

Back Panel I/O Ports

2 x Thunderbolt 4 (USB Type-C)
1 x USB 20Gbps Type-C
3 x USB 10Gbps Type-A
1 x USB 5Gbps Type-A
2 x USB 2.0
1 x HDMI
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet
1 x BIOS FlashBack button

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin AIO Pump
1 x 4-pin Chassis Fan
1 x Extra Flow Fan
1 x 24-pin Main
1 x 8-pin +12V CPU
2 x M.2 (Key M)
1 x USB 20Gbps Type-C
1 x USB 5Gbps
2 x Addressable Gen2
1 x 2-pin Power Button

1 x Thermal Sensor
2 x USB Type-C connectors to install ROG FPS card

ROG FPS card:
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Clear CMOS header
1 x Front Panel header
1 x Alteration PCIe Mode switch
2 x USB 2.0 headers support 3 additional
USB 2.0 ports

Accessories

1 x ROG USB2.0 splitter cable
2 x SATA 6Gb/s cables
1 x Panel Cable
1 x ROG FPS Card
1 x ROG STRIX HIVE II
1 x USB Type-C power connection cable
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x ROG key chain
1 x ROG Strix stickers
1 x Quick start guide

Additional Features

See Overview

Package Type

Retail

Package Weight

1.5400 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
