Components > Motherboards

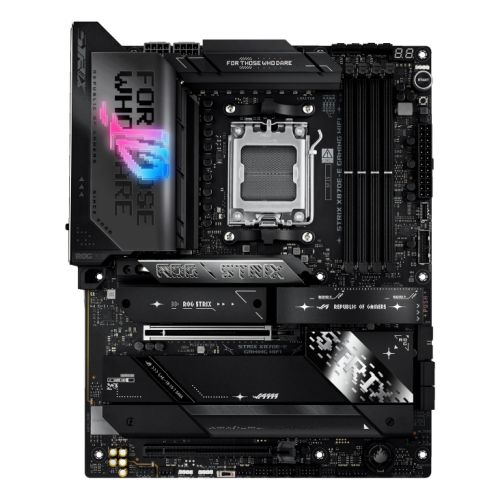

Asus ROG STRIX X870E-E GAMING WIFI, AMD X870E, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G LAN, PD 30W, RGB, 5x M.2

+ click images to enlarge


Special Offer
Stock Code
AUMBX870EESTWI
Manufacturer
Manufacturer Code
90MB1IB0-M0EAY0
EAN Number
4711387724163
21 Available
You must be logged in to view pricing and place orders
Motherboard Type
Desktop
Form Factor
ATX
Socket
AMD AM5
Chipset
AMD X870E
CPU Support
Click here for CPU support
RAM Technology
DDR5 (Dual Channel)
ECC and Non-ECC, Un-buffered Memory
Supports AMD EXPO
NitroPath DRAM Technology
ASUS Enhanced Memory Profile
RAM Slots
4 x DIMM
RAM Speeds
8200+MT/s(OC) with Ryzen 9000 Series CPUs
8400+MT/s(OC) with Ryzen 8000 Series CPUs
8000+MT/s(OC) with Ryzen 7000 Series CPUs
Maximum Memory
192GB
Graphics
Integrated Graphics
Graphics specifications may vary between CPU types
Graphics Ports
1 x HDMI
2 x USB4 (40Gbps) support USB Type-C display outputs
PCI/PCI Express
1 x PCIe 5.0 x16 (supports x16 mode)
1 x PCIe 4.0 x16 (supports x4 mode)
Storage
4 x SATA III
5 x M.2

Ryzen 9000 & 8000 & 7000 CPUs:
M.2_1 (2242/2260/2280) - PCIe 5.0 x4
M.2_2 (2242/2260/2280) - PCIe 5.0 x4
M.2_3 (2242/2260/2280) - PCIe 5.0 x4

X870E Chipset:
M.2_4 (2280) - PCIe 4.0 x4
M.2_5 (2280) - PCIe 4.0 x4
RAID
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen 9000series CPU
Wireless
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
Bluetooth v5.4
LAN
5GB LAN
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
USB Ports Supported
Rear:
2 x USB4 (40Gbps) Type-C
1 x USB 20Gbps Type-C (up to 30W PD Fast-charge)
10 x USB 10Gbps (9 Type-A + 1 Type-C)

Front:
1 x USB 20Gbps Type-C
4 x USB 5Gbps
6 x USB 2.0

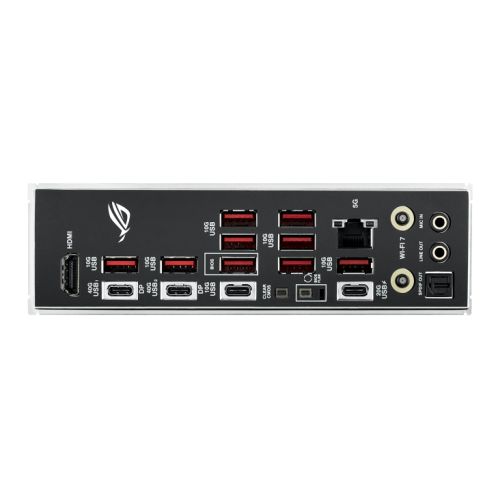

Back Panel I/O Ports
2 x USB4 (40Gbps) Type-C
1 x USB 20Gbps Type-C (up to 30W PD Fast-charge)
10 x USB 10Gbps (9 Type-A + 1 Type-C)
1 x HDMI
1 x Wi-Fi Module
1 x Realtek 5Gb
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
5 x 4-pin Chassis Fan
1 x 24-pin Main
2 x 8-pin +12V CPU
5 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 20Gbps Type-C
2 x USB 5Gbps
3 x USB 2.0
3 x Addressable Gen2

1 x CPU Over Voltage jumper
1 x FlexKey button
1 x Front Panel Audio
1 x Start button
1 x 10-1 pin System Panel
1 x Thermal Sensor

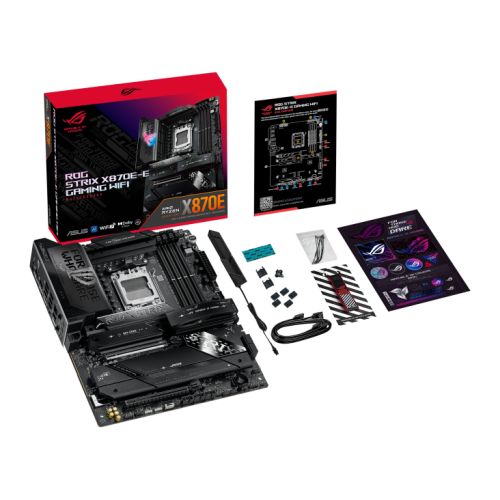

Accessories
2 x SATA 6Gb/s cables
1 x Thermal pad for M.2 22110
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
2 x M.2 Q-Slides
1 x ROG key chain
1 x ROG Strix stickers
5 x M.2 Rubbers
1 x Quick start guide
Additional Features
See Overview
Package Type
Retail
Package Weight
To be confirmed
Warranty
3 Years
Full Box Quantity
5
