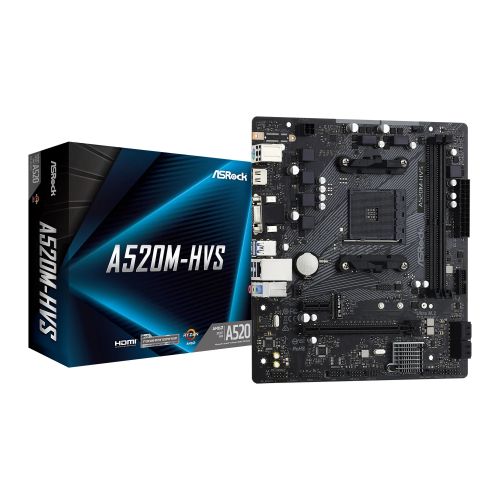

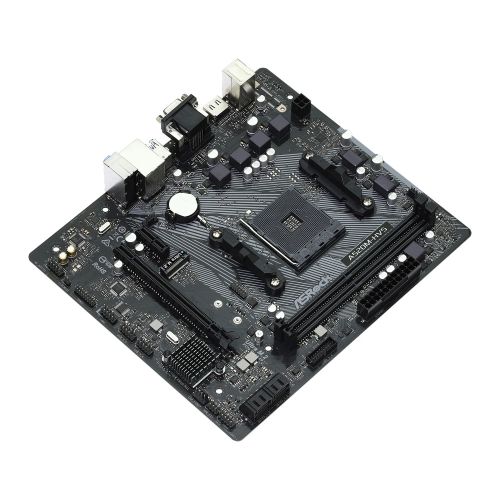

Asrock A520M-HVS, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, HDMI, M.2

+ click images to enlarge

PLEASE NOTE:

For 3rd & 5th gen Ryzen CPUs only
Not compatible with Ryzen 5 3400G & Ryzen 3 3200G

Stock Code

ASMBA520MHVS

Manufacturer Link

ASROCK

Manufacturer Code

A520M-HVS

EAN Number

4710483932311

Printable Version

19 Available

You must be logged in to view pricing and place orders

Product Description

Asrock A520M-HVS, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, HDMI, M.2

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

AMD AM4

Chipset

AMD A520

CPU Support

Click here for CPU support

*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

RAM Speeds

4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz

Maximum Memory

64GB

Graphics

Integrated Graphics Processor*

Graphics specifications may vary between CPU types

Graphics Ports

1 x VGA
1 x HDMI

Multi-GPU Support

PCI/PCI Express

1 x PCIe 3.0 x16 Slot (PCIE2: x16 mode)
1 x PCIe 3.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe

RAID

RAID 0, 1, 10

Wireless

LAN

GB LAN

Audio

7.1 CH HD Audio (Realtek ALC887 Audio Codec)

USB Ports Supported

6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

Back Panel I/O Ports

1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x HDMI
2 x USB 2.0
4 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks

Internal I/O Connectors

1 x SPI TPM
1 x COM Port
1 x Chassis Intrusion and Speaker
1 x CPU Fan
2 x Chassis Fan
1 x 24 pin ATX
1 x 4 pin 12V
1 x Front Audio
2 x USB 2.0
1 x USB 3.2 Gen1

Accessories

2 x SATA Data Cables
1 x Screw for M.2 Socket

Additional Features

See Overview

Package Type

Retail

Package Weight

0.7920 kg

Warranty

3 Year Replacement Warranty
