Networking > Range Ext. / Access Points

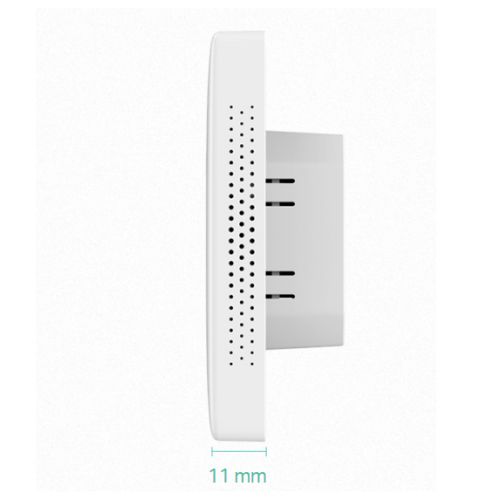

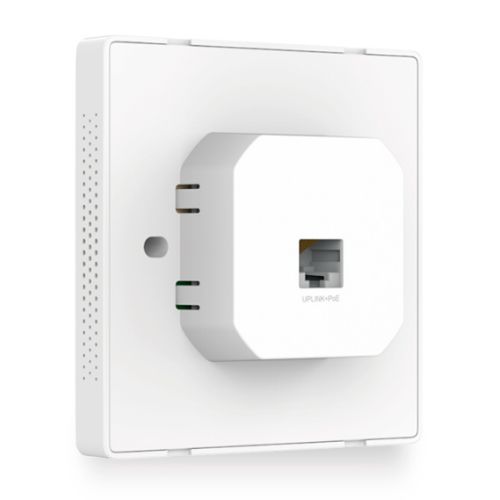

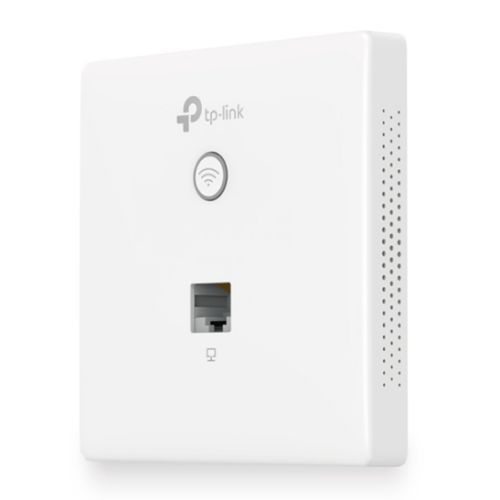

TP-LINK (EAP115-WALL) Omada 300Mbps Wireless N Wall Mount Access Point, PoE, 10/100, Free Software

+ click images to enlarge

Stock Code

AP-300TPEAP115-WALL

Manufacturer

TP-LINK

Manufacturer Code

EAP115-WALL

EAN Number

6935364096670

Printable Version

21 Available

You must be logged in to view pricing and place orders

Primary Function

Access Point

Bands

Single Band

Wi-Fi Rating

N300

Max Single Band Wi-Fi Rate

300 Mbps

Max Wired Transfer Rate

10/100 Mbps

Interface(s)

2 x 10/100Mbps Ethernet (RJ-45) Port

Wireless Standards

IEEE 802.11n/g/b/a

Antenna(s)

2 x Internal 1.8dBi Omni

Button(s)

LED/Wi-Fi Button, RESET

Power Supply

PoE (IEEE 802.3af)

Power Consumption

2.8 W

Dimensions

86.8 x 86.8 x 30.2 mm

Weatherproof

Frequency

2.4GHz

Wireless Functions

Multiple SSIDs (Up to 8 )
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control
QoS(WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics (SSID/AP/Client)

Security

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK

Management

EAP Controller Software
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP: v1,v2c
Local/Remote Syslog
Telnet
Web-based Management:HTTP/HTTPS
L3 Management
Multi-site Management
Management VLAN

Additional Features

See Overview

Environment

Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Contents

Access Point EAP115-Wall
Installation Guide
Mounting Screw

Package Type

Retail

Package Weight

0.2000 kg

Warranty

Limited Lifetime

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
