Networking > PoE Adapters

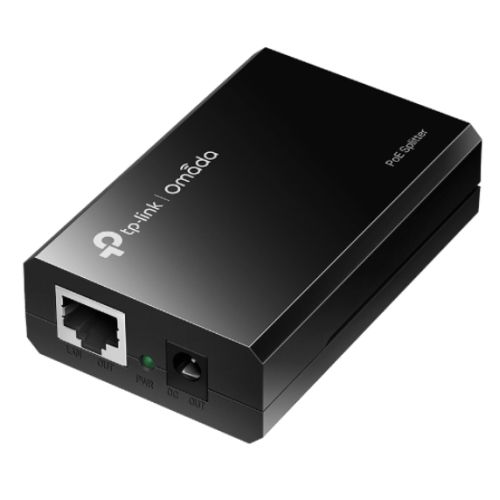

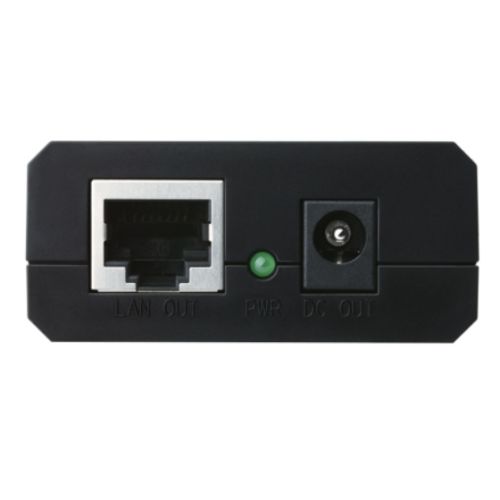

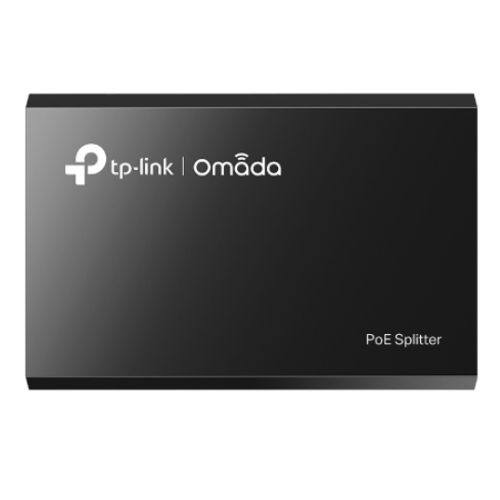

TP-LINK (POE10R) Omada PoE Splitter, IEEE 802.3af Compliant, Selectable Power Output, Gigabit Support, Plug-and-Play
+ click images to enlarge
Stock Code
ANTCAB-TLPOE10R
Manufacturer
TP-LINK
Manufacturer Code
POE10R
EAN Number
6935364030490
Printable Version
Out of Stock: call for information
You must be logged in to view pricing and place orders
Interface(s)
2 x 10/100/1000Mbps RJ45 Port
Auto Negotiation/Auto MDI/MDIX
1 x Power Output Port
Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ohms STP (Max 100m)

100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ohms STP (Max 100m)

1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Dimensions
80.8 x 54 x 24 mm
LED Indicator
PWR
Power Supply
12VDC 1A, 9VDC 1A, 5VDC 2A
Output Power For PoE Splitter
Selectable Power Output
Basic Function
Compatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC, 9VDC or 5VDC Power Output
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Contents
POE10R
Power Cord
Installation Guide
Package Type
Retail
Warranty
2 Years
Full Box Quantity
18
Manufacturer Link
Click here for more details from the manufacturer
