Peripherals > UPS

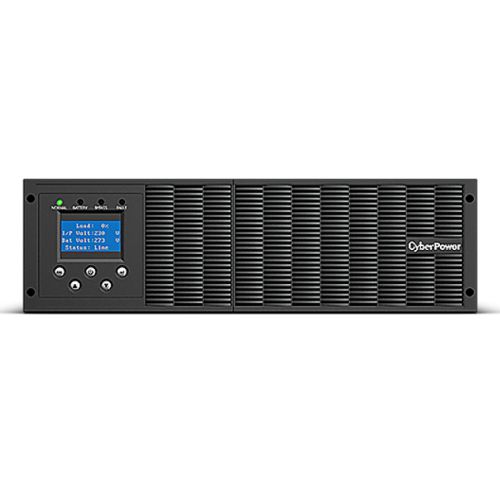

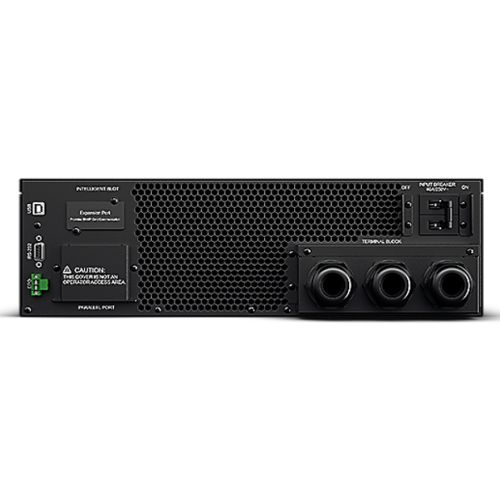

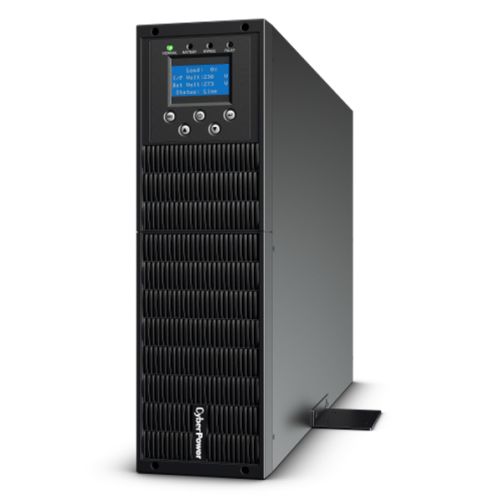

CyberPower Online XL Smart App 6000VA Double Conversion 3U Rack/Tower UPS, 5400W, LCD Display, 1x Hardwire Terminal Block, Ext. Battery Module
+ click images to enlarge
Win a £500 Amazon Voucher!
Click here for details
Stock Code
UPS6000VAORACKCP
Manufacturer
Manufacturer Code
OLS6000ERTXL3U
EAN Number
4712856270914
1 Available
You must be logged in to view pricing and place orders
Type
Rackmountable UPS
UPS Topology
Online Double Conversion
Maximum Capacity
6000VA / 5400W
Battery Type
-
Typical Protection
Surge Suppression: 445 Joules
EMI/RFI Filtration
EMI/RFI Filtration
Inversion
Pure Sine Wave
Transfer Time
0 ms
Battery Protection
Overload Protection:
Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode):
105~125% Load for 10 min, 125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec
Overload Protection (Battery Mode):
105~125% Load for 2 min, 125~150% Load for 30 sec, >150% Load for 1 sec
Overload Protection (Bypass Mode):
125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec
Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode):
105~125% Load for 10 min, 125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec
Overload Protection (Battery Mode):
105~125% Load for 2 min, 125~150% Load for 30 sec, >150% Load for 1 sec
Overload Protection (Bypass Mode):
125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec
Input Voltage
Nominal Input Voltage: 230 Vac
Input Voltage Range: 110 ~ 276 Vac
Adjustable Voltage Range:
0~80% Load for 110 ~ 276 Vac
0~100% Load for 176 ~ 276 Vac
Input Voltage Range: 110 ~ 276 Vac
Adjustable Voltage Range:
0~80% Load for 110 ~ 276 Vac
0~100% Load for 176 ~ 276 Vac
Output Voltage
208 ± 1 %
220 ± 1 %
230 ± 1 %
240 ± 1 %
220 ± 1 %
230 ± 1 %
240 ± 1 %
Recharge Time
-
Runtime
-
Interfaces
Serial Port
USB Port
SNMP/HTTP Network Slot
EPO Port
Input Terminal Block
Output Terminal Block
Parallel Port
USB Port
SNMP/HTTP Network Slot
EPO Port
Input Terminal Block
Output Terminal Block
Parallel Port
Visual Indicators
LCD Panel:
Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control:
Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting
LED Indicators:
Line Mode, Battery Mode, Bypass Mode, UPS Fault
Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control:
Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting
LED Indicators:
Line Mode, Battery Mode, Bypass Mode, UPS Fault
Audible Indicators
Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault
Environment
Operating Temperature: 32 ~ 104°F
Operating Temperature: 0 ~ 40 °C
Operating Relative Humidity (Non-condensing): 0 ~ 90 %
Operating Elevation: <1000, Load Derated 1% per 100m from 1000m and 2000m
Storage Temperature: 5 ~ 113 °F
Storage Temperature: -15 ~ 45 °C
Storage Relative Humidity (Non-condensing): 0 ~ 95%
Storage Elevation: 0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation: 1603 BTU/hr
Audible Noise at 1.0M from Surface of Unit: 38.5~57.5 dBA
Operating Temperature: 0 ~ 40 °C
Operating Relative Humidity (Non-condensing): 0 ~ 90 %
Operating Elevation: <1000, Load Derated 1% per 100m from 1000m and 2000m
Storage Temperature: 5 ~ 113 °F
Storage Temperature: -15 ~ 45 °C
Storage Relative Humidity (Non-condensing): 0 ~ 95%
Storage Elevation: 0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation: 1603 BTU/hr
Audible Noise at 1.0M from Surface of Unit: 38.5~57.5 dBA
Dimensions
(WxHxD) 438 x 130.5 x 680 mm
Weight
17.5 kg
Software
PowerPanel Business (Recommended)
Additional Features
See Overview
Accessories
Rackmount Rail
Parallel Port Cover Plate
Terminal Cover
Terminal Splices
Screw Kit
USB Cable
Parallel Port Cover Plate
Terminal Cover
Terminal Splices
Screw Kit
USB Cable
Package Type
Retail
Package Weight
25.8000 kg
Warranty
2 Years - direct with CyberPower
Full Box Quantity
1
Manufacturer Link
