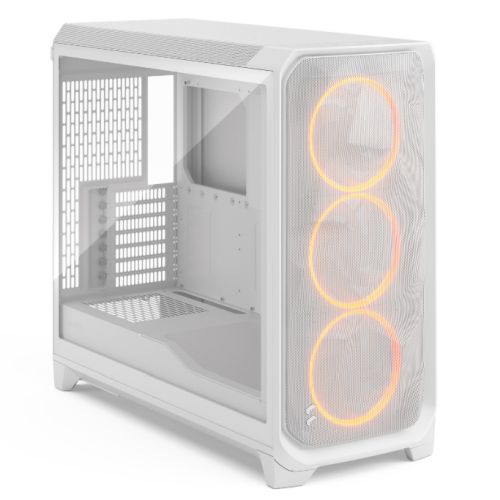

Fractal Design Meshify 3 XL (White RGB TG Clear) w/ Clear Window, E-ATX, Mesh Front, 3x RGB Fans, USB-C 20Gbps

+ click images to enlarge

Stock Code

CAA-FRME3XLBWHRGBCT

Manufacturer

FRACTAL

Manufacturer Code

FD-C-MES3X-06

EAN Number

7340172709534

Printable Version

Out of Stock: ETA 08/07/2025

You must be logged in to view pricing and place orders

Form Factor

E-ATX

Power Supply Wattage

No PSU

Motherboard Support

E-ATX / ATX / mATX / ITX / EE-ATX / SSI-EEB / SSI-CEB

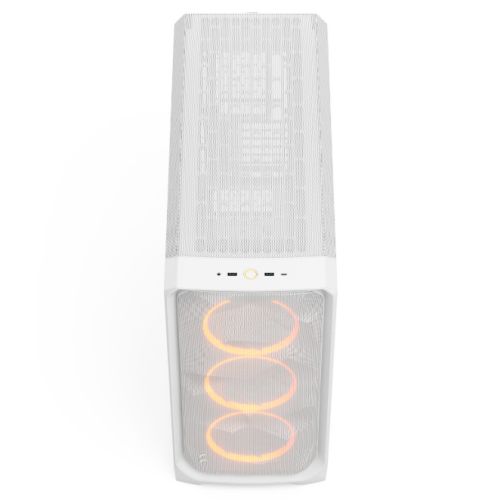

Connectors / Controls

1 x USB Type-C 20Gbps
2 x USB Type-A 5Gbps
1 x Audio Combo Jack
Power button

Drive Bays

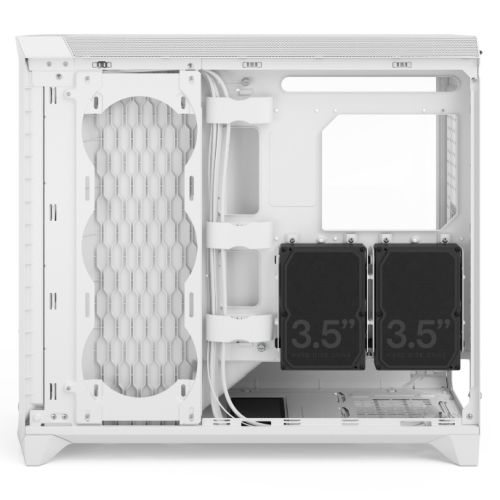

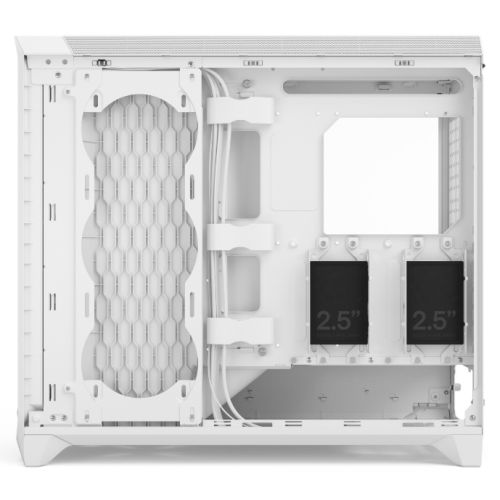

2/5 x 3.5"/2.5" Drive Mounts

Expansion Slots

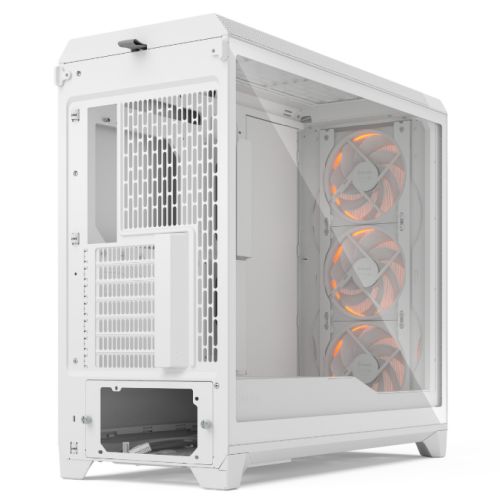

7 Expansion slots

Cooling System

Included:

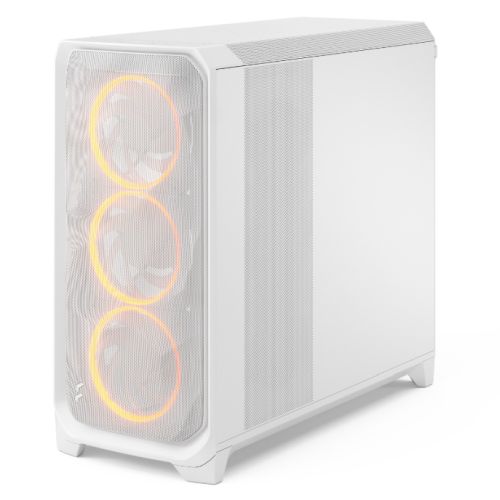

Front: 3 x 140 mm Momentum RGB Fans

Fan Mounts:
Front: 3 x 120 / 3 x 140 / 2 x 180 mm
Top: 3 x 120 / 3 x 140 mm
Rear: 1 x 120 / 1 x 140 mm
Side: 3 x 140 mm (no 120 support without radiator)
Bottom: None

Radiator Support:
Front: Up to 360 / 280 mm
Top: Up to 360 / 420 mm (up to 475 mm)
Rear: Up to 120 / 140 mm
Side: 360 mm (with brackets)
Bottom: None

Colour

Black

Material

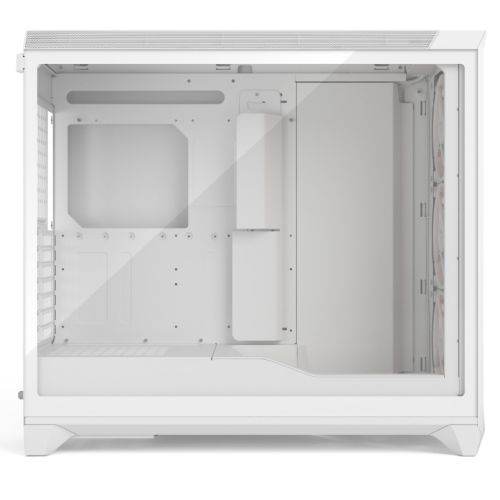

Left Side Panel: Clear Tint Tempered Glass

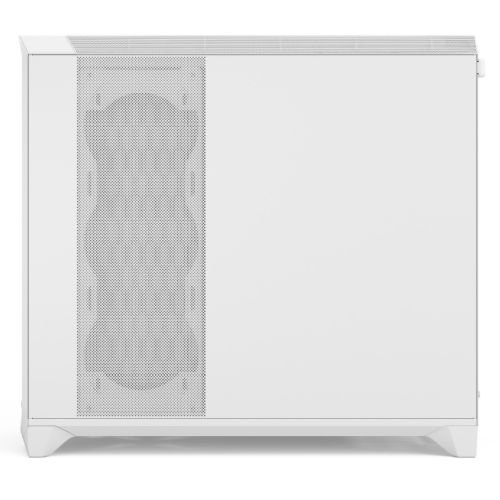

Right Side Panel: Industrial Steel

Compatibility

GPU Max Length: 512 mm
GPU Max Height: 189 mm (7 slot) including cables
CPU Cooler Max Height: 182 mm
PSU Max Length: 230 mm
Cable Routing Space: 37.5 mm

Weight/Dimensions

10.9 kg
(LxWxH) 567 x 245 x 515 mm
w/o feet/protrusions/screws: 490 x 245 x 515 mm

Additional Features

Advanced ambient lighting with startup effect

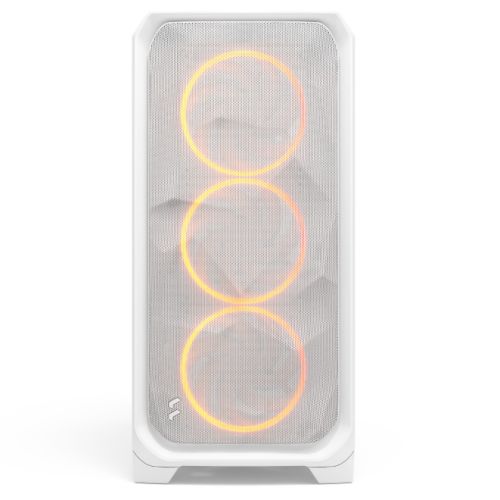

Ventilated front mesh panel
Engineered for cooling performance
Air guide directs air towards components
Dust filters: PSU (Bottom)
Tool-less push-to-lock panels & bottom filter
Captive thumbscrews: Top Rad. Bracket / Air Guide / PSU Bracket
Cable cover
Cable organisers: 3 Velcro straps + 3 Cable Aligners

Accessories

Accessory Box
Manual
Red Note

Package Weight

13.7000 kg

Warranty

2 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
