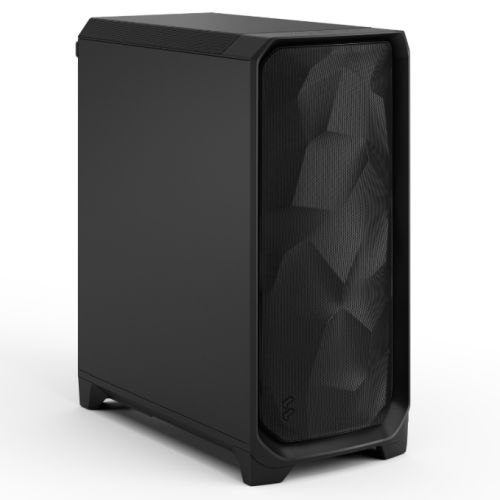

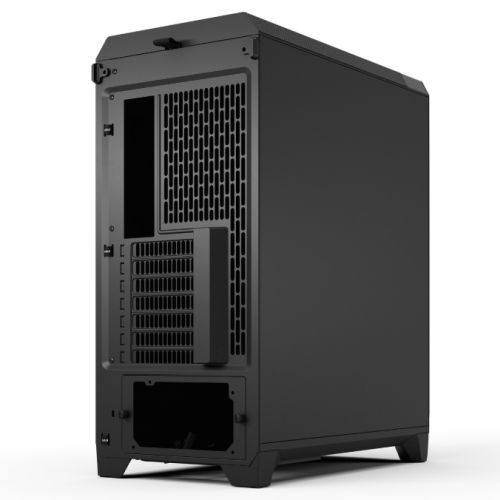

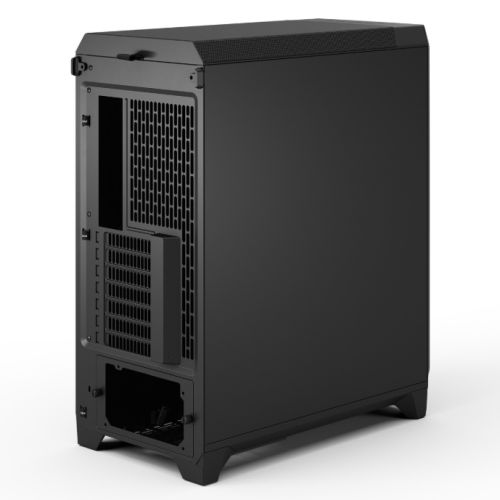

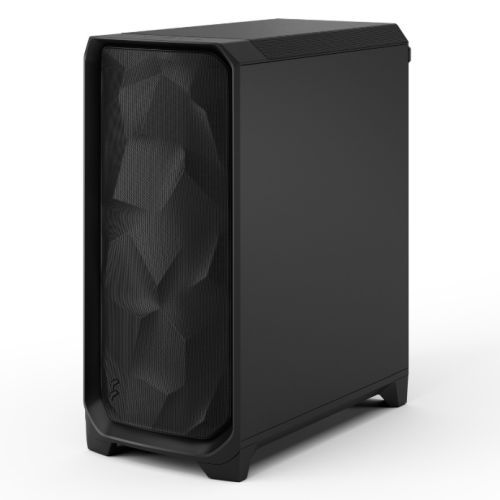

Fractal Design Meshify 3 (Black Solid) Gaming Case, E-ATX, Mesh Front, 3x Momentum 14 Fans, USB-C 20Gbps

+ click images to enlarge

Stock Code

CAA-FRME3BLK

Manufacturer

FRACTAL

Manufacturer Code

FD-C-MES3A-01

EAN Number

7340172707165

Printable Version

15 Available

60 more available - 2 to 3 day lead time

You must be logged in to view pricing and place orders

Form Factor

E-ATX

Power Supply Wattage

No PSU

Motherboard Support

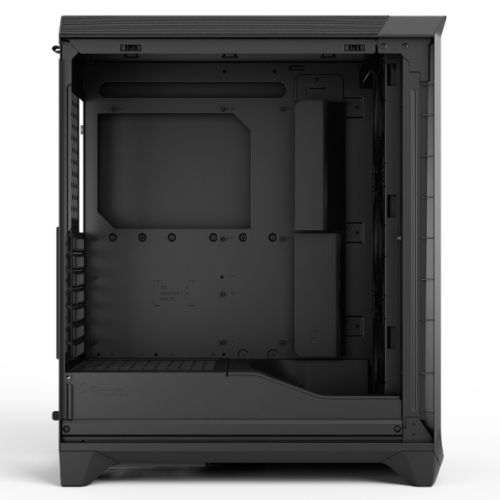

E-ATX (max 277mm), ATX, Micro ATX, Mini ITX

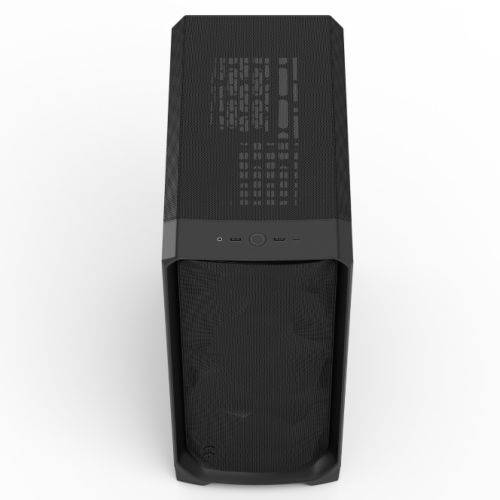

Connectors / Controls

1 x USB Type-C 20Gbps
2 x USB Type-A 5Gbps
1 x Audio Combo Jack
Power button

Drive Bays

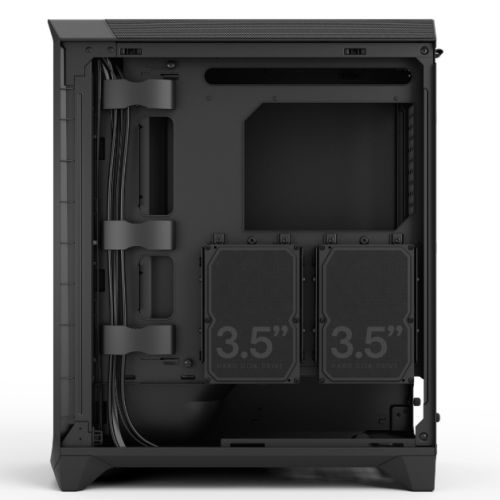

2/4 x 3.5"/2.5" Drive Mounts

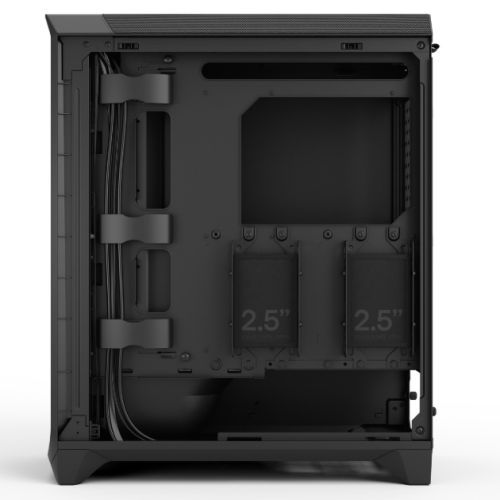

2 (6 total) x Dedicated 2.5" Drive Mounts

Expansion Slots

7 Expansion slots

Cooling System

Included:
Front: 3 x 140 mm Momentum Fans

Fan Mounts:
Front: 3 x 120 / 3 x 140 mm
Top: 3 x 120 / 2 x 140 mm
Rear: 1 x 120 mm
Bottom: None

Radiator Support:
Front: Up to 360 / 280 mm
Top: Up to 280 / 240 mm
Rear: 120 mm
Bottom: None

Colour

Black

Material

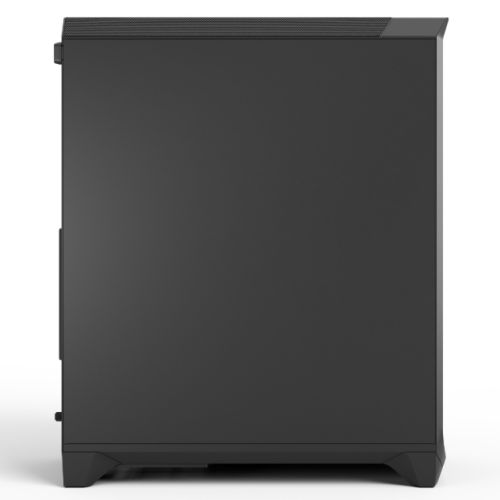

Left Side Panel: Industrial Steel

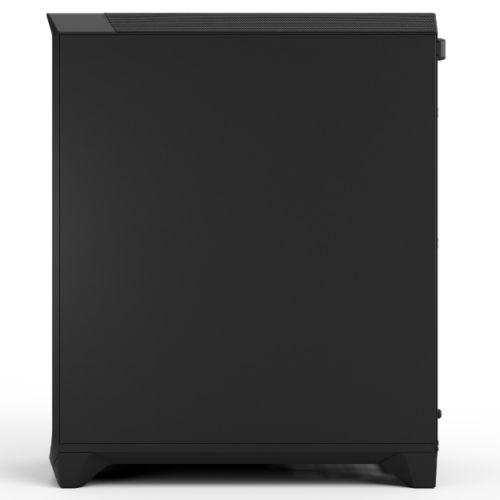

Right Side Panel: Industrial Steel

Compatibility

GPU Max Length: 349 mm
GPU Max Height: 175 mm (7 slot) including cables
CPU Cooler Max Height: 174 mm
PSU Max Length: 180 mm

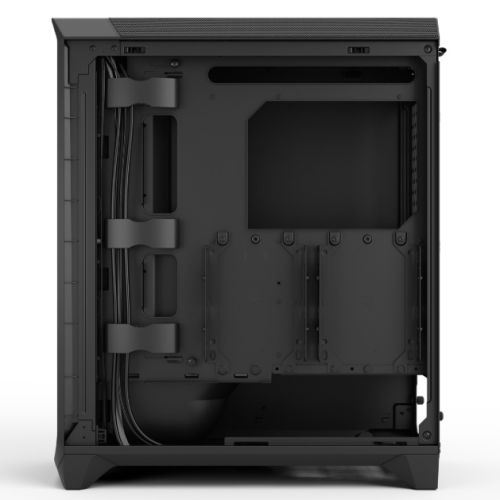

Cable Routing Space: 34.5 mm

Weight/Dimensions

8.7 kg
(LxWxH) 433 x 229 x 507 mm
w/o feet/protrusions/screws: 423 x 229 x 483 mm

Additional Features

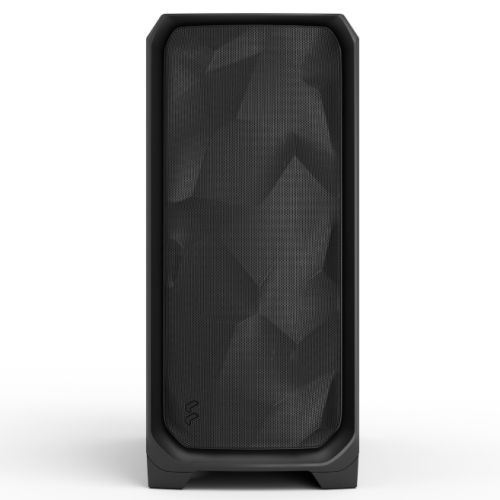

Ventilated front mesh panel
Engineered for cooling performance
Air guide directs air towards components
Dust filters: PSU (Bottom)
Tool-less push-to-lock panels, bottom filter & PSU Bracket
Captive thumbscrews: Top Rad. Bracket / PSU Bracket
Cable cover
Cable organisers: 3 Velcro straps + 3 Cable Aligners

Accessories

Accessory Box
Manual
Red Note

Package Weight

10.8000 kg

Warranty

2 Years
