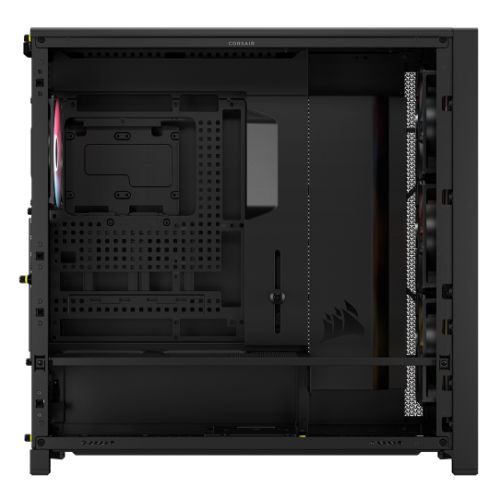

Corsair FRAME 5000D RS Modular Gaming Case w/ Glass Side, E-ATX, 4x ARGB Fans, InfiniRail Fan Mounting, USB-C, ARGB Strip, Asus BTF Compatible, Black
+ click images to enlarge
Stock Code
CAA-COR5000DFRAMEARGB-BLK
Manufacturer
CORSAIR
Manufacturer Code
CC-9011309-WW
EAN Number
840440491293
Printable Version
6 Available
62 more available - 2 to 3 day lead time
You must be logged in to view pricing and place orders
Form Factor
E-ATX
Power Supply Wattage
No PSU
Motherboard Support
E-ATX (305mm x 277mm), ATX, Micro ATX, Mini ITX
Connectors / Controls
1 x USB 3.2 Gen2 Type-C
4 x USB 3.2 Gen1 Type-A
1 x Headphone/Microphone
Power Button
Drive Bays
6 x 2.5" SSDs
2 x 3.5" HDDs
Expansion Slots
8 Horizontal / 3 Vertical
Cooling System
Included:

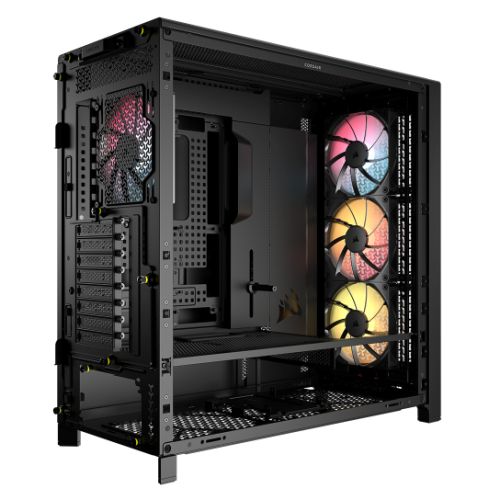

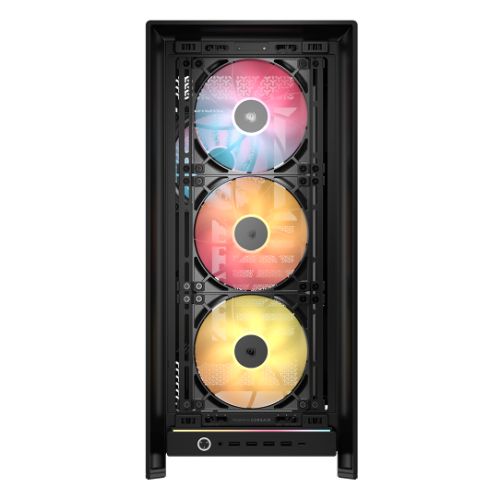

Front: 3 x RS140 ARGB PWM Fans
Rear: 1 x RS140 ARGB PWM Fan
RS140 Fans Included with daisy-chain connections

Fan Mounts:
Front: 3 x 120 / 3 x 140 / 2 x 200 mm
Top: 3 x 120 / 3 x 140 mm
Side: 3 x 120 / 3 x 140 mm
PSU Shroud: 2 x 120 mm
Bottom: 2 x 120 mm
Rear: 1 x 120 / 1 x 140 mm


Radiator Support:
Front: Up to 360 mm
Top: Up to 420 mm
Side: Up to 360 mm
Bottom: None: None
PSU Shroud: None
Rear: Up to 140 mm
Colour
Black
Material
Steel, Tempered Glass
Compatibility
GPU Clearance:
450 mm

CPU Clearance
175 mm

PSU Clearance:
250 mm
Weight/Dimensions
12.7 kg
(LxWxH) 613 x 342 x 669 mm
Additional Features

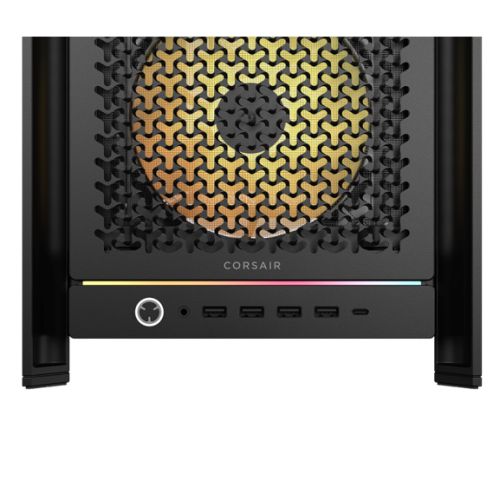

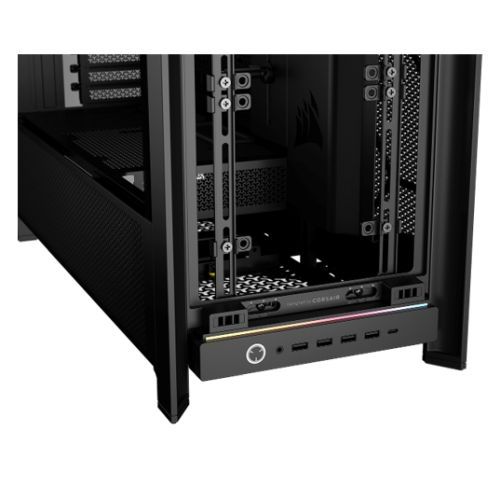

ARGB strip built into the front I/O panel

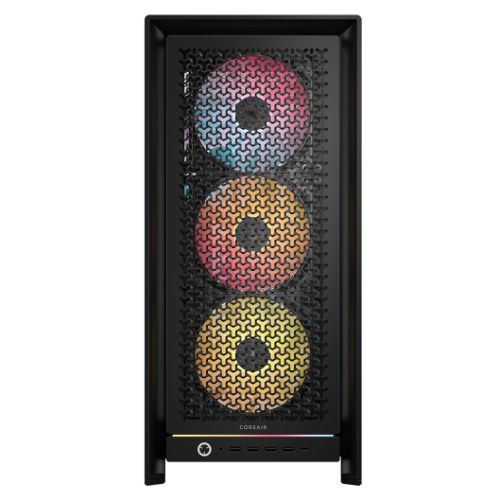

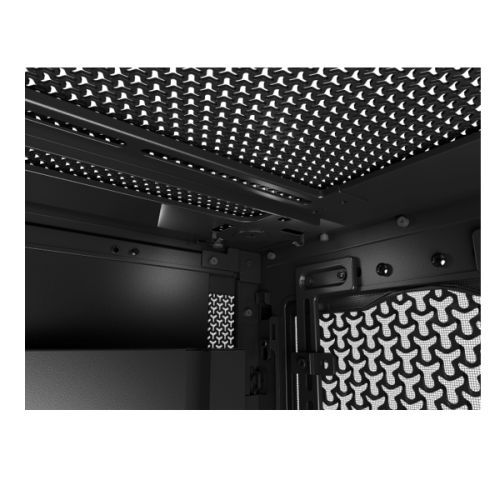

3D Y-Pattern Airflow front panel

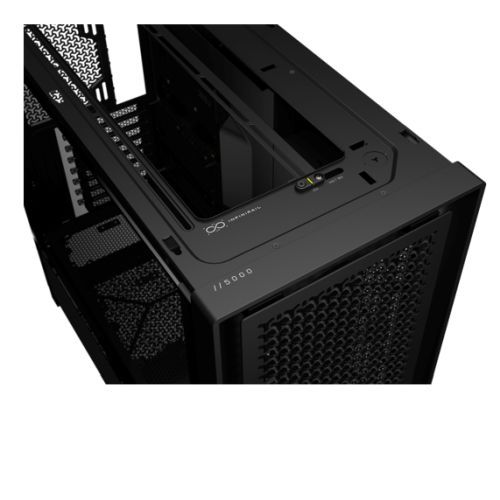

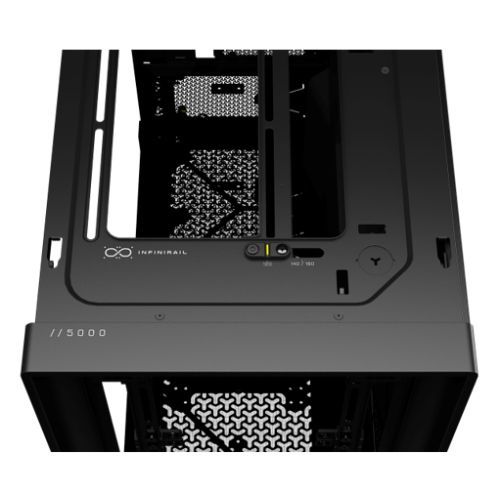

InfiniRail fan mounting system
GPU Antisag stabilization arm

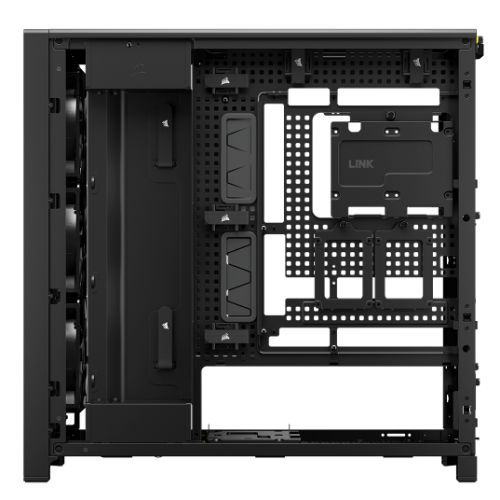

RapidRoute 2.0 cable-routing hardware
Built for iCUE LINK
Asus BTF compatible
Accessories
Case Accessory Box
Package Weight
15.5000 kg
Warranty
2 Years
Full Box Quantity
1
