Components > Cases

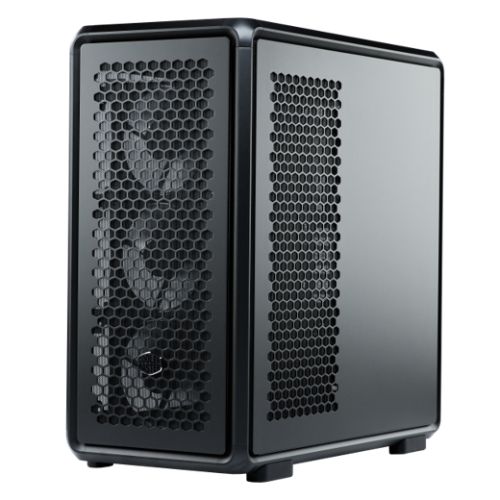

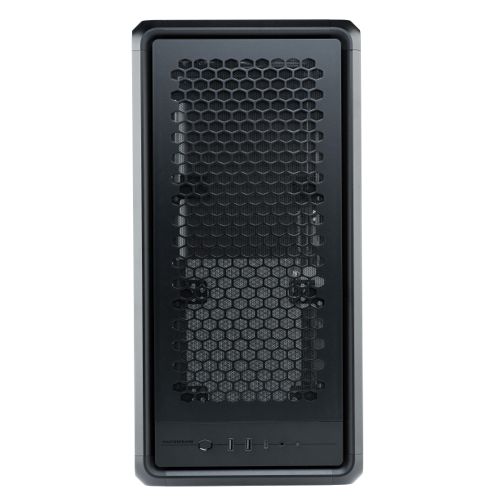

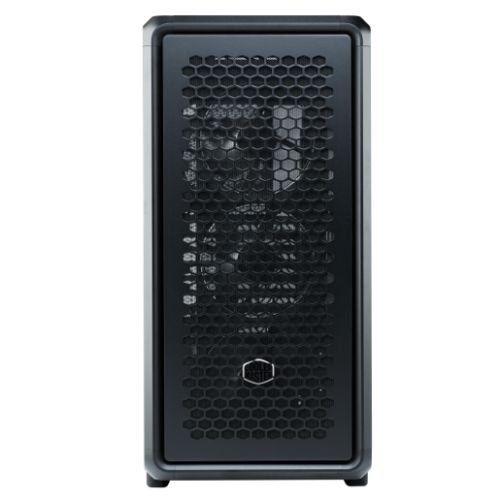

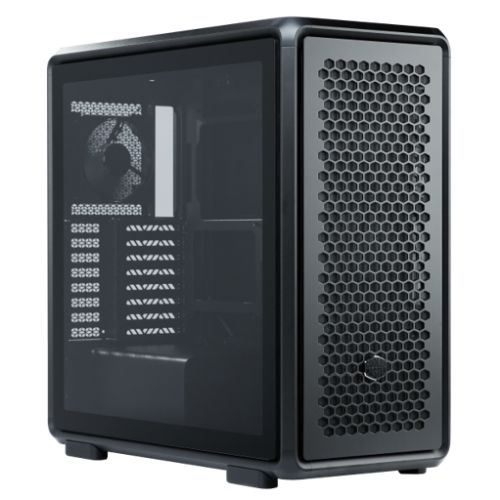

Cooler Master MasterFrame 600 Modular Open-Frame ATX Case w/ Glass Side, 4x ARGB Fans, FreeForm 2.0 Exo-Structure, USB-C 20Gbps, USB-C, Black

+ click images to enlarge

Stock Code

CAA-CMMASTFRAM600

Manufacturer

COOLER MASTER

Manufacturer Code

MF600-KGNN-S00

EAN Number

4719512158265

Printable Version

33 Available

4 more available - 2 to 3 day lead time

You must be logged in to view pricing and place orders

Form Factor

ATX

Power Supply Wattage

No PSU

Motherboard Support

Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* (*Conditional Support)

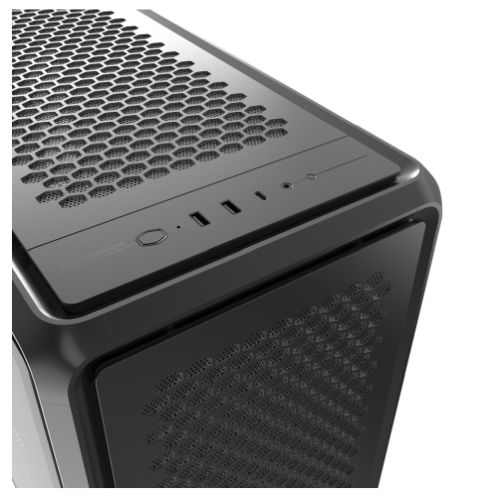

Connectors / Controls

1 x USB 3.2 Gen 2x2 Type C
2 x USB 3.2 Gen 1 Type A
1 x 3.5mm Headset Jack (Audio+Mic)

Drive Bays

2 x 2.5" / 3.5" Drive Bays (Combo)
3 x 2.5" Drive Bays

Expansion Slots

8 Expansion Slots

Cooling System

Included:
Front: 3 x SickleFlow ARGB 140mm Fans
Rear: 1 x SickleFlow ARGB 120mm Fan

Fan Mounts:
Front: 3 x 120 / 3 x 140 / 2 x 180 / 2 x 200 mm
Top: 3 x 120 / 2 x 140 / 2 x 180 / 1x 200 mm
Rear: 1 x 120 mm
Side: 3 x 120 / 3 x 140 mm

Radiator Options:
Front: Up to 420 mm (Limit: 458 mm)
Top: 120 / 140 / 240 / 280 / 360 / 420* mm
Rear: 120 mm
Side: Up to 420 mm

*Up to 420mm if I/O module is moved to the front panel

Colour

Black

Material

Exterior: SGCC Steel, Aluminium
Side Panel (Right / Left): Tempered Glass / Aluminium

Compatibility

GPU Clearance:
L: 485 mm (incl. power connector)
H: 190 mm (incl. power connector)

CPU Clearance:
190 mm

PSU Clearance:
235 mm

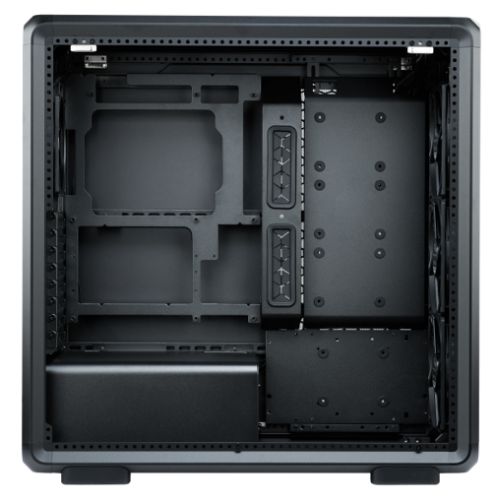

Cable Routing (Behind MB Tray):
43 mm

Weight/Dimensions

(LxWxH) 531 x 261 x 544 mm (Incl. Protrusions)
(LxWxH) 514 x 244 x 514 mm (Excl. Protrusions)
Volume (incl. Protrusions): 73.6L

Additional Features

FreeForm 2.0 Exo-Structure for Flexible Configuration Options
GPU Support Bracket included
Dust Filters: Top, Front, Bottom, Right Side Panel
Tool-Free Panel Removal

See Overview for more details

Package Weight

25.0000 kg

Warranty

2 Years

Manufacturer Link

Click here for more details from the manufacturer
