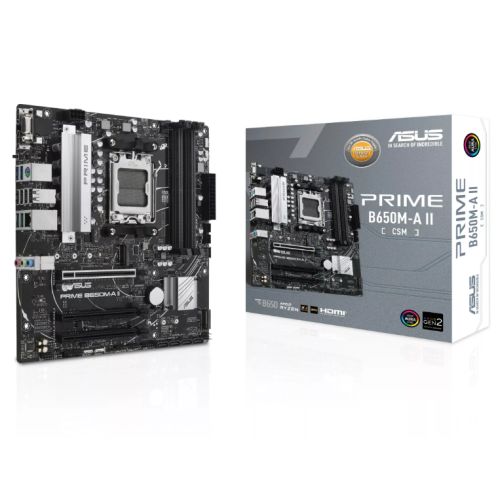

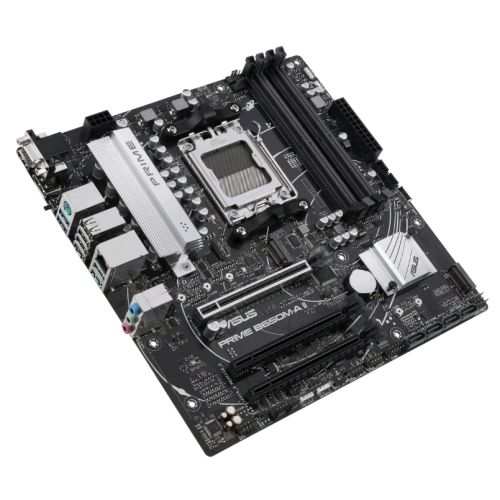

Asus PRIME B650M-A II-CSM - Corporate Stable Model, AMD B650, AM5, Micro ATX, 4 DDR5, VGA, HDMI, DP, 2.5G LAN, 2x M.2

+ click images to enlarge

Stock Code

AUMBB650MA2PRCSM

Manufacturer

ASUS

Manufacturer Code

90MB1EH0-M0EAYC

EAN Number

4711387025543

Printable Version

10 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

AMD AM5

Chipset

AMD B650

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
ECC and Non-ECC, Un-buffered Memory
Supports AMD EXPO
OptiMem II

RAM Slots

4 x DIMM

RAM Speeds

Up to 7600+(OC)

Maximum Memory

192GB

Graphics

Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports

1 x VGA
1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 4.0 x16 (supports x16 mode)
2 x PCIe 4.0 x16 (support x1 mode)
*Specifications may vary between CPU types

Storage

4 x SATA III
2 x M.2

Ryzen 9000 & 7000 Series CPUs:
M.2_1 (242/2260/2280) - PCIe 5.0 x4
M.2_2 (2242/2260/2280) - PCIe 4.0 x4

Ryzen 8000 Series CPUs:
M.2_1 (2242/2260/2280) - PCIe 4.0 x4
M.2_2 (2242/2260/2280) - PCIe 4.0 x4

RAID

AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Wireless

LAN

2.5GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
2 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0

Front:
1 x USB 3.2 Gen1 USB Type-C
2 x USB 3.2 Gen1
4 x USB 2.0

Back Panel I/O Ports

2 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x DisplayPort
1 x VGA
1 x HDMI
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
3 x Addressable Gen2
1 x Aura RGB

1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Accessories

2 x SATA 6Gb/s cables
1 x I/O Shield
1 x Screw Package for M.2 SSD
1 x ACC Express Activation Key Card
1 x User guide

Additional Features

See Overview

Package Type

Retail

Package Weight

To be confirmed

Warranty

3 years
