Networking > Range Ext. / Access Points

TP-LINK (EAP668-OUTDOOR HD) Omada AX3600 Indoor/Outdoor WiFi 6 Access Point, Dual Band, Up to 1024 Devices, 10G SFP+, PoE, Omada Mesh

+ click images to enlarge

Stock Code

AP-3600TPEAP668OUTDOORHD

Manufacturer

TP-LINK

Manufacturer Code

EAP668-OUTDOOR HD

EAN Number

1210002602587

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Primary Function

Access Point

Bands

Dual Band

Wi-Fi Rating

AX3600

Max Single Band Wi-Fi Rate

2402 Mbps

Max Wired Transfer Rate

10 Gbps

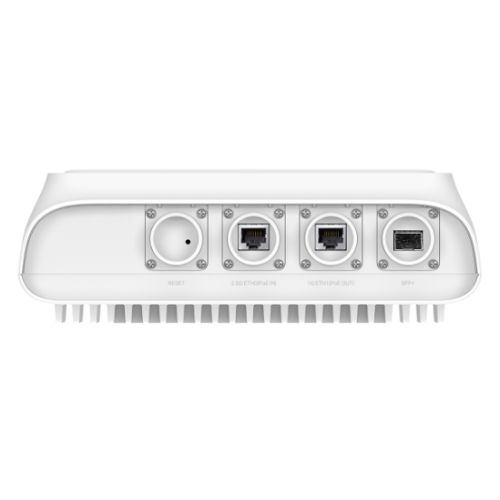

Interface(s)

1 x 2.5G Ethernet
1 x Gigabit Ethernet
1 x 10G SFP+

Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax

Antenna(s)

4 x External High-gain Detachable Omni Antennas
2.4 GHz: 6.0 dBi
5 GHz: 6.0 dBi

Protection

6KV Lightning Protection

Button(s)

Reset

Power Supply

802.3at/bt PoE

Power Consumption

802.3bt:
EU: 20.2W (bt type3: af PSE out; bt type4: at PSE out)

802.3at:
EU: 20.2W (PSE disabled)

Note: PoE out power not included. The PoE-out feature requires 802.3bt PoE input.

Dimensions

240 x 80 x 312 mm (excluding antennas, waterproofing kit, and mounting kit)

Suitable for Outdoor

Yes (Outdoor)

Frequency

2.4 GHz: Up to 1148 Mbps
5 GHz: Up to 2402 Mbps

EIRP

CE: < 20 dBm (2.4 GHz, EIRP); < 23dBm (5 GHz, band1&band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP);

Wireless Functions

1024-QAM
Mesh
Seamless Roaming(802.11k/v/r)
Enable/Disable Wireless Radio
Enable/Disable SSID Broadcast
Guest Network
Automatic Channel Assignment (Adjust transmit Power on dBm)
Transmit Power Control
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDs:16 (8 for each band)
MU-MIMO (4 x 4 MU-MIMO DL/UL)
UL/DL OFDMA
Wireless Statistics
Wireless Schedule
Reboot Schedule
RADIUS Accounting
MAC Authentication
Static IP/Dynamic IP

Security

VLAN
Access Control
Rogue AP Detection
Captive Portal Authentication
Maximum number of MAC Filter: 4,000
Wireless Isolation between Clients
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Management

Omada App
Restore & Backup
Firmware update via Web
NTP
Centralized Management
Cloud Access
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP v1, v2c, v3
SSH
Web-based Management

Additional Features

Bluetooth
Wall/pole mounting (kits included)
Concurrent Clients: 1,000+

Environment

IP68-rated weatherproof enclosure
6 kV lightning protection

Operating Temperature: -40–70°C
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents

EAP668-Outdoor HD
4 x External Dual-Band Omni Antennas
Installation Guide
Mounting Kit
Waterproof Kit

Package Type

Retail

Package Weight

5.5900 kg

Warranty

2 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
