Networking > Range Ext. / Access Points

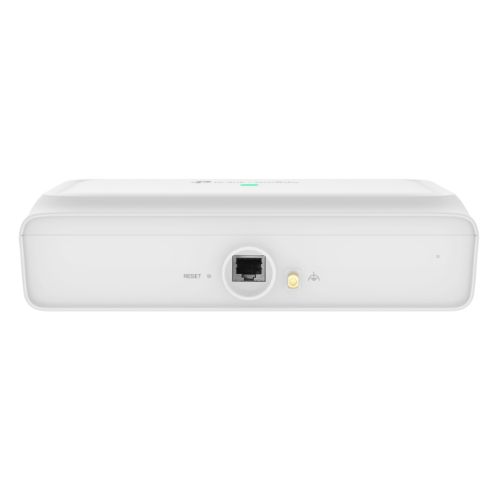

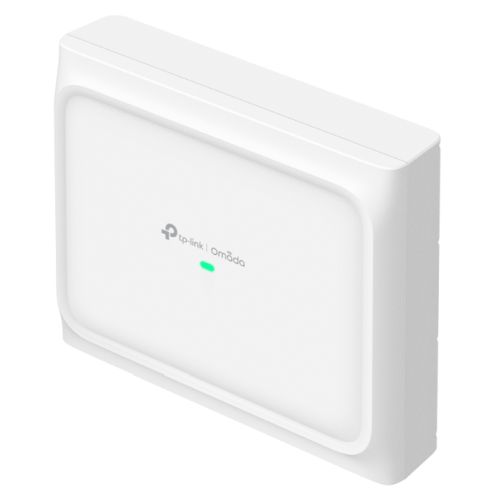

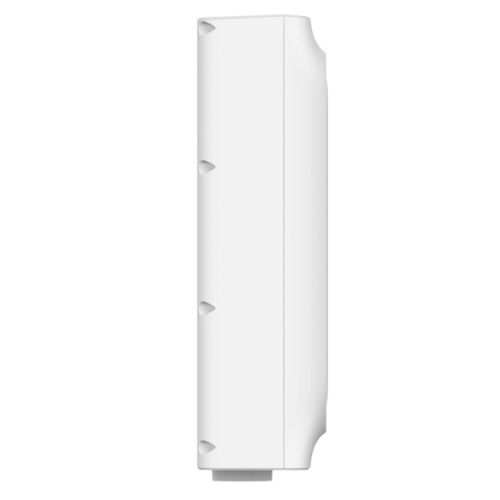

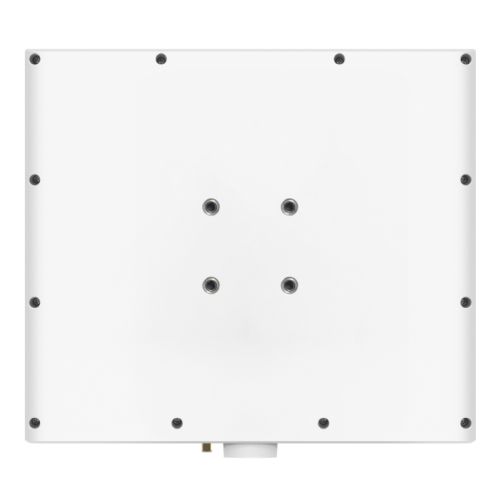

TP-LINK (EAP650 D120-OUTDOOR) Omada AX3000 Indoor/Outdoor Wi-Fi 6 Access Point, Directional Ultra-Range Coverage, PoE, Mesh Technology
+ click images to enlarge
Stock Code
AP-3000TPEAP650D120-OUT
Manufacturer
Manufacturer Code
EAP650 D120-OUTDOOR
EAN Number
1210002612722
17 Available
You must be logged in to view pricing and place orders
Primary Function
Access Point
Bands
Dual Band
Wi-Fi Rating
AX3000
Max Single Band Wi-Fi Rate
2402 Mbps
Max Wired Transfer Rate
10/100/1000 Mbps

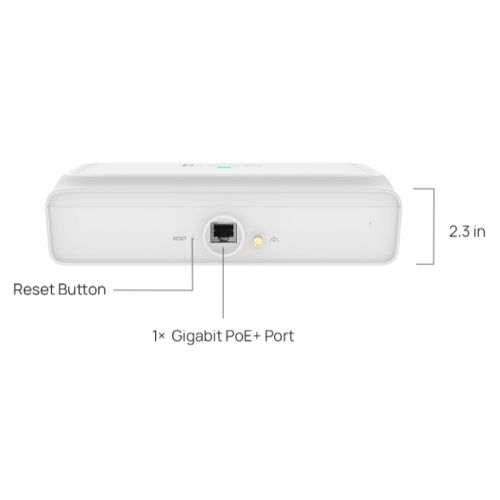

Interface(s)
1 x Gigabit Ethernet (RJ-45)
supports 802.3at PoE or 48V Passive PoE
supports 802.3at PoE or 48V Passive PoE
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax
Antenna(s)
Built-in Directional Antennas:
2.4 GHz: 2x 8 dBi
5 GHz: 2x 10 dBi
Beamwidth: 120° Horizontal; 30° Vertical
2.4 GHz: 2x 8 dBi
5 GHz: 2x 10 dBi
Beamwidth: 120° Horizontal; 30° Vertical
Button(s)
Reset
Power Supply
802.3at PoE
48V Passive PoE
48V Passive PoE
Power Consumption
12.5W (802.3at PoE or Passive PoE)

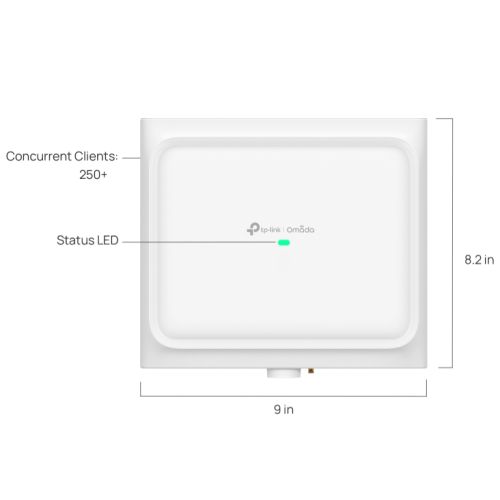

Dimensions
(WxDxH) 207.5 x 58 x 230 mm
Weatherproof
Yes (Weatherproof)
Frequency
2.4 GHz & 5 GHz
EIRP
CE: 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP)
Wireless Functions
1024-QAM
DL/UL OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 on each band)
Enable/Disable Wireless Radio
Enable/Disable SSID Broadcast
Guest Network
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
2 x 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO
Omada Mesh
Seamless Roaming(802.11k/v/r)
Band Steering
Load Balance
Airtime Fairness
Beamforming
RADIUS Accounting
MAC Authentication
Reboot Schedule
DL/UL OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 on each band)
Enable/Disable Wireless Radio
Enable/Disable SSID Broadcast
Guest Network
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
2 x 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO
Omada Mesh
Seamless Roaming(802.11k/v/r)
Band Steering
Load Balance
Airtime Fairness
Beamforming
RADIUS Accounting
MAC Authentication
Reboot Schedule
Wireless Schedule
Wireless Statistics
Static IP/Dynamic IP
Wireless Statistics
Static IP/Dynamic IP
Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Wireless Range

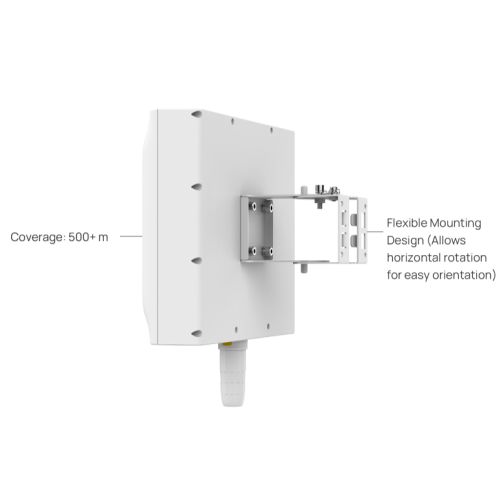

Directional Ultra-Range Coverage
Quality of Service
QoS (WMM)
Management
Omada App
Restore & Backup
NTP
Centralized Management - Omada controller/app
Cloud Access - requires Omada controller
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP: v1, v2c
System Logging Local/Remote Syslog
SSH
Web-based Management
Multi-site Management
Zero-Touch Provisioning - requires Omada Cloud-Based controller
Restore & Backup
NTP
Centralized Management - Omada controller/app
Cloud Access - requires Omada controller
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP: v1, v2c
System Logging Local/Remote Syslog
SSH
Web-based Management
Multi-site Management
Zero-Touch Provisioning - requires Omada Cloud-Based controller
Additional Features
See Overview
Environment
Operating Temperature: -30–70°C (-22–158°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

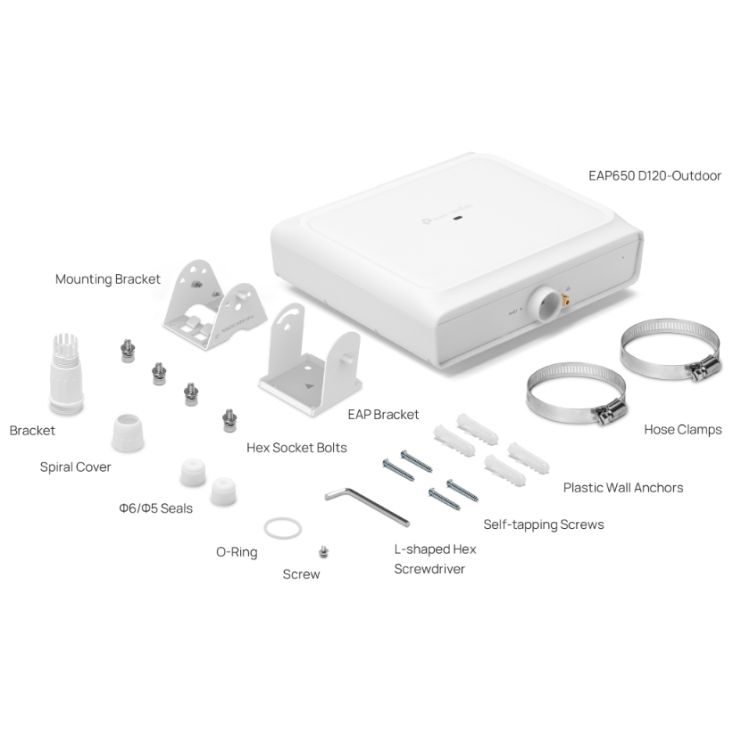

Package Contents
Access Point EAP650 D120-Outdoor
Mounting Kits
Installation Guide
Mounting Kits
Installation Guide
Package Type
Retail
Package Weight
2.1000 kg
Warranty
2 Years
Full Box Quantity
6
Manufacturer Link
