Components > Graphics Cards

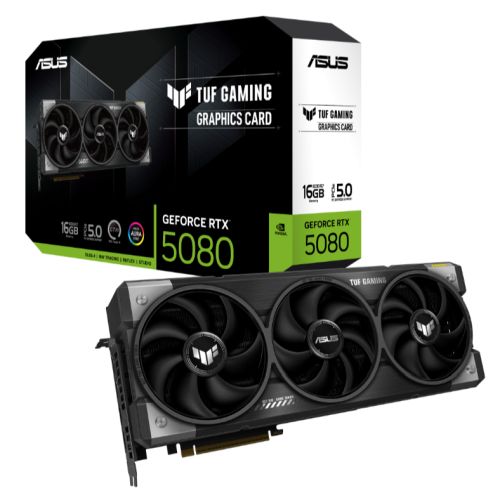

Asus TUF GAMING RTX5080, PCIe5, 16GB DDR7, 2 HDMI, 3 DP, 2640MHz Clock, RGB Lighting

+ click images to enlarge

Stock Code

NVRTX508016ASTUF

Manufacturer

ASUS

Manufacturer Code

90YV0M31-M0NA00

EAN Number

4711387868348

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Chipset Manufacturer

Nvidia

Interface

PCI Express 5.0

Graphics Chipset

Nvidia RTX 5080

Memory Size

16GB

Memory Type

DDR7

Memory Interface

256-bit

Engine Clock

OC mode: 2640 MHz
Default mode: 2617 MHz (Boost Clock)

Memory Clock

30 Gbps

AI Performance

1801 TOPS

CUDA Cores / Stream Processors

10752 CUDA Cores

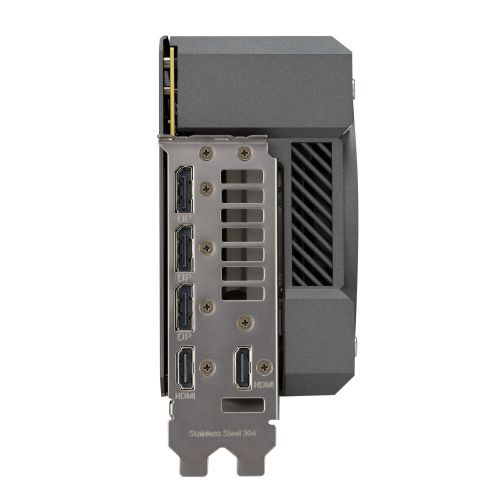

Outputs

2 x HDMI 2.1b
3 x DisplayPort 2.1b

HDCP Support

Yes

Resolution

Digital Max Resolution: 7680 x 4320

Multi-GPU Support

None

Max Display Support

Cooling

Large Vapor Chamber
Axial-Tech Fans
Dual-ball Fan Bearings
Phase-Change GPU Thermal Pad
MaxContact Design
Vented Exoskeleton

PSU Requirements

850W or greater recommended

Connectors Required

1 x 16-pin power

Software

ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver

Additional Features

See Overview

Dimensions

348 x 146 x 72 mm

Slot Size

3.6 Slot

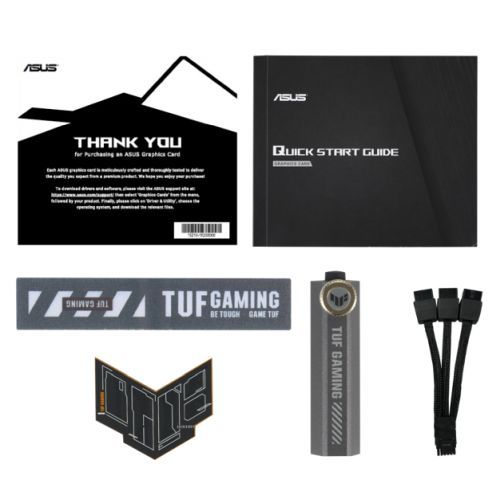

Accessories

1 x Speedsetup Manual
1 x TUF Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x TUF Magnet
1 x TUF Gaming Certificate
1 x Thank You Card
1 x Adapter Cable (1 to 3)

Package Type

Retail

Package Weight

3.0000 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
