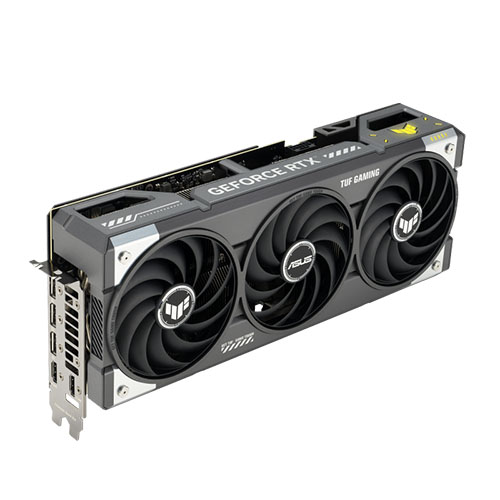

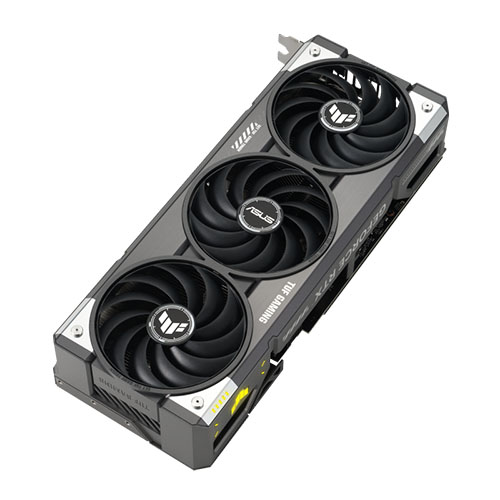

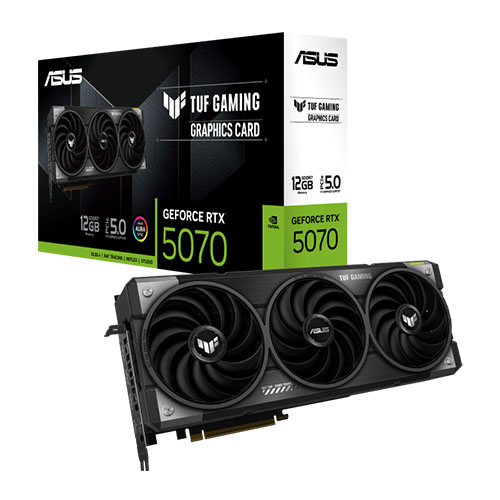

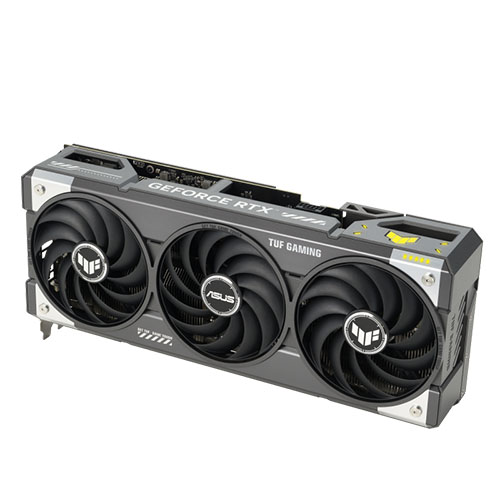

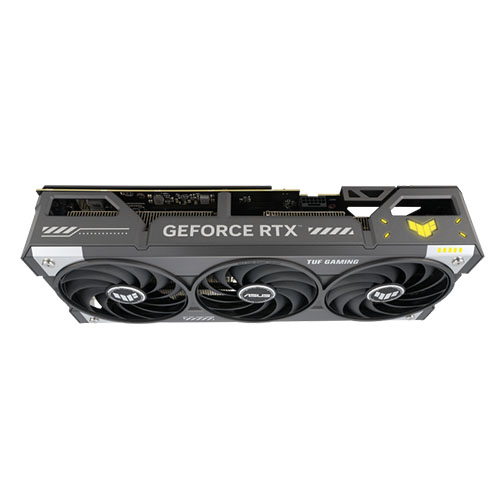

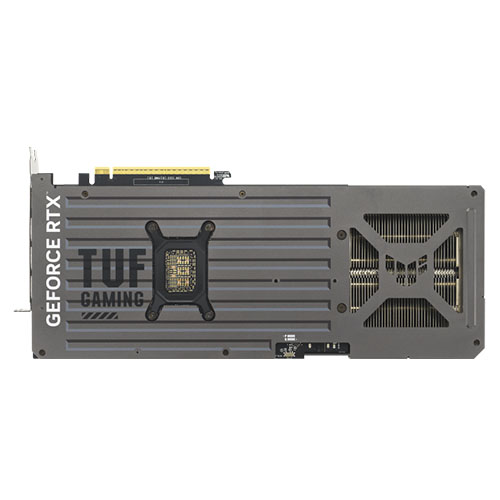

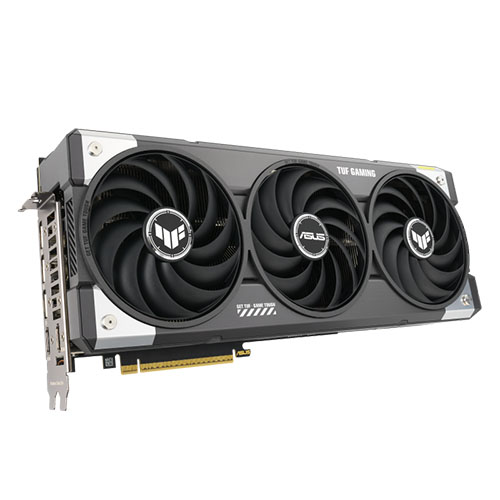

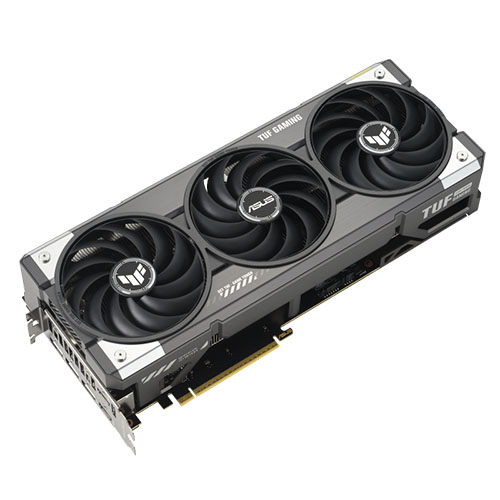

Asus TUF GAMING RTX5070, PCIe5, 12GB DDR7, 2 HDMI, 3 DP, 2542MHz Clock, RGB Lighting

+ click images to enlarge

Stock Code

NVRTX507012ASTUF

Manufacturer

ASUS

Manufacturer Code

90YV0LZ1-M0NA00

EAN Number

4711387849064

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Chipset Manufacturer

Nvidia

Interface

PCI Express 5.0

Graphics Chipset

Nvidia RTX 5070

Memory Size

12GB

Memory Type

DDR7

Memory Interface

192-bit

Engine Clock

OC mode: 2542MHz
Default mode: 2512MHz (Boost Clock)

Memory Clock

28 Gbps

AI Performance

988 TOPS

CUDA Cores / Stream Processors

6144 CUDA Cores

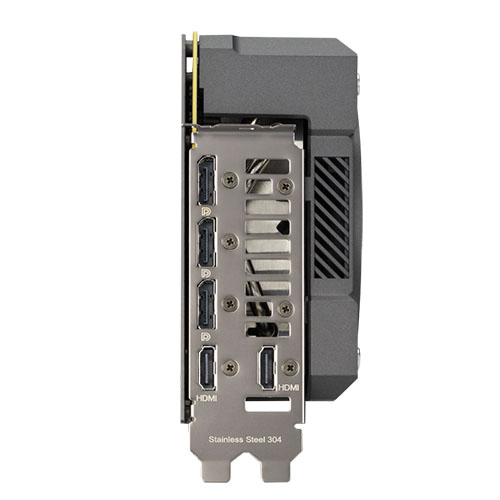

Outputs

2 x HDMI 2.1b
3 x DisplayPort 2.1b

HDCP Support

Yes

Resolution

Digital Max Resolution: 7680 x 4320

Multi-GPU Support

None

Max Display Support

Cooling

Axial-Tech Fans
Dual-ball Fan Bearings
Phase-Change GPU Thermal Pad
MaxContact Design
Vented Exoskeleton

PSU Requirements

750W or greater recommended

Connectors Required

1 x 16-pin power

Software

ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver

Additional Features

See Overview

Dimensions

329 x 140 x 62.5 mm

Slot Size

3.125 Slot

Accessories

1 x Speedsetup Manual
1 x TUF Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x TUF Magnet
1 x TUF Gaming Certificate
1 x Thank You Card
1 x Adapter Cable (1 to 2)

Package Type

Retail

Package Weight

2.3000 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
